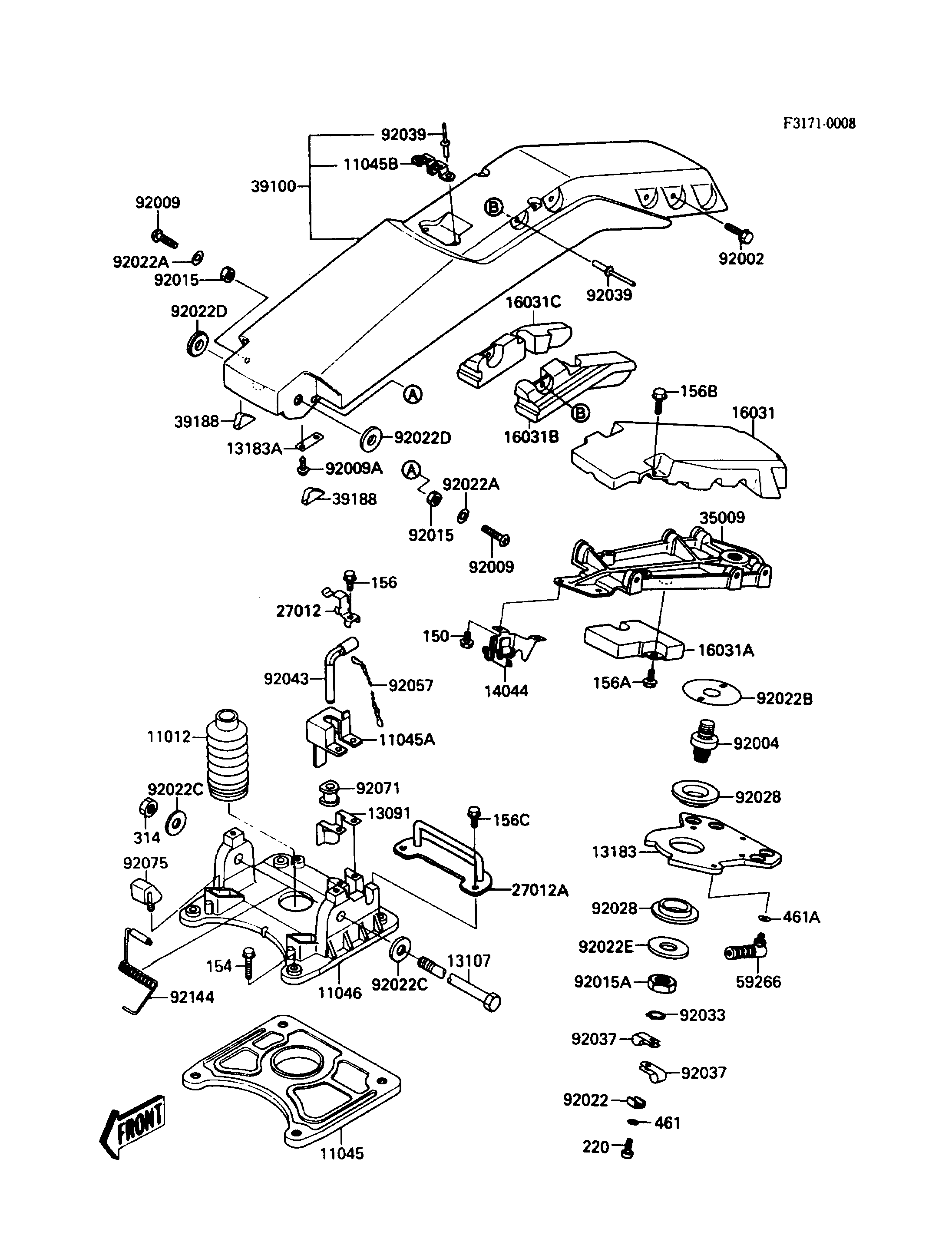

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP. | 11012 | 59176-514 | 1 | ||
BRACKET,BACK-UP PLATE | 11045 | 11045-3722 | 1 | ||
BRACKET,POLE STOPPER | 11045A | 11045-3728 | 1 | ||
BRACKET,HANDLE POLE PAD | 11045B | 11045-3733 | 1 | ||
BRACKET,PIVOT SHAFT | 11046 | 11046-3715 | 1 | ||
HOLDER | 13091 | 13091-3717 | 1 | ||
SHAFT,PIVOT | 13107 | 13107-3709 | 1 | ||
PLATE,HANDLEBAR | 13183 | 13183-3709 | 1 | ||
PLATE | 13183A | 13183-3720 | 1 | ||
HOLDER-CABLE | 14044 | 14044-3001 | 1 | ||
FLOAT | 16031 | 16031-3715 | 1 | ||
FLOAT,CNT | 16031A | 16031-3737 | 1 | ||
FLOAT,LH | 16031B | 16031-3738 | 1 | ||
FLOAT,RH | 16031C | 16031-3752 | 1 | ||
HOOK | 27012 | 27012-3717 | 1 | ||
HOOK,ENGINE HOOD | 27012A | 27012-3733 | 1 | ||
BRACE | 35009 | 35009-3702 | 1 | ||
POLE-COMP-HANDLE,JET WHITE | 39100 | 39100-3704-8C | 1 | ||
TAPE,(WHITE) | 39188 | 39188-3702 | 2 | ||
JOINT-BALL | 59266 | 59266-3701 | 1 | ||
BOLT,6X12 | 92002 | 92002-3760 | 6 | ||
STUD | 92004 | 92004-3713 | 1 | ||
SCREW | 92009 | 92009-3738 | 2 | ||
SCREW | 92009A | 92011-562 | 2 | ||
NUT | 92015 | 92015-3015 | 2 | ||
NUT,18MM | 92015A | 92015-3746 | 1 | ||
WASHER,CLAMP | 92022 | 92022-3014 | 1 | ||
WASHER | 92022A | 92022-3042 | 2 | ||
WASHER | 92022B | 92022-3716 | 1 | ||
WASHER,15X34X2.0 | 92022C | 92022-3738 | 2 | ||
WASHER,15X36X4.5 | 92022D | 92022-3741 | 2 | ||
WASHER | 92022E | 92022-571 | 1 | ||
BUSHING | 92028 | 92028-3726 | 2 | ||
RING-SNAP,15MM | 92033 | 92033-3710 | 1 | ||
CLAMP,LEAD WIRE | 92037 | 92037-3007 | 2 | ||
RIVET | 92039 | 92039-3701 | 4 | ||
PIN,POLE STOPPER | 92043 | 92043-3714 | 1 | ||
CHAIN,COVER,L=100 | 92057 | 92057-3704 | 1 | ||
GROMMET | 92071 | 92071-3752 | 1 | ||
DAMPER,POLE STOPPER | 92075 | 92075-3742 | 2 | ||
SPRING,HANDLE POLE | 92144 | 92144-3716 | 1 | ||
BOLT-WS,6X12 | 150 | 150R0612 | 2 | ||
BOLT-WP-SMALL,8X30 | 154 | 154R0830 | 4 | ||
BOLT-WP,5X10 | 156 | 156R0510 | 2 | ||
BOLT-WP,5X12 | 156A | 156R0512 | 2 | ||
BOLT-WP,5X14 | 156B | 156R0514 | 2 | ||
BOLT-WP,6X12 | 156C | 156R0612 | 2 | ||
SCREW-PAN-CROS | 220 | 220R0516 | 1 | ||
NUT-HEX-FINE,14MM | 314 | 314R1400 | 1 | ||
WASHER-SPRING,5MM | 461 | 461S0500 | 1 | ||
WASHER-SPRING,6MM | 461A | 461S0600 | 1 |
