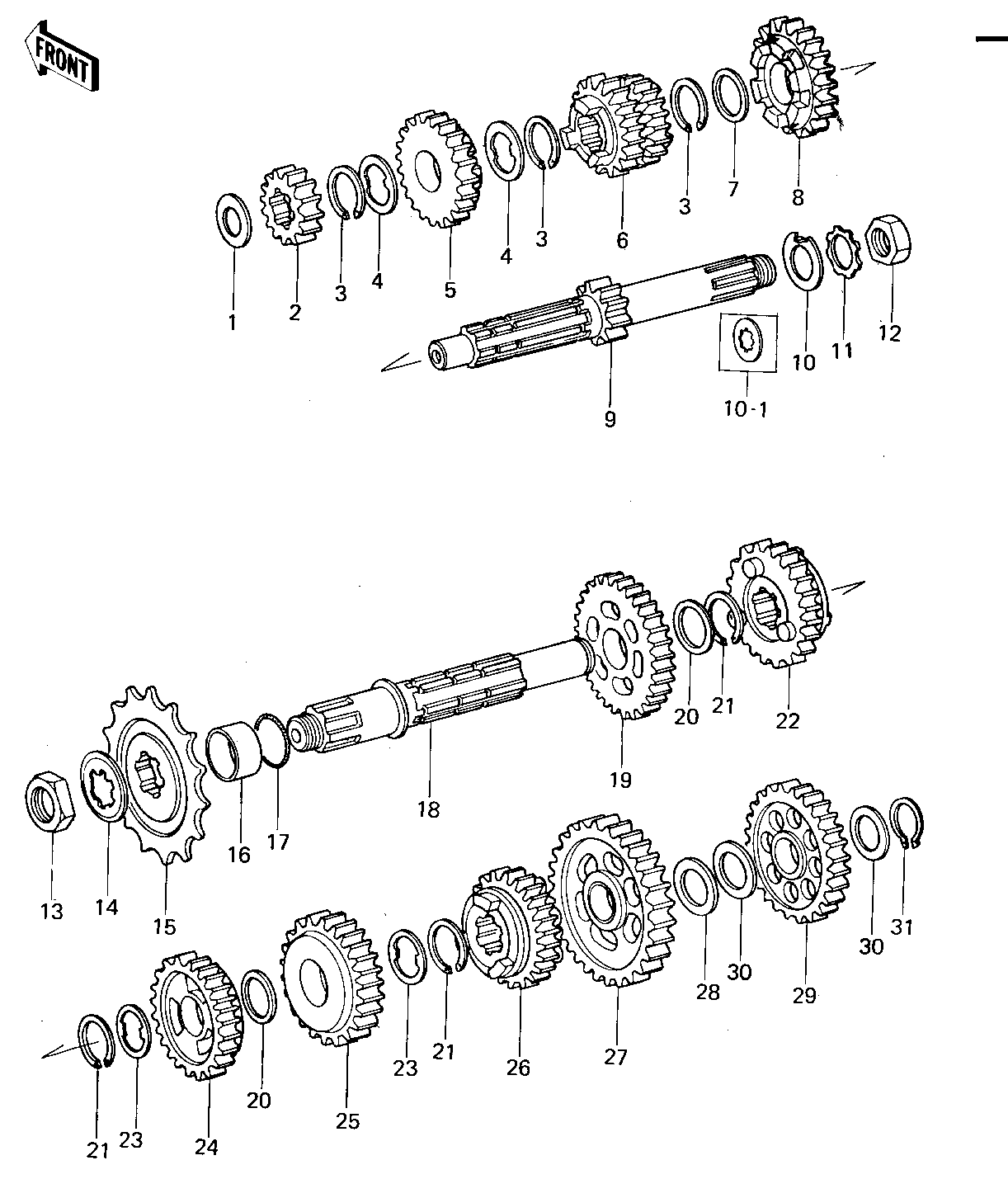

1979 KX125-A5 - TRANSMISSION

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER,THRUST,15MM 1 92022-279 O.D. = 25 M/M
2ND GEAR,DRIVE,14T 2 13129-1063 KX125-A4
2NDGEAR,DRIVE,SHAFT 2 13129-1119 KX125-A5~
CIRCLIP,18MM 3 92033-029
WASHER,LOCK 4 92024-059 O.D. = 25 M/M
TOP GEAR,DRIVE,22T 5 13129-1066 22T
3RD & 4TH GEAR,DRIVE 6 13129-1064 KX125-A4
3RD&4THGEAR,DRIVE,SFT 6 13129-1120 KX125-A5~
WASHER 7 92022-252 O.D. = 25.5 M/M
5TH GER,DRIVE,21T 8 13129-1065 21T
SHAFT,DRIVE 9 13127-1005 KX125-A4
SHAFT,DRIVE 9 13127-1015 KX125-A5~
WASHER,16.8X32X1.6 10 92022-1277 KX125-A4
WASHER,LOCK 10-1 92022-1124 KX125-A5~
WASHER,LOCK,16MM 11 464H1600
NUT 16MM 12 92016-036
NUT,LOCK,18M/M 13 92015-1029
WASHER,LOCK 14 92022-1047
ENGINE SPROCKET,14T 15 13144-1007 S.T.D.
ENGINE SPROCKET,1ST 15 13144-054 OPTION
COLLAR 16 92027-1068
"0" RING 17 92055-022
SHAFT,OUTPUT 18 13128-1021 KX125-A4
SHAFT,OUTPUT 18 13128-1021 KX125-A5~
2ND GEAR,OUTPUT,24T 19 13129-1068 KX125-A4
2ND GEAR,OUTPUT SHAFT 19 13129-1122 KX125-A5~
WASHER 20 92022-252 O.D. = 25.5 M/M
CIRCLIP,18MM 21 92033-029
TOP GEAR,OUTPUT,20T 22 13129-1072 20T
WASHER,LOCK 23 92024-059 O.D. = 25 M/M
4TH GEAR,OUTPUT,23T 24 13129-1070 KX125-A4
4THGEAR,OUTPUT SHAFT 24 13129-1124 KX125-A5~
3RD GEAR,OUTPUT,22T 25 13129-1069 KX125-A4
3RD GEAR,OUTPUT SHAFT 25 13129-1123 KX125-A5~
5TH GEAR,OUTPUT,21T 26 13129-1071 21T
LOW GEAR,OUTPUT,27T 27 13129-1067 KX125-A4
LOW GEAR,OUTPUT SHAFT 27 13129-1121 KX125-A5~
WASHER,PLAIN 28 92022-1048 O.D. = 25 M/M
IDLE GEAR,KICKSTARTER 29 59051-1009 31T
WASHER,PLAIN 30 92022-1045 O.D. = 25 M/M
CIRCLIP 15MM 31 480J1500
