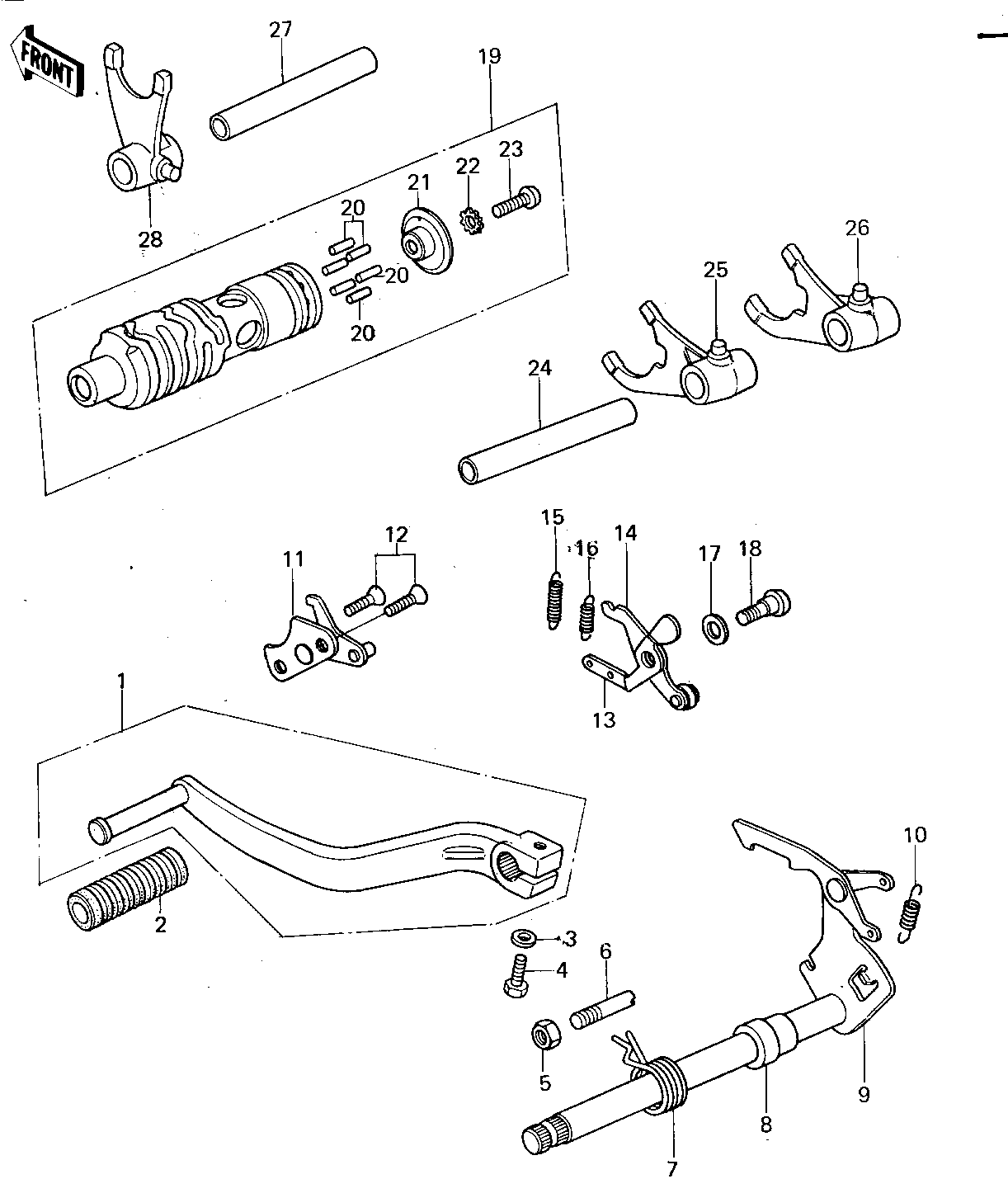

1979 KX125-A5 - GEAR CHANGE MECHANISM ('78-'79 KX125-A4/

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PEDAL ASSY,GEAR CHNGE 1 13156-1013
DAMPER,CHANGE PEDAL 2 92160-1108
WASHER PLAIN 6MM 3 410B0600
BOLT-UPSET 4 112G0622
NUT 8MM 5 318B0800 KX125-A4
NUT 8MM 5 312B0800 KX125-A5~
PIN-CHANGE PEDAL 6 92043-061 KX125-A4
PIN,CHANGE PEDAL 6 92043-1056 KX125-A5~
SPRING,TENTION 7 92081-1129
SPRING,TENTION 7 92081-1129
COLLAR 8 92027-1069
LEVER-COMP-CHANGE 9 13161-1031
SPRING-CHANGE LEVER 10 92081-076
STOPPER ASSY,CHANGE 11 13244-1002 KX125-A4
STOPPER ASSY,CHANGE 11 13244-1002 KX125-A5~
SCREW CNTSNK HD 6X12 12 221B0612
LEVER A, GEAR CHANGE 13 13168-1012
LEVER B, GEAR CHANGE 14 13236-1002
SPRING 15 92081-119
SPRING,GEAR CHANG LVR 16 92081-1061
WASHER,PLAIN 17 92022-1053 O.D. = 14 M/M
SCREW-PAN HEAD 18 92011-023
DRUM ASSY-CHANGE 19 13239-1025 KX125-A4
DRUM ASSY-CHANGE 19 13239-1025 KX125-A5~
PIN,DOWEL 20 92043-1028 KX125-A4
PIN GEAR CHANGE DRUM 20 92042-014 KX125-A5~
PLTE,SHIFT DRUM PIN 21 13142-017 KX125-A4
HOLDER,GEAR CHANGE DR 21 13091-1052 KX125-A5~
WASHER LOCK 6MM 22 464H0600 NOT USE FOR P/N 13239-1025
SCREW PAN HEAD 6X14 23 220B0614 KX125-A4
SCREW CNTSNK HD 6X20 23 221B0620 KX125-A5~
ROD,SHIFT,90M/M 24 49047-1001
SHIFT FORK 25 13140-1011
SHIFT FORK 26 13140-1012
ROD,SHIFT,82M/M 27 49047-1004
SHIFT FORK 28 13140-1010
