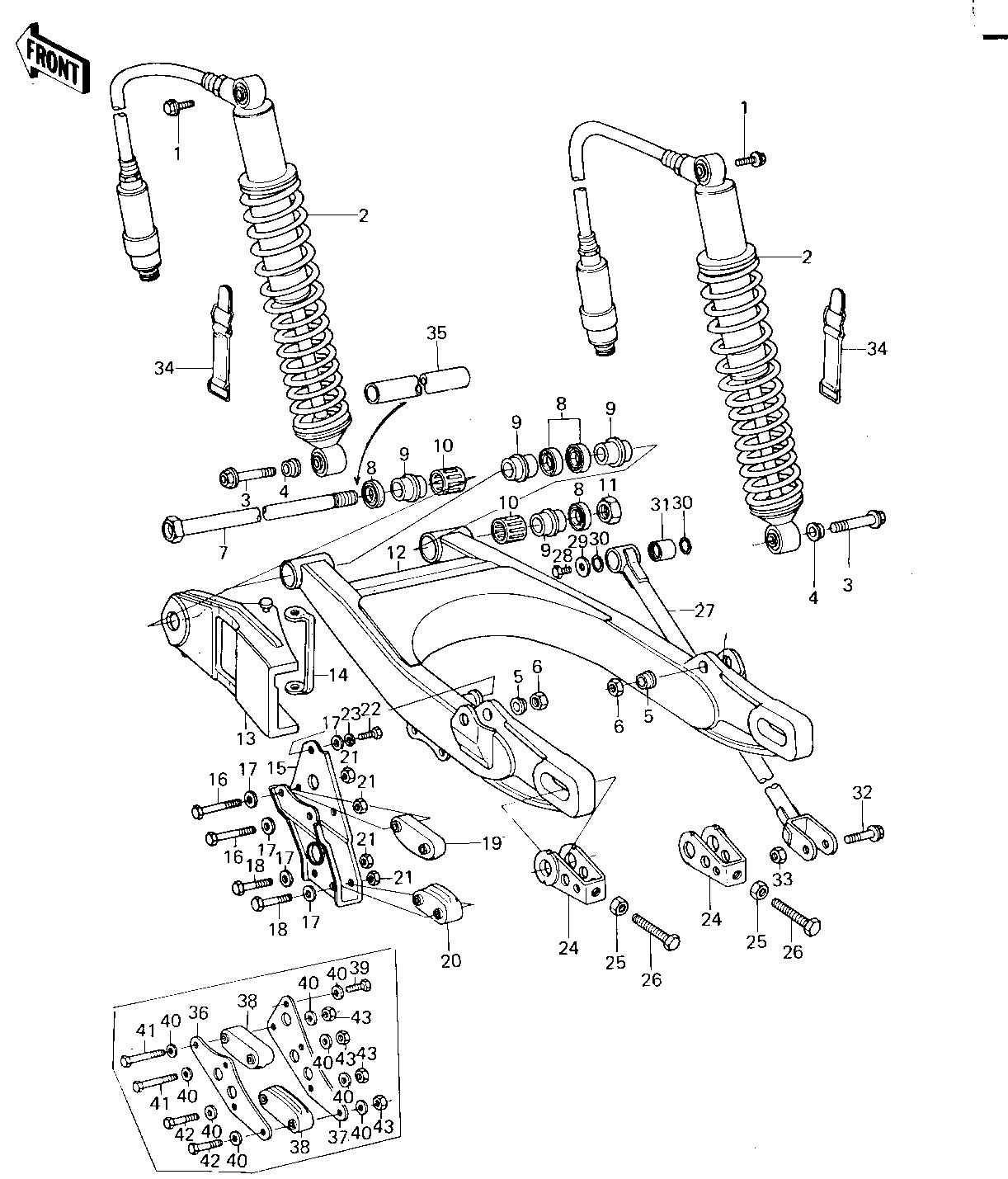

1978 KX125-A4 - SWING ARM/SHOCK ABSORBERS ('78-'79 KX125

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,HEX HEAD,6X10 1 92001-1034 2 6X10
SHOCK ABSBR RR 2 45014-1021 2 KX125-A4
SHOCK ABSBR RR 2 45014-1030 2 KX125-A5
BOLT,HEX HEAD,10X48 3 92001-1029 2 10X28
COLLAR 4 92027-1029 2 L=5 M/M
COLLAR 5 92027-1030 2 L=11 M/M
NUT,LOCK,10MM 6 92019-021 2
SHAFT,SWING ARM,PIVOT 7 33032-1001 1 KX125-A4
SHAFT,SWING ARM PIVOT 7 33032-1010 1 KX125-A5
OIL SEAL 8 92049-1011 4
SLEEVE,SWING ARM 9 42036-1026 4
BEARING,NEEDLE 10 92046-1001 2
NUT-LOCK,14MM 11 92019-011 1
ARM,SWING 12 33001-1010 1 KX125-A4
ARM,SWING 12 33001-1030 1 KX125-A5
GUIDE CHAIN,FRONT 13 12053-1017 1
BAND 14 92072-1018 1
GUARD,CHAIN 15 55020-1015 1 KX125-A4
BOLT,HEX HEAD,6X50 16 110G0650 2 KX125-A4
WASHER PLAIN 6MM 17 411B0600 5 KX125-A4
BOLT 6X35 18 110R0635 2 KX125-A4
GUIDE,CHAIN 19 12053-1015 1 KX125-A4
GUIDE,CHAIN,REAR 20 12053-1011 1 KX125-A4
NUT 21 92019-008 4 KX125-A4
BOLT-UPSET 6X14 22 112B0614 1 KX125-A4
WASHER SPRING 6MM 23 461F0600 1 KX125-A4
ADJUSTER,CHAIN 24 33040-1005 2
NUT,8MM 25 312G0800 2 KX125-A4
NUT 8MM 25 318G0800 2 KX125-A5
BOLT,CHAIN ADJUSTER 26 92001-1027 2
ROD,TORQUE 27 43007-1003 1 KX125-A4
TORQUE LINK,RR.BRAKE 27 43007-1009 1 KX125-A5
BOLT,6X10 28 112G0610 1
WASHER,PLAIN,7MM 29 92022-228 1
"O" RING,15MM 30 670B2015 2
BUSHING,BRAKE ROD 31 92028-1023 1
BOLT,HEX HEAD,8X36 32 92001-1041 1 8X36
NUT,LOCK,8MM 33 92017-013 1
BAND,FUEL TANK 34 92072-076 2
SPACER,SWING ARM 35 92026-1014 1
GUARD,CHAIN 37 55020-1021 1 KX125-A5
GUIDE,CHAIN 38 12053-1033 2 KX125-A5
BOLT-UPSET 6X14 39 112B0614 1 KX125-A5
WASHER PLAIN 6MM 40 411B0600 9 KX125-A5
BOLT,HEX HEAD,6X50 41 110G0650 2 KX125-A5
BOLT-UPSET,6X40 42 112G0640 2 KX125-A5
NUT 43 92019-008 4 KX125-A5
