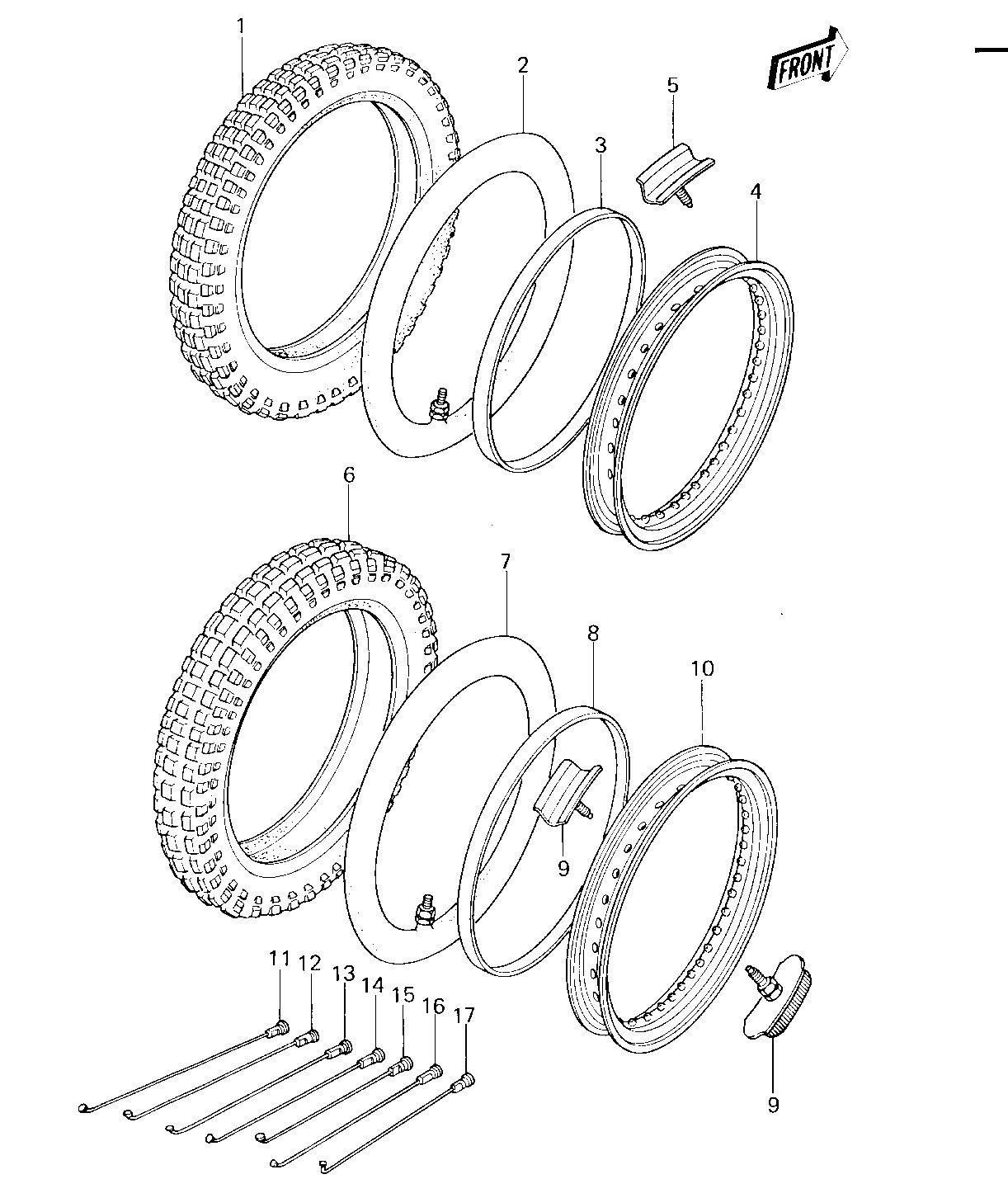

1979 KX125-A5 - WHEELS/TIRES ('78-'79 KX125-A4/A5)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
TIRE 300-21 DUN MX F | 1 | 41002-1023 | KX125-A4 | ||
TIRE 300-21 K190 F | 1 | 41002-1065 | KX125-A5 | ||
TUBE,2.75/3.70-21 | 2 | 41022-1021 | |||
BAND,RIM,3.00-21 | 3 | 41023-1001 | |||
RIM,FRONT,1.60X21E | 4 | 41025-1004 | |||
PROTECTOR,BEAD 1.60A | 5 | 41024-010 | |||
TIRE 400-18 K88 R | 6 | 41002-1028 | KX125-A4 | ||
TIRE 400-18 K190 R | 6 | 41002-1067 | KX125-A5 | ||
TUBE 350/375/410-18 | 7 | 41022-031 | |||
BAND,RIM,4.00/5.10-18 | 8 | 41023-1006 | |||
PROTECTOR,BEAD,1.85B | 9 | 41024-011 | |||
RIM,REAR,1.85X18E | 10 | 41025-1005 | |||
SPOKE-ASY,FR | 11 | 41027-1005 | 203 M/M X 101 | ||
SPOKE-ASY,FR | 12 | 41027-1006 | 229 M/M X 130 | ||
SPOKE-ASY,FR | 13 | 41028-1004 | 201 M/M X 84.5 | ||
SPOKE-ASY,RR INNER | 14 | 41027-1007 | 187 M/M X 123 | ||
SPOKE-ASY,RR INNER | 15 | 41027-1008 | 165 M/M X 106 | ||
SPOKE-ASY,RR OUTER | 16 | 41028-1005 | 184 M/M X 127 | ||
SPOKE-ASY,RR OUTER | 17 | 41028-1006 | 164 M/M X 74 |
