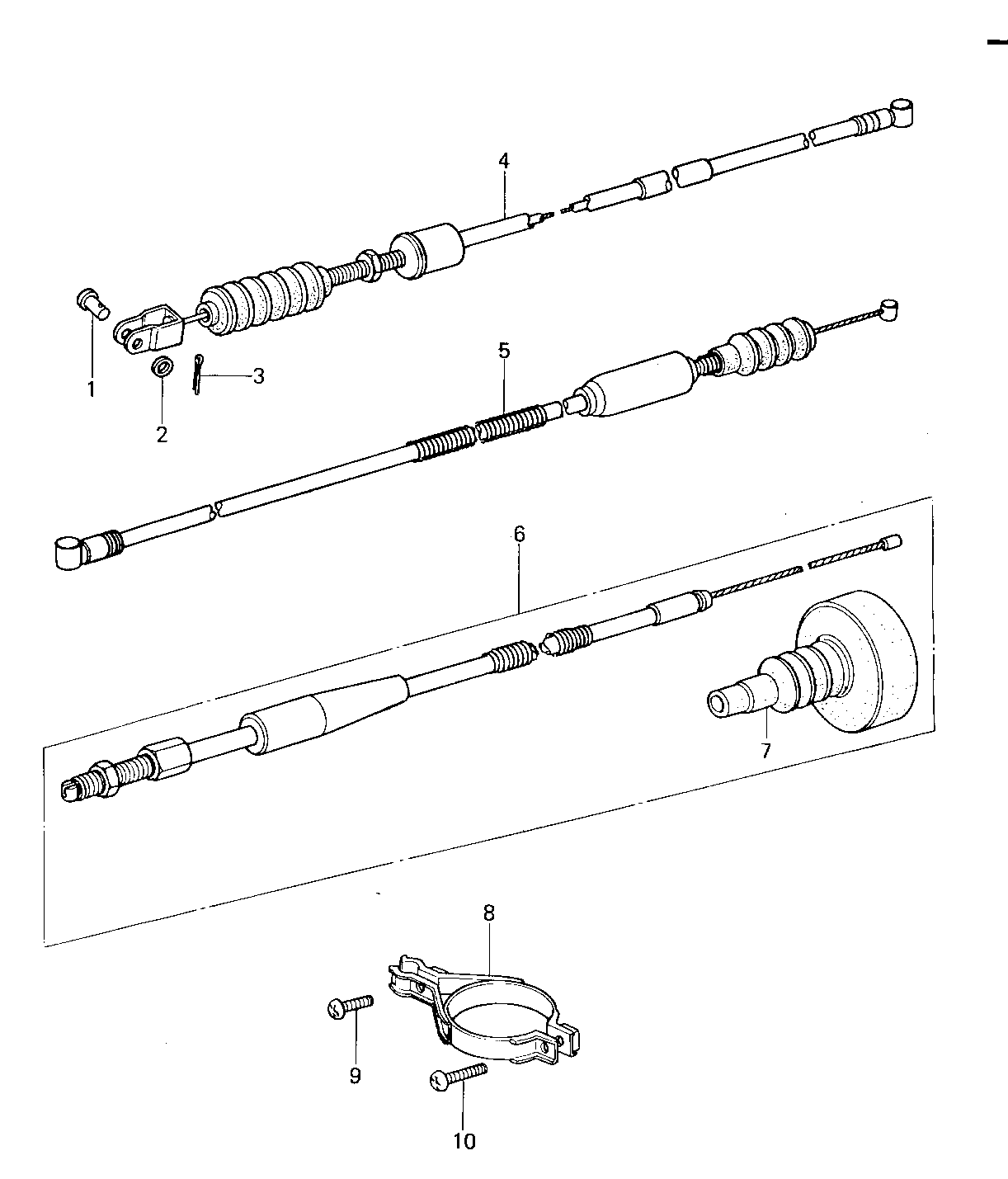

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-BRAKE ROD FITTING 1 92043-064
WASHER PLAIN 6MM 2 410B0600
PIN COTTER 2.0X15 3 550D2015
CABLE,FRONT BRAKE 4 54005-1007 KX125-A4
CABLE,FRONT BRAKE 4 54005-1016 KX125-A5~
CABLE CLUTCH 5 54011-1006
CABLE,THROTTLE 6 54012-1046 KX125-A4
CABLE,THROTTLE 6 54012-1046 KX125-A5~
BOOTS,THROTTLE CABLE 7 49006-1015
CLAMP,CABLE 8 92037-1072
SCREW-PAN-CRSOSS,4X12 9 220B0412
SCREW-PAN-CROS,5X25 10 220B0525
