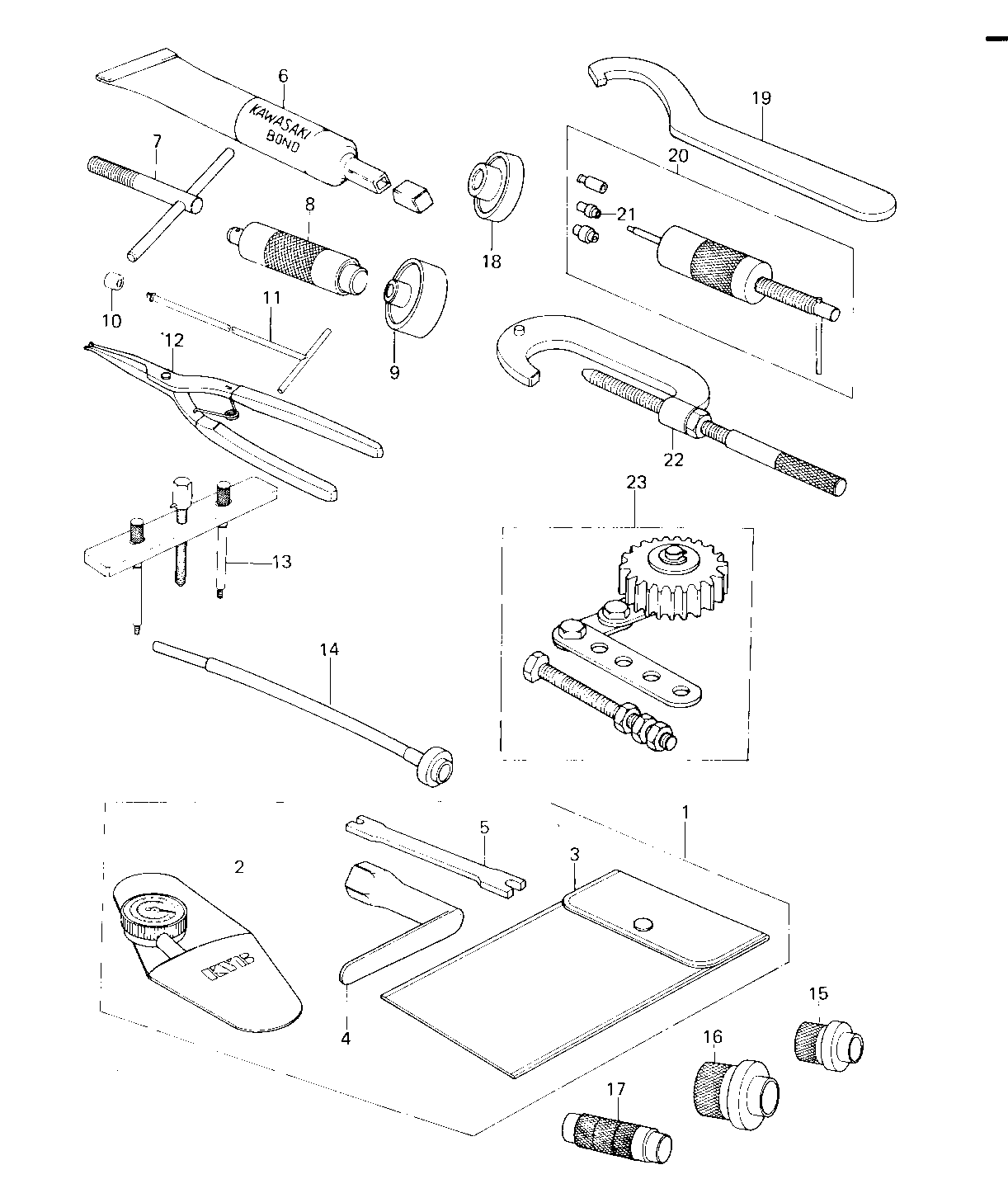

1979 KX125-A5 - OWNER TOOLS/SPECIAL SERVICE TOOLS
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
TOOL KIT | 1 | 56007-1010 | |||
GAUGE,AIR | 2 | 52005-1003 | |||
BAG,TOOL | 3 | 56008-008 | |||
WRENCH,SPARK PLUG | 4 | 92110-019 | |||
WRENCH SPOKE | 5 | 92110-1016 | |||
LIQUID GASKET | 6 | 92104-002 | 100G TUBE | ||
57001-1216 (Canada) | 7 | 57001-116 | |||
*** N.L.A.*** (Canada) | 8 | 57001-139 | |||
57001-1129 (Canada) | 9 | 57001-140 | |||
ADAPTER-FRK CYL HLDR | 10 | 57001-176 | |||
HANDLE,FORK CLY HOLDR | 11 | 57001-183 | |||
PLIERS,CIRCLIP,OUTSID | 12 | 57001-144 | |||
57001-1098 (Canada) | 13 | 57001-153 | |||
GAUGE,FUEL LEVEL | 14 | 57001-207 | |||
GUIDE,OIL SEAL | 15 | 57001-263 | |||
GUIDE,SHIFT OIL SEAL | 16 | 57001-264 | |||
57001-1129 (Canada) | 17 | 57001-286 | |||
57001-1129 (Canada) | 18 | 57001-289 | |||
57001-1100 (Canada) | 19 | 57001-321 | |||
PULLER-PISTON PIN | 20 | 57001-910 | |||
ADAPTER B, PIN PULLER | 21 | 57001-913 | |||
57001-1243 (Canada) | 22 | 57001-307 | |||
HOLDER,GEAR | 23 | 57001-1015 |
