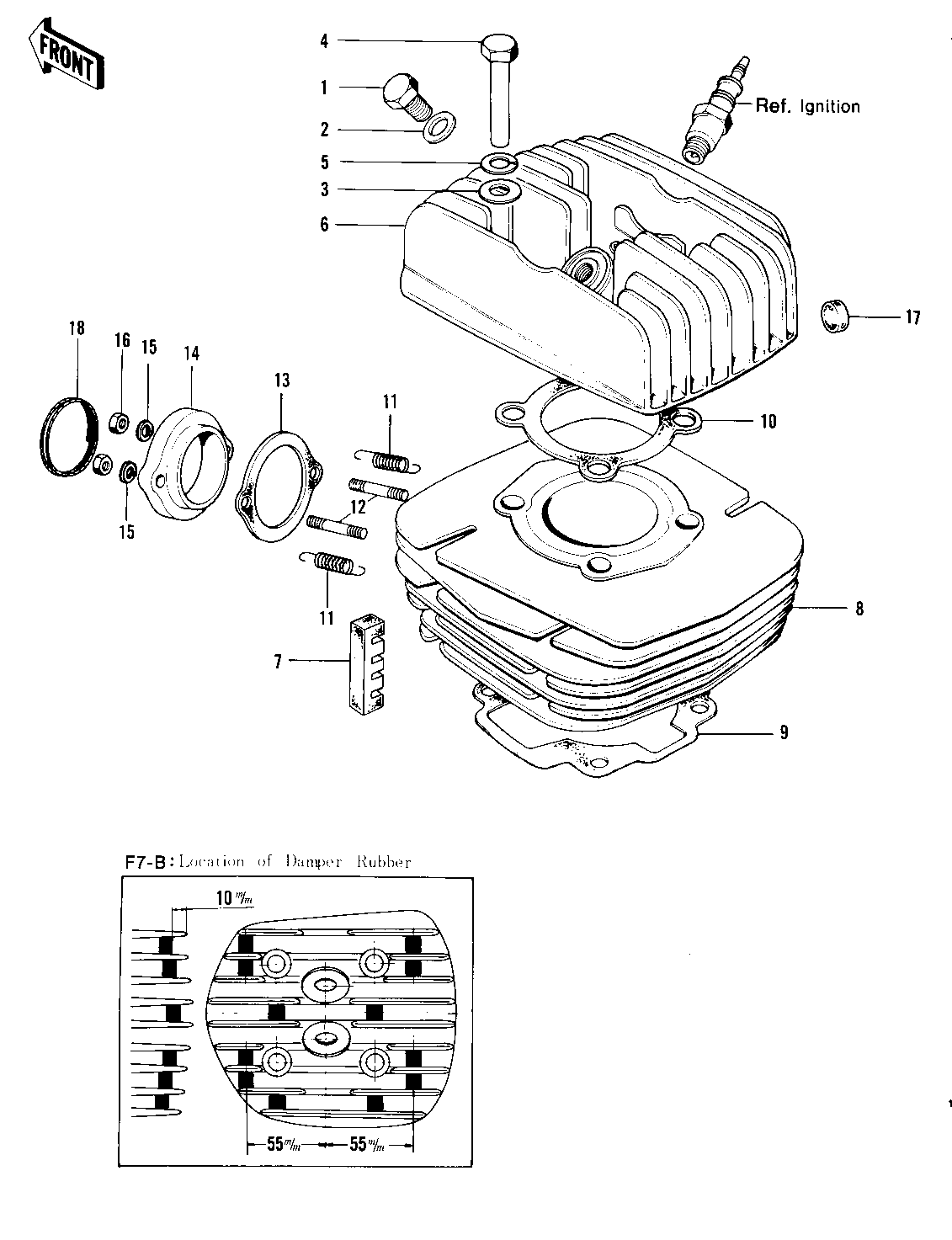

1971 F7 - CYLINDER HEAD/CYLINDER ('71-'73 F7/F7-A/
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PLUG-CYLINDER HEAD | 1 | 92067-005 | 1 | ||
| GASKET-CYL HEAD PLUG | 2 | 92065-068 | 1 | ||
| WASHER PLAIN 12MM | 3 | 92022-072 | 4 | ||
| NUT 8MM | 4 | 92015-020 | 4 | ||
| WASHER SPRING 12MM | 5 | 461F1200 | 4 | ||
| CYLINDER HEAD | 6 | 11001-052 | 1 | F7/F7-A | |
| CYLINDER HEAD,BLACK | 6 | 11001-092-21 | 1 | F7-B | |
| CYLINDER HEAD,BLACK | 6 | 11001-092-21 | 1 | F7-C | |
| DAMPER RUBBER-CYLNDER | 7 | 92075-142 | 5 | F7-B | |
| CYLINDER | 8 | 11005-5002 | 1 | ||
| CYLINDER | 8 | 11005-5002 | 1 | ||
| CYLINDER | 8 | 11005-5002 | AL | ||
| GASKET-CYLINDER BASE | 9 | 11009-026 | 1 | ||
| GASKET-CYLINDER HEAD | 10 | 11004-042 | 1 | ||
| SPRING CONNECTOR | 11 | 18071-001 | 2 | ||
| SPRING-CONNECTOR | 11 | 18071-003 | 2 | ||
| STUD, LIGHT ALLOY, 6X30 | 12 | 172G0630 | 2 | ||
| GASKET-EXHAUST PIPE | 13 | 18067-017 | 1 | ||
| HOLDER-EXHAUST | 14 | 18062-005 | 1 | F7/F7-A | |
| HOLDER-EXH PIPE,BLACK | 14 | 18062-005-21 | 1 | F7-B | |
| WASHER SPRING 6MM | 15 | 461F0600 | 2 | ||
| NUT 6MM | 16 | 311B0600 | 2 | F7/F7-A | |
| NUT | 16 | 92019-008 | 2 | F7-B | |
| DAMPER RUBBER | 17 | 92075-075 | 12 | F7-B | |
| UNAVAILABLE IN PRICE BOOK | 18 | 56019-102 | AR |
