Parts Diagrams |

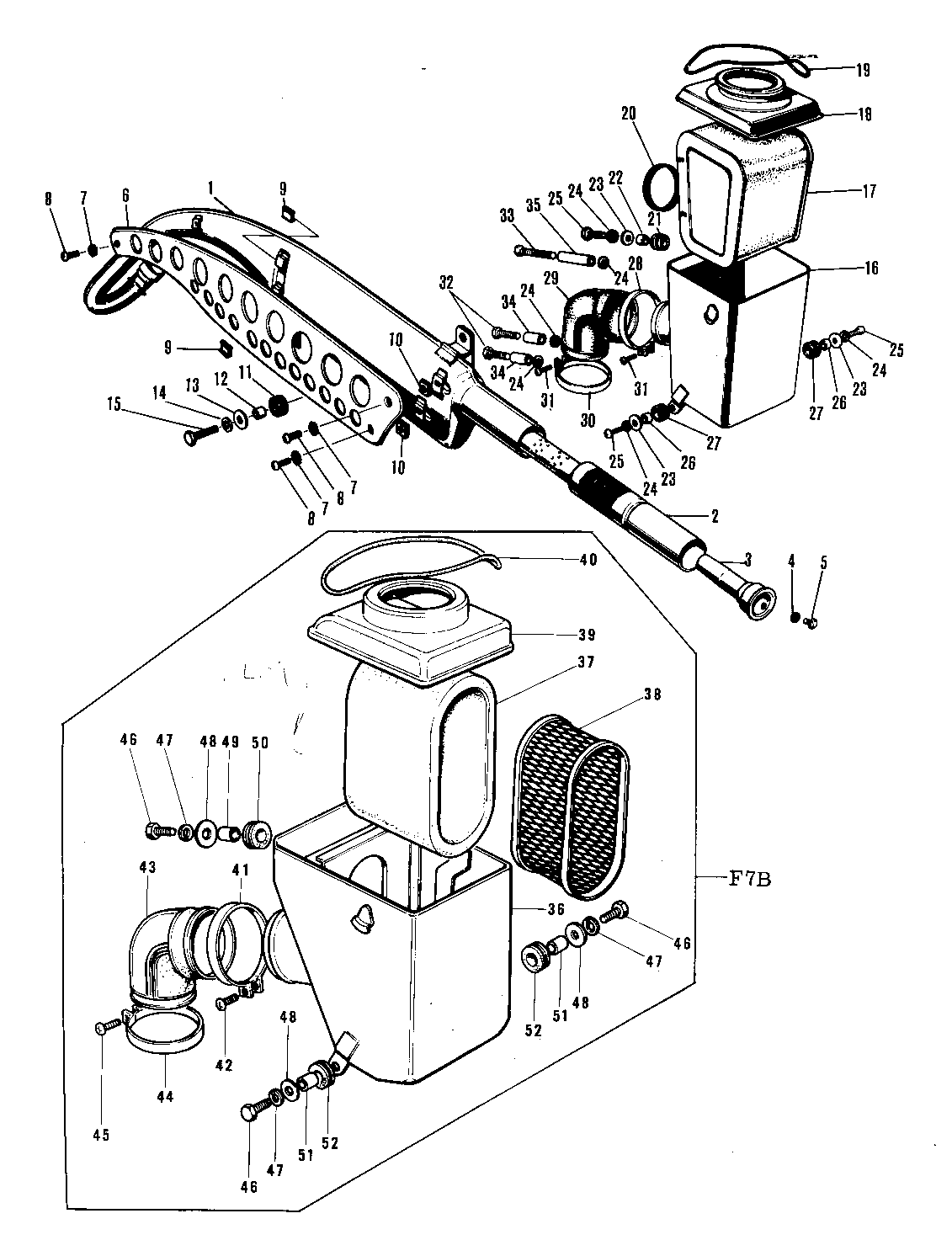

1971 F7 - AIR CLEANER/MUFFLER ('71-'73 F7/F7-A/F7-
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
MUFFLER ASSY | 1~5 | 18001-032 | 1 | ||
BAFFLE TUBE | 2~5 | 18033-073 | 1 | L=350 M/M | |
TAIL PIECE | 3 | 18048-015 | 1 | ||
WASHER LOCK 6MM | 4 | 463H0600 | 1 | ||
BOLT-UPSET,6X12 | 5 | 112G0612 | 1 | ||
COVER-MUFFLER | 6 | 18064-005 | 1 | ||
WASHER LOCK 6MM | 7 | 463H0600 | 3 | ||
SCREW PAN HEAD 6X12 | 8 | 220E0612 | 3 | ||
INSULATOR | 9 | 18065-007 | 2 | ||
INSULATOR-HEAT | 10 | 18065-009 | 2 | ||
DAMPER RUBBER-MUFFLER | 11 | 18063-005 | 2 | ||
COLLAR | 12 | 92027-102 | 2 | ||
WASHER,8X26X2.3 | 13 | 92022-1564 | 2 | ||
WASHER SPRING 8MM | 14 | 461F0800 | 2 | ||
BOLT-SMALL-UPSET 8X25 | 15 | 115G0825 | 2 | ||
AIR CLEANER ASSY | 16~20 | 11010-040 | 1 | ||
BODY-AIR CLEANER | 16 | 11011-012 | 1 | ||
ELEMENT,AIR CLNR | 17 | 11013-020 | 1 | ||
CAP-AIR CLEANER | 18 | 11012-015 | 1 | ||
"0" RING,100MM | 19 | 671B25100 | 1 | ||
GASKET-AIR CLEANER | 20 | 11017-007 | 1 | ||
DAMPER RUBBER | 21 | 92075-051 | 1 | L= 7 M/M | |
COLLAR | 22 | 92027-103 | 1 | L= 6 M/M | |
WASHER 6.5X20X1.6T | 23 | 92022-125 | 3 | ||
WASHER SPRING 6MM | 24 | 461F0600 | 6 | ||
BOLT-UPSET,6X20 | 25 | 112G0620 | 3 | ||
COLLAR 6.8X10X10.5 | 26 | 92027-120 | 2 | L=10.5 M/M | |
GROMMET | 27 | 92071-046 | 2 | L=11.5 M/M | |
CLAMP,AIR CLEANER | 28 | 92037-129 | 1 | I.D.= 83 | |
CONNECTOR | 29 | 11026-003 | 1 | ||
CLAMP,AIR CLEANER | 30 | 92037-128 | 1 | I.D.= 76 | |
SCREW PAN HEAD 6X35 | 31 | 220B0635 | 2 | ||
BOLT-AIR CLEANER FIT | 32 | 92003-066 | 2 | ||
BOLT-AIR CLNR. FITTNG | 33 | 92003-067 | 1 | ||
COLLAR | 34 | 92027-127 | 2 | ||
COLLAR | 35 | 92027-128 | 1 | ||
AIR CLEANER ASSY | 36~40 | 11010-061 | 1 | F7B | |
BODY-AIR CLEANER | 36 | 11011-024 | 1 | F7B | |
ELEMENT,AIR,CLNR | 37 | 11013-036 | 1 | F7B | |
HOLDER-CLENER ELEM | 38 | 11014-007 | 1 | F7B | |
CAP-AIR CLEANER,BL | 39 | 11012-028 | 1 | F7B | |
SCREW PAN HEAD 6X35 | 42 | 220B0635 | 1 | F7B | |
SCREW PAN HEAD 6X30 | 45 | 220B0630 | 1 | F7B | |
BOLT-UPSET | 46 | 112G0625 | 3 | F7B | |
WASHER SPRING 6MM | 47 | 461F0600 | 3 |
