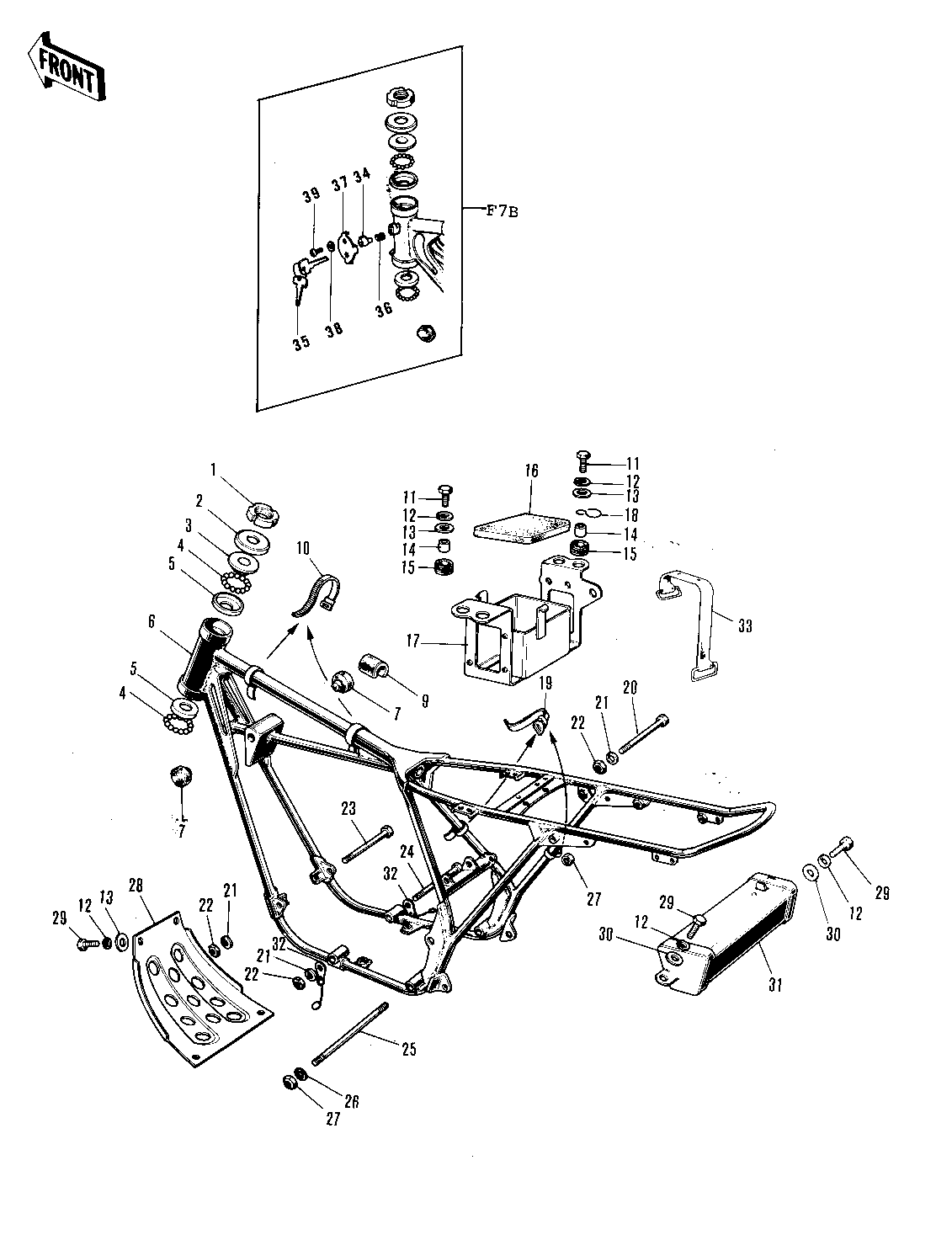

1971 F7 - FRAME/FRAME FITTINGS ('71-'73 F7/F7-A/F7

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT STEERING STEM LCK 1 92090-006 1
CAP STEERING STEM 2 46098-005 1
CONE UPPER BEARING 3 92047-005 1
BALL STEEL 3/16' 4 600A0600 46
RACE BEARING 5 92048-004 2
UNAVAILABLE IN PRICE BOOK 6 32002-043 1
FRAME 6 32002-060 1 F7B
DAMPER RUBB FUEL TANK 7 92075-050 2
MAT FUEL TANK 8 51067-002 1
MAT FUEL TANK 9 51067-002 1
BAND,LONG 10 92072-032 3
BOLT-UPSET,6X20 11 112G0620 4
BOLT-UPSET,6X20 11 112G0620 AL
WASHER SPRING 6MM 12 461F0600 10
WASHER 6.5X20X1.6T 13 92022-125 8
COLLAR 14 92027-103 4
DAMPER RUBBER 15 92075-051 4
MAT-BATTERY 16 32103-019 1
CASE-BATTERY 17 32097-018 1
CLAMP CABLE 18 92037-026 1
BAND,MIDDLE 19 92072-031 2
BOLT,FLANGED,10X115 20 92001-1603 1
WASHER SPRING 10MM 21 461F1000 3
NUT,10MM 22 314B1000 3
BOLT-HEX HEAD,10X145 23 113B10145 1
BOLT,HEX HEAD,10X150 23 92001-1251 1 F7A
BOLT-HEX HEAD,10X225 24 113B10225 1
BOLT-HEX HEAD,10X225 24 113B10225 1 F7A
STUD,12X290 25 92006-003 1
WASHER SPRING 12MM 26 461F1200 1
NUT-HEX-FINE 27 314B1200 2
GUARD-ENGINE 28 55011-012 1
BOLT-UPSET,6X12 29 112G0612 1
WASHER PLAIN 6MM 30 410B0600 2
BOX-TOOL 31 32098-013 1
UNAVAILABLE IN PRICE BOOK 32 58041-006 2 L=238 M/M
CHAIN 32 58041-012 2 F7B 22 LINKS
BAND TOOL 33 92072-012 1
LOCK ASSY-STEERING 34~35 27016-029 1 F7B
KEY SET-STRNG #270 35 27018-015-70 1 F7B
KEY SET-STRNG #271 35 27018-015-71 1 F7B
KEY SET-STRNG #272 35 27018-015-72 1 F7B
KEY SET-STRNG #273 35 27018-015-73 1 F7B
KEY SET-STRNG #274 35 27018-015-74 1 F7B
SPRING-STEERING LOCK 36 27032-001 1 F7B
CAP,STEERING LOCK 37 11012-1134 1 F7B
WASHER 38 92097-003 1 F7B
SCREW-TAPPING 39 92008-007 1 F7B
