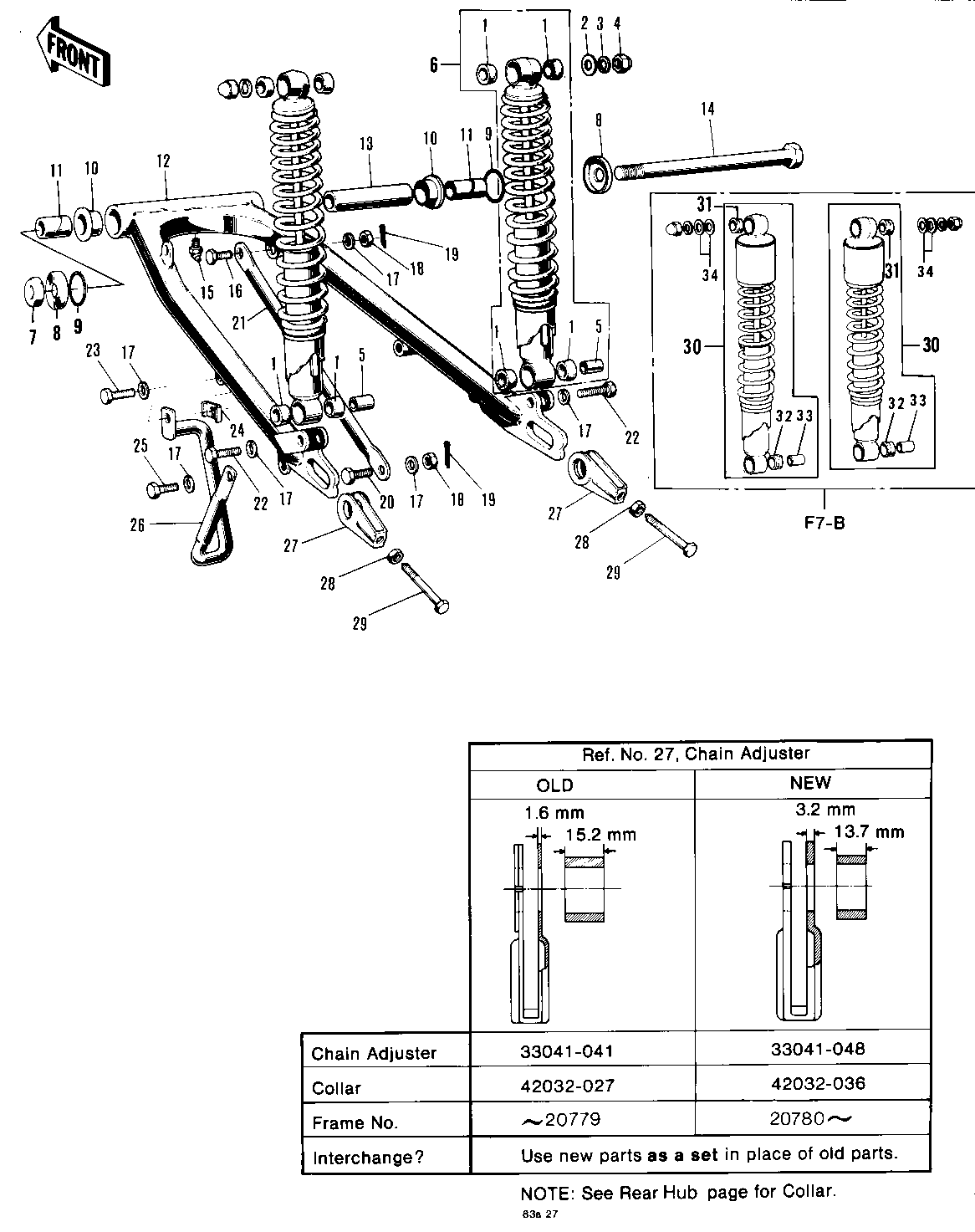

1971 F7 - SWING ARM/SHOCK ABSORBERS ('71-'73 F7/F7

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BUSH SHOCK ABSORBER 1 45017-003 8 F7/F7-A
BUSH-SHOCK ABSORBER 1 45017-005 8 F7/F7-A
WASHER-PL-10.5X26X2.3 2 92022-044 2 F7/F7-A
WASHER SPRING 10MM 3 461F1000 2
NUT SHOCK ABSORBER 4 92020-003 2
BUSH SHCK ABS PVT SFT 5 45016-003 2 F7/F7-A
SHOCK ABSORBER-REAR 6 45014-058 2 F7
SHOCK ABSBR RR 6 45014-070 2 F7-A
NUT-LOCK,12MM 7 92019-009 1
CAP-SWINGING ARM 8 33035-005 2
"0" RING,30MM 9 671B2530 2
BUSHING-SWING ARM 10 33033-009 2
SLEEVE-SWINGING ARM 11 33034-016 2
ARM-SWING 12 33001-035 1
COLLAR SWING ARM 13 33036-002 1
SHAFT-SWING ARM PIVOT 14 33032-029 1
GREASE NIPPLE 15 92005-002 1
BOLT TORQUE LINK FIT 16 92003-017 1
WASHER SPRING 10MM 17 461F1000 6
NUT,10MM 18 314B1000 2
NUT,10MM 18 314B1000 2
PIN COTTER 2.0X15 19 550D2015 2
BOLT HEX HEAD 10X25 20 92003-003 1
TORQUE LINK REAR BRK 21 43007-018 1
BOLT HEX HEAD 10X35 22 113N1035 2
BOLT,HEX HEAD,10X50 23 92001-1254 1
NUT-CHAIN GUARD FIT 24 92017-009 1
BOLT,HEX HEAD,10X18 25 113G1018 1
GUARD-CHAIN 26 55020-005 1
ADJUSTER-CHAIN 27 33040-041 2 USE W/42032-027
ADJUSTER-CHAIN 27 33040-048 2 USE W/42032-036
NUT 8MM 28 312B0800 2
BOLT,8X50 29 92001-1399 2
BOLT,8X50 29 92001-1399 2
SHOCK ABSBR RR 30 45014-075 2 F7-B
BUSHING,SHCK ABS RUB 31 45017-018 2 F7-B
BUSHING,RUBBER 32 92075-1020 2 F7-B
BUSHING,RUBBER 32 92075-1020 2 F7-B
BUSH SHCK ABS PVT SFT 33 45016-003 2 F7-B
WASHER-PL-10.5X26X2.3 37 92022-044 4 F7-B
