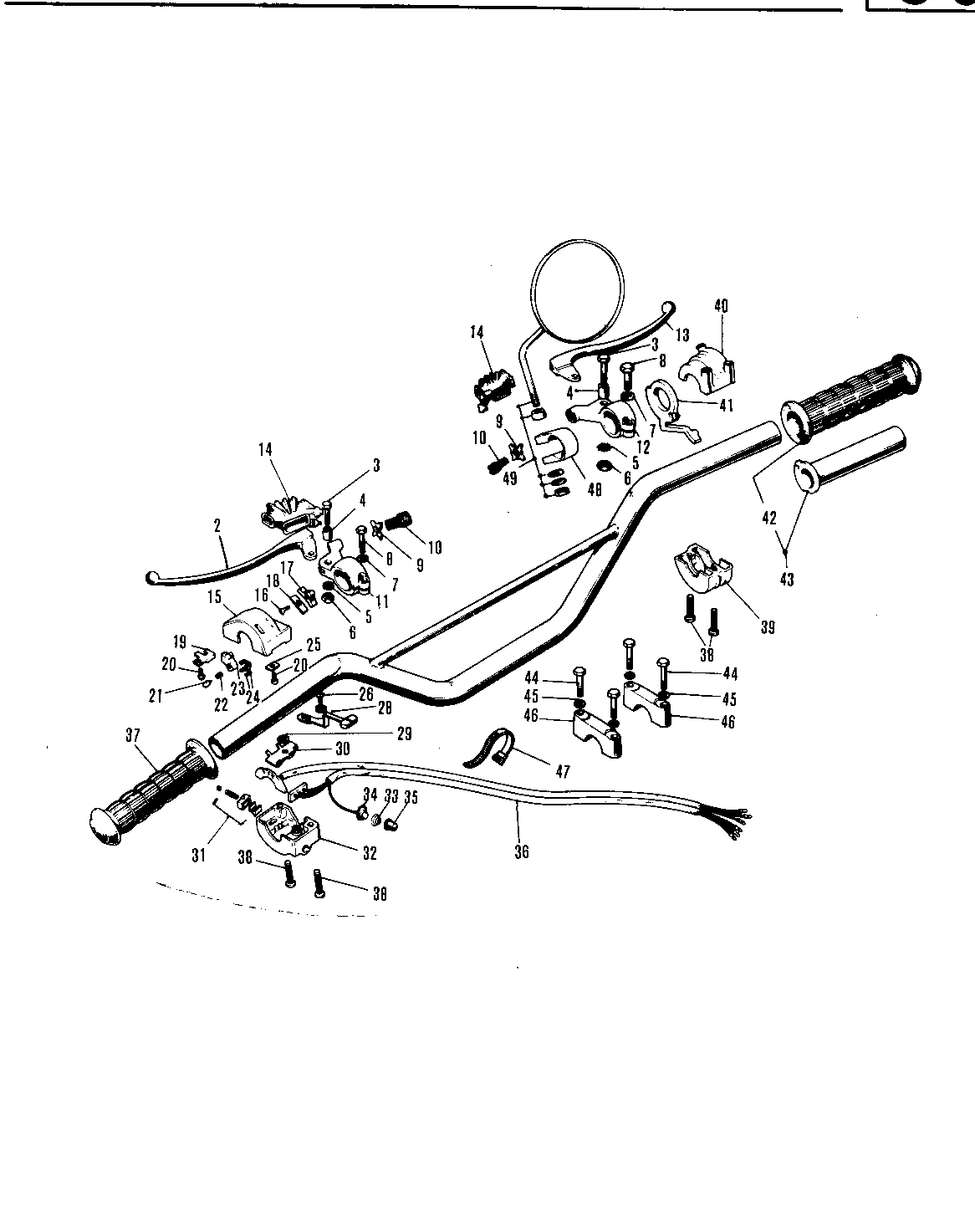

1971 F7 - HANDLEBAR (F7/F7-A)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HANDLEBAR 1 46004-016 1
LEVER ASSY-CLUTCH 2 ~11 46076-014 1
LEVER-CLUTCH 2 46092-015 1
BOLT HEX HEAD 5X20 3 92007-020 2
COLLAR LEVER 4 46059-011 2
WASHER LOCK 5MM 5 464H0500 2
NUT 5MM 6 312B0500 2
WASHER PLAIN 6MM 7 410B0600 2
BOLT, HEX HEAD 6X22 8 110N0622 2
NUT LOCK ADJUST SCREW 9 46056-001 2
SCREW CABLE ADJUST 10 46055-003 2
HOLDER,CLUTCH LEVER 11 46094-010 1
LEVER ASSY-FRNT BRAKE 3 ~ 10 46021-010 1
HOLDER-FR BRAKE LEVER 12 46060-006 1
LEVER FRONT BRAKE 13 46058-004 1
CASE ASSY-L.H 15~36, 46091-004 1
CASE L.H SWITCH UPPER 15 46086-013 1
SCREW CNTSNK HD 3X8 16 221B0308A 1
KNOB-L.H SWITCH 17 46044-011 1
SPRING L.H SW KNOB 18 46031-003 1
HOLDER L.H SW LOWER B 19 46085-014 1
SCREW PAN HEAD 3X5 20 220B0305A 22
CONTACT L.H SWITCH 21 46079-002 1
SPRING L.H SWITCH 22 46031-004 1
SWITCH L.H 23 46089-003 1
PLATE L.H SW CONTACT 24 46080-002 1
HOLDER L.H SW UPPER A 25 46085-013 1
SCREW PAN HEAD 3X8 26 220B0308 1
KNOB-SWITCH 28 46044-006 1
WASHER 29 92095-010 1
HOLDER L.H SW LOWER 30 46085-015 1
SLIDE BLOCK AY-L.H SW 31 46089-004 1
CASE L.H SWITCH LOWER 32 46077-015 1
SWITCH ASSY,HORN BUTN 33 27010-1009 1
SWITCH ASSY,HORN BUTN 34 27010-1009 1
SWITCH ASSY,HORN BUTN 35 27010-1009 1
WIRING HARNESS-L.H SW 36 46082-017 1
RUBBER-L.H GRIP 37 46075-017 1
SCREW PAN HEAD 5X22 38 220B0522 4
CASE ASSY-R.H 38 ~ 4 46018-019 1
CASE-R.H LOWER 39 46023-005 1
CASE-R.H LOWER 39 46023-005 AL
CASE-R.H.UPPER 40 46041-005 1
LEVER-STARTER 41 46096-006 1
RUBBER-R.H GRIP 42 46061-012 1
GRIP ASSY-THROTTLE 43 46019-013 1
GRIP ASSY-THROTTLE 43 46019-018 1 F7A
BOLT 8X38 44 92001-1405 4
WASHER SPRING 8MM 45 461F0800 4
HOLDER-HANDLEBAR 46 46012-008 2 BLACK
HOLDER UPPER HANDLBAR 46 46012-004 AL SILVER
BAND,SHORT 47 92072-030 1
BRACKET 48 56006-001 1
