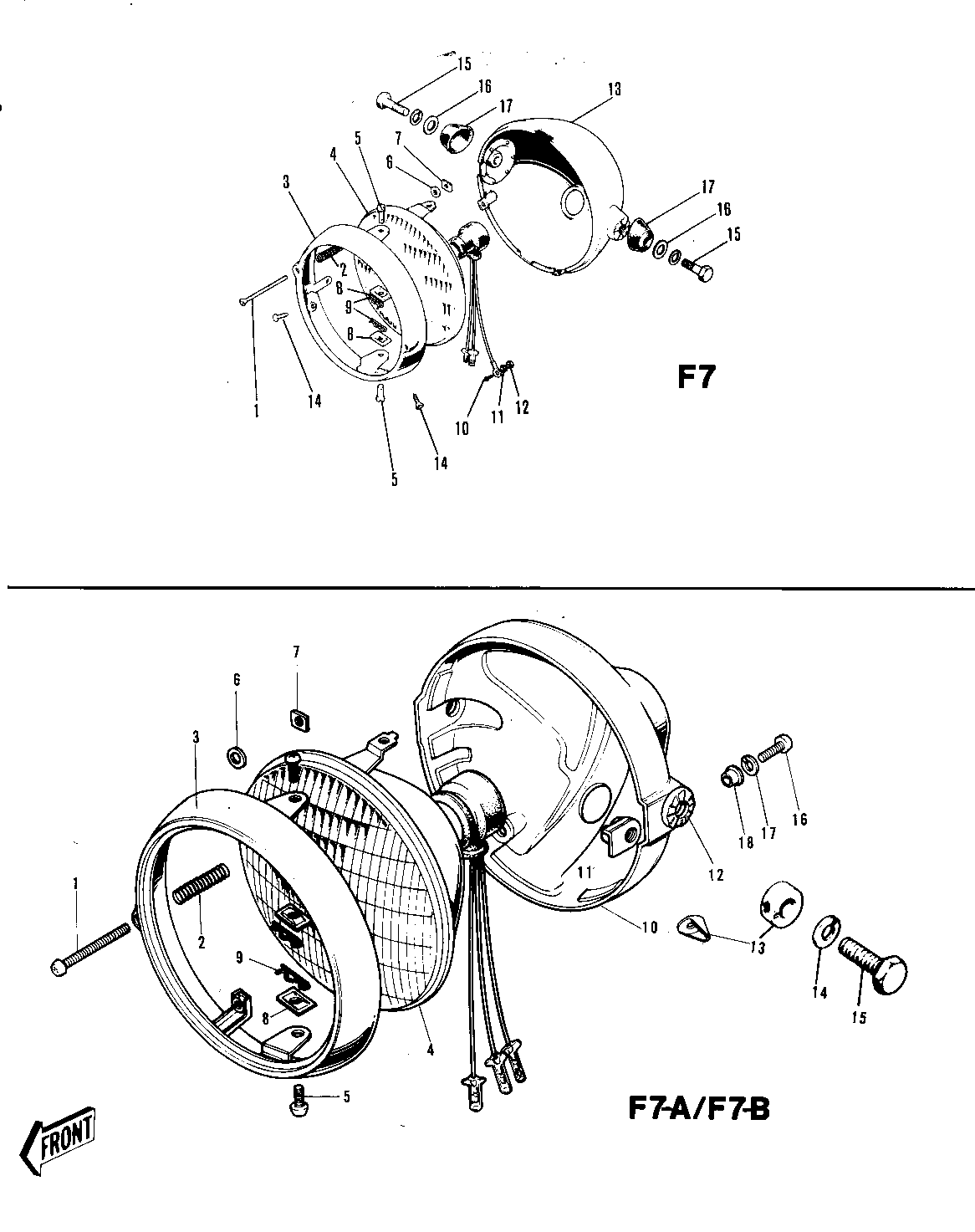

1971 F7 - HEADLIGHT ('71-'73 F7/F7-A/F7-B)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP UNIT-HEAD 1~9 23003-008 1
SCREW FORCUS ADJUST 1 23019-021 1
SPRING FOCUS ADJUST 2 23014-005 1
RIM HEAD LAMP 3 23006-014 1
SEALED BEAM UNIT 4 23007-022 1
SCREW LENS UNIT FITT 5 23019-018 2
WASHER 6 23021-004 1
NUT 7 23020-016 1
NUT LENS UNIT FITTING 8 23020-009 2
PIN LENS UNIT FITTING 9 23022-001 2
SCREW-PAN-HEAD 3X6 10 220B0306 1
WASHER SPRING 3MM 11 461F0300 1
NUT-HEX 12 311B0300 1
BODY-HEAD LAMP,BLACK 13 23005-022-21 1
SCREW OVL CNTSNK 5X10 14 222E0510 2
BOLT,HEX HEAD,10X25 15 92007-045 2
WASHER PLAIN 10MM 16 411B1000 2
DAMPER RUBBER 17 92075-058 2
LAMP UNIT-HEAD 1~9 23003-015 1
SCREW FORCUS ADJUST 1 23019-021 1
SPRING FOCUS ADJUST 2 23014-005 1
RIM-HEAD LAMP 3 23006-028 1
LENS UNIT-HEAD LAMP 4 23007-032 1
SCREW LENS UNIT FITT 5 23019-018 2
WASHER 6 23021-004 1
NUT 7 23020-016 1
NUT LENS UNIT FITTING 8 23020-009 2
PIN LENS UNIT FITTING 9 23022-001 2
BODY-HEAD LAMP,BLACK 10 23005-034-10 1
NUT 11 23020-017 2
WASHER-LOCK 12 23021-011 2
DAMPER RUBBER 13 92075-079 2 F7A
DAMPER RUBBER 13 92075-134 2 F7B
WASHER SPRING 10MM 14 461F1000 2
BOLT,10MM 15 92007-024 2
SCREW-PAN HEAD,5MM 16 92011-024 2
WASHER SPRING 5MM 17 461F0500 2
WASHER 18 23021-010 2
