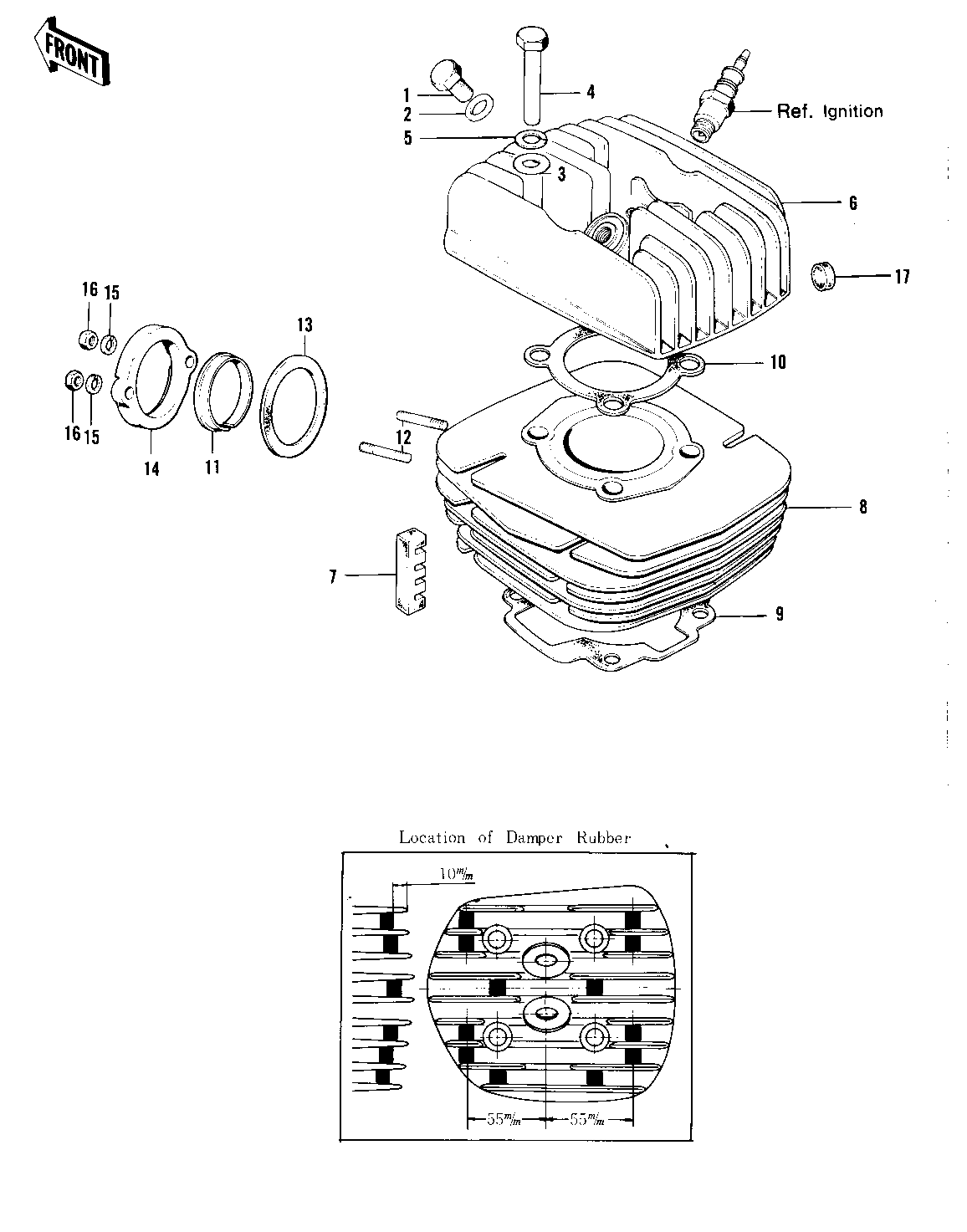

1971 F7 - CYLINDER HEAD/CYLINDER ('74-'75 F7-C/F6-
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PLUG-CYLINDER HEAD | 1 | 92067-005 | 1 | ||
GASKET-CYL HEAD PLUG | 2 | 92065-068 | 1 | ||
WASHER PLAIN 12MM | 3 | 92022-072 | 4 | ||
NUT 8MM | 4 | 92015-020 | 4 | ||
WASHER SPRING 12MM | 5 | 461F1200 | 4 | ||
CYLINDER HEAD,BLACK | 6 | 11001-092-21 | 1 | ||
DAMPER RUBBER-CYLNDER | 7 | 92075-142 | 5 | ||
CYLINDER,FLAT.BLACK | 8 | 11005-117-21 | 1 | ||
GASKET-CYLINDER BASE | 9 | 11009-026 | 1 | ||
GASKET-CYLINDER HEAD | 10 | 11004-042 | 1 | ||
INSERT,EXHAUST HOLDER | 11 | 18070-007 | 1 | ||
STUD,8X25 | 12 | 92004-1008 | 2 | F7-C | |
STUD,8X25 | 12 | 92004-1008 | 2 | ||
STUD 8X30 | 12 | 172G0830 | 2 | F7-D | |
GASKET EXHAUST PIPE | 13 | 18067-008 | 1 | ||
HOLDER,EXHAUST PIPE | 14 | 18069-051 | 1 | ||
WASHER SPRING 8MM | 15 | 461F0800 | 2 | ||
NUT,8MM | 16 | 311B0800 | 2 | F7-C | |
NUT,LOCK,8MM | 16 | 92017-013 | 2 | F7-D | |
DAMPER RUBBER | 17 | 92075-075 | 12 | F7-B |
