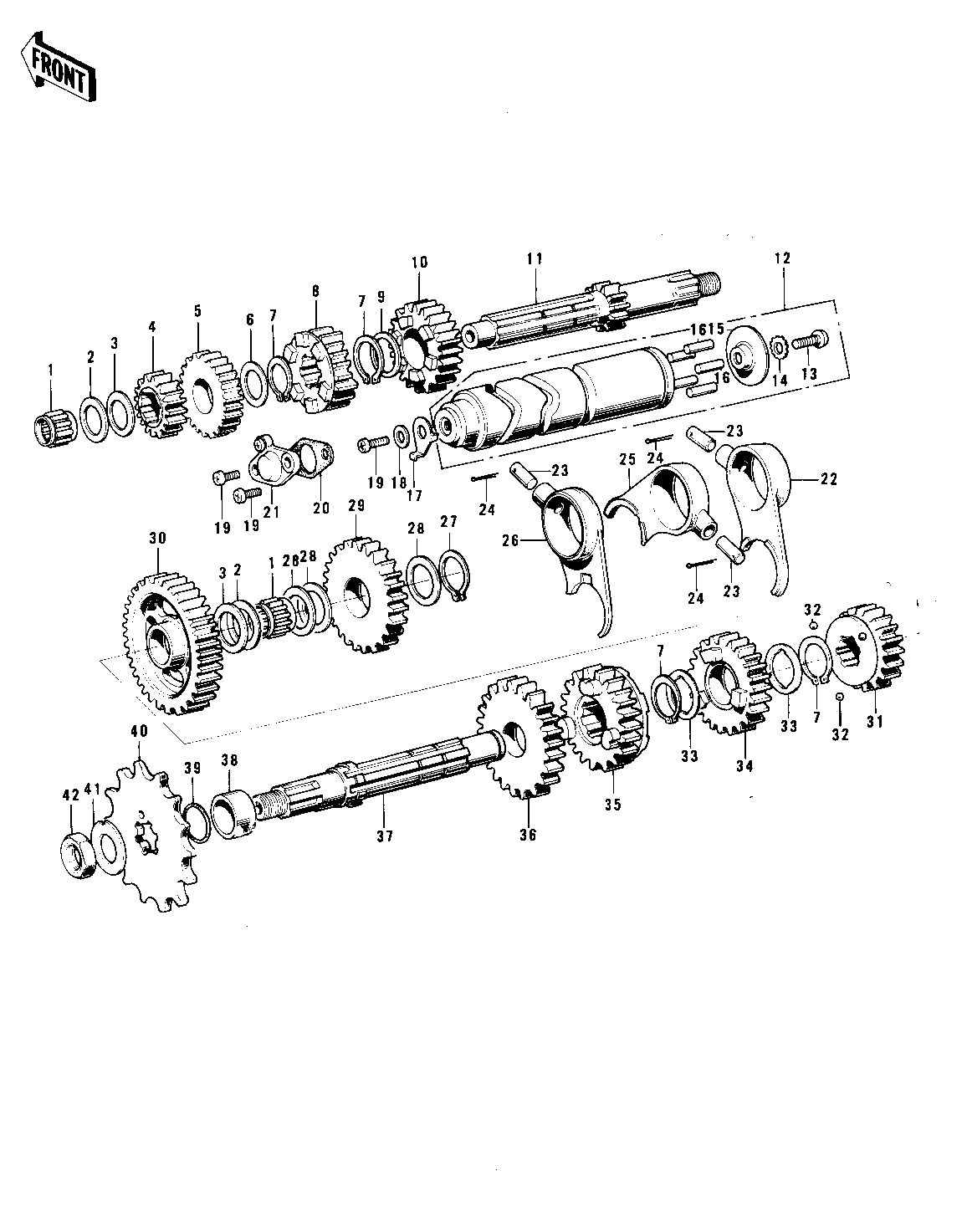

1971 F7 - TRANSMISSION/CHANGE DRUM ('74-'75 F7-C/F

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BEARING-NEEDLE 1 92046-026 2
WASHER-THRUST 2 92022-170 2 I.D.=16.5
WASHER-THRUST 3 92022-171 2 PHOSPHOR-BRON
2ND GEAR-DRIVE 4 13130-024 1 10T
4TH GEAR-DRIVE 5 13134-008 1 23T
WASHER-PLAIN 6 92022-181 1 I.D.=22.5
CIRCLIP,21MM 7 480J2100 4
3RD GEAR-DRIVE 8 13132-022 1 20T
WASHER 22MM 9 92022-106 1 I.D.=22.5
TOP GEAR-DRIVE 10 13136-031 1 25T
SHAFT-DRIVE 11 13127-029 1 12T
DRUM ASSY-GEAR CHANGE 12 13239-002 1
SCREW PAN HEAD 6X14 13 220B0614 1
WASHER LOCK 6MM 14 464H0600 1
PLATE-CHANGE DRUM PIN 15 13142-009 1
PIN GEAR CHANGE DRUM 16 92042-014 5
ROTOR,NEUTRAL INDICTR 17 21007-1003 1
WASHER PLAIN 6MM 18 410B0600 1
SCREW PAN HEAD, 6X16 19 220B0616 3
GASKET NEUTRAL SWITCH 20 13146-002 1
SWITCH,NEUTRAL 21 13151-1001 1
FORK-SELECTOR,LOW 22 13140-050 1
PIN SELECT FORK GUIDE 23 92043-005 3
PIN COTTER 3.0X20 24 550D3020 3
FORK-SELECTOR,TOP 25 13140-049 1
FORK-SELECTOR 26 13140-030 1
CIRCLIP 15MM 27 480J1500 1
WASHER-PLAIN 28 92022-169 2 I.D.=16.5
IDLE GEAR-KICKSTARTER 29 13073-009 1 29T
LOW GEAR,OUTPUT SHAFT 30 13129-051 1 32T
TOP GEAR-OUTPUT 31 13137-016 1 18T
BALL STEEL 5/32' 32 600A0500 3
WASHER-LOCK 33 92024-031 2
3RD GEAR-OUTPUT 34 13133-021 1 24T
4TH GEAR-OUTPUT 35 13135-012 1 21T
2ND GEAR-OUTPUT 36 13131-029 1 28T
SHAFT-OUTPUT 37 13128-028 1
COLLAR-ENG SPROCKET 38 92027-180 1
"0" RING 39 92055-022 1
SPROCKET-OUTPUT,14T 40 13144-1058 1 S.T.D.
ENGINE SPROCKET,13T 40 13144-053 (1 OPTION
ENGINE SPROCKET,1ST 40 13144-054 (1 OPTION
WASHER LOCK 12MM 41 92024-002 1
NUT,12MM 42 92016-024 1
