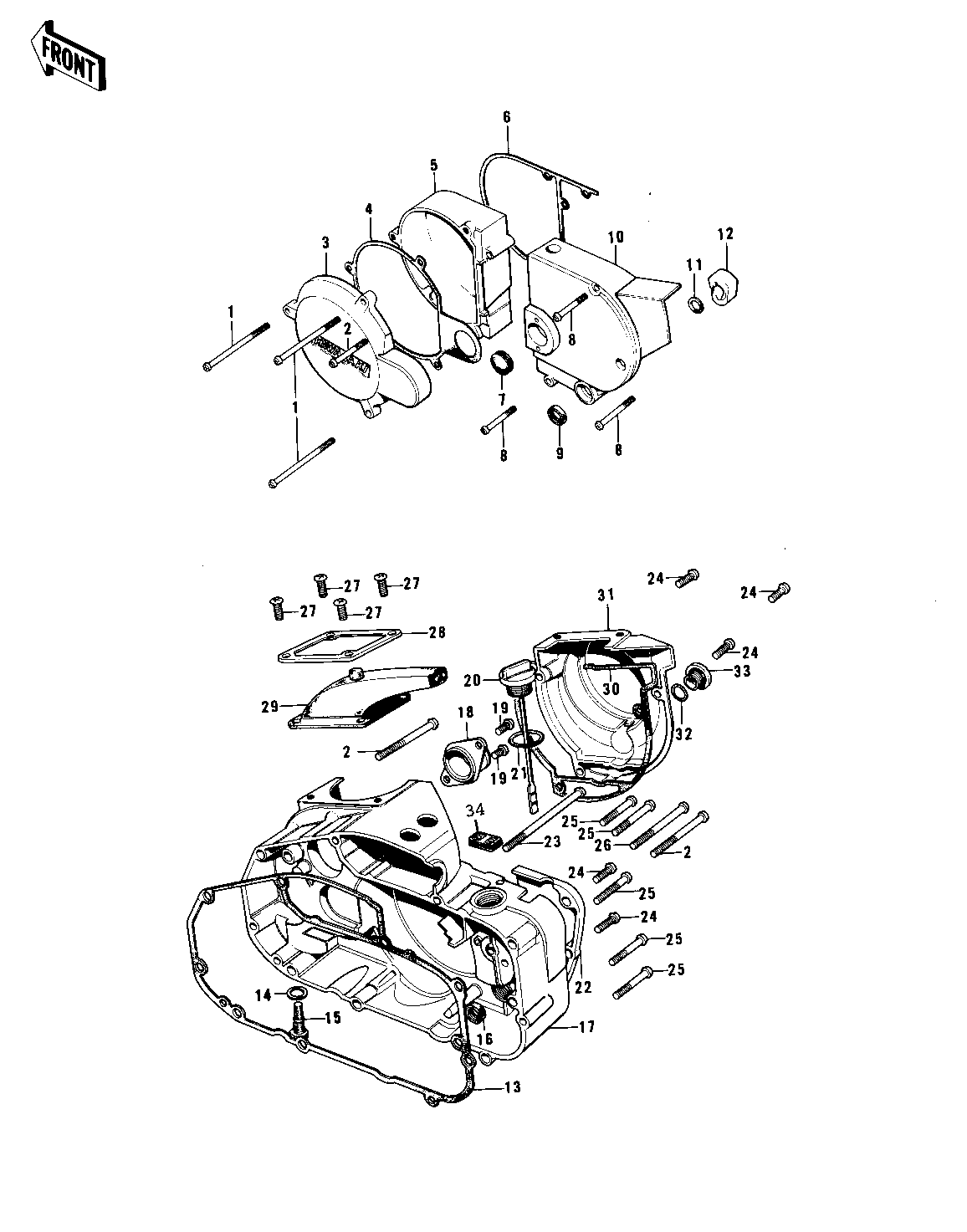

1971 F7 - ENGINE COVERS ('74-'75 F7-C/F6-D)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN HEAD,6X90 1 220B0690 3
SCREW PAN HEAD 6X50 2 220B0650 3
COVER,BRK POINT,BUFF 3 14027-017-80 1 BUFF FINISH
GASKET-BREAKER COVER 4 14050-003 1
COVER,L.H ENG,BUFF 5 14031-042-80 1 BUFF FINISH
GASKET-L.H ENGINE COV 6 14045-009 1
CAP-RUBBER 7 92073-015 1
SCREW PAN HEAD 6X55 8 220B0655 3
SEAL-OIL 9 92049-1249 1
COVER,CHAIN.BUFF 10 14026-002-80 1 BUFF FINISH
GASKET-CHAIN CASE COV 11 14045-010 1
TENSIONER-CHAIN 12 13123-006 1
GASKET-R.H ENGINE COV 13 14046-018 1
PLUG-FUEL DRAIN 14 92067-007 1
GASKET-DRAIN PLUG 15 92065-073 1
OIL SEAL TB16267 16 92051-003 1
COVER,R.H ENG.BUFF 17 14032-092-80 1 BUFF FINISH
HOLDER,CARBURETOR 18 16065-026 1
SCREW PAN HEAD 6X12 19 220B0612 2
PLUG-OIL FILLER 20 16115-015 1
"0" RING,20MM 21 670B2020 1
COVER,OIL PUMP,BUFF 22 14030-029-80 1 BUFF FINISH
SCREW PAN HEAD 6X80 23 220B0680 1
SCREW PAN HEAD 6X20 24 220B0620 5
SCREW PAN HEAD 6X35 25 220B0635 5
SCREW PAN HEAD 6X40 26 220B0640 2
SCREW PAN HEAD 6X16 27 220B0616 4
HOLDER-CARBURETOR CAP 28 14065-002 1
CAP,CARBURETOR 29 14038-037 1
GASKET-CARBURETOR COV 30 14048-003 1
COVER,CARB,BUFF 31 14030-057-80 1 BUFF FINISH
"0" RING,20MM 32 670B2020 1
PLUG,CARBURETOR COVER 33 92067-022 1
GROMMET-OVERFLOW PIPE 34 16136-005 1
