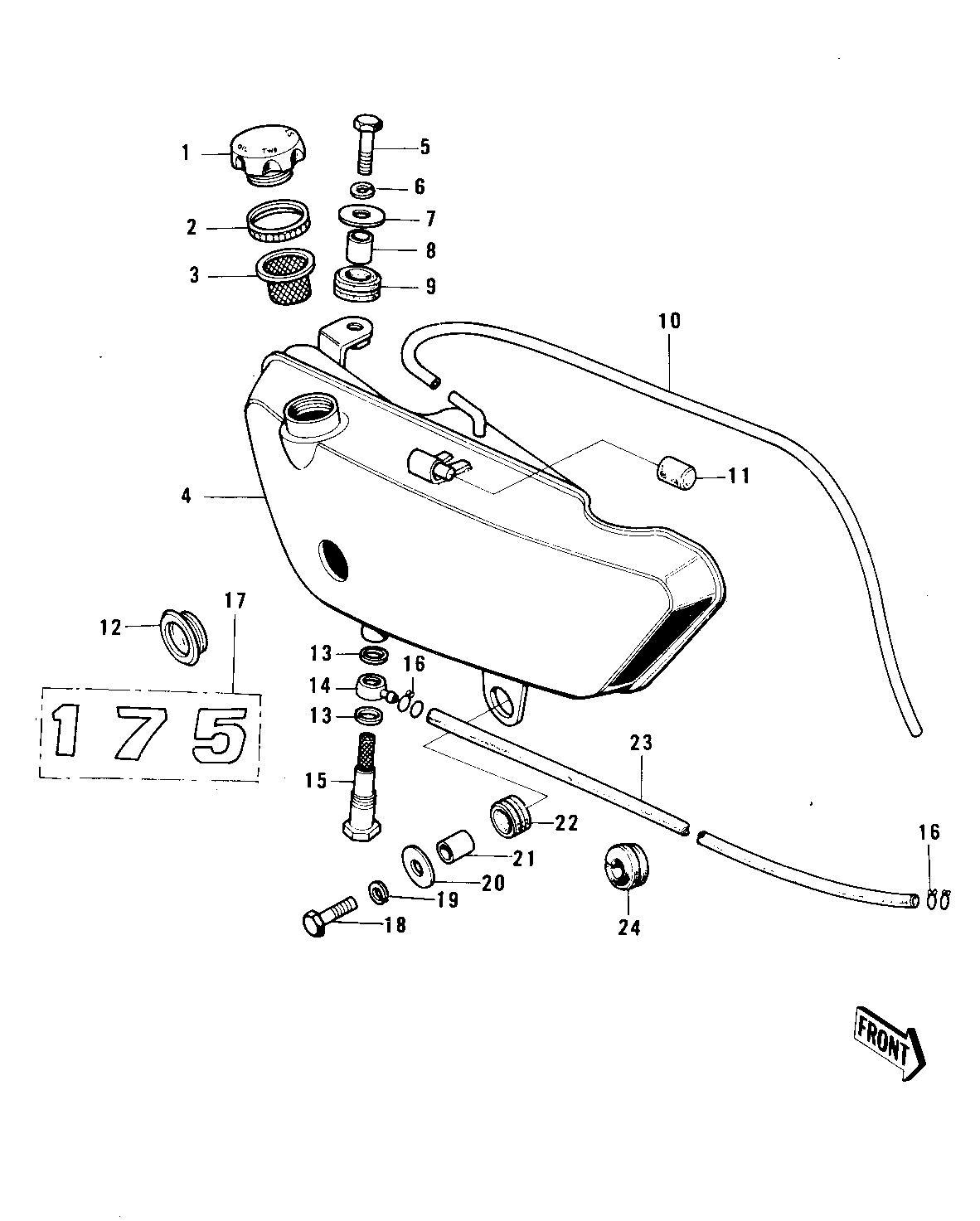

1971 F7 - OIL TANK ('74-'75 F7-C/F6-D)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP-OIL TANK | 1 | 52003-018 | 1 | ||
| GASKET OIL TANK CAP | 2 | 92065-018 | 1 | ||
| GASKET-OIL TANK | 2 | 92065-086 | 1 | F7D | |
| STRAINER, OIL TANK CAP | 3 | 52004-001 | 1 | ||
| TANK-OIL,F.BLACK | 4 | 52001-032-21 | 1 | ||
| BOLT-UPSET,6X20 | 5 | 112G0620 | 1 | ||
| WASHER SPRING 6MM | 6 | 461F0600 | 1 | ||
| WASHER 6.5X20X1.6T | 7 | 92022-125 | 1 | ||
| COLLAR | 8 | 92027-103 | 1 | D=6 | |
| DAMPER RUBBER | 9 | 92075-105 | 1 | D=6 | |
| TUBE-VINYL,5X600 | 10 | 700Q05600 | 1 | ||
| DAMPER RUBBER | 11 | 92075-067 | 1 | ||
| GAUGE OIL LEVEL | 12 | 52015-001 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 13 | 92065 058 | 2 | ||
| CONNECTOR BANJO | 14 | 92061-003 | 1 | ||
| BOLT OIL TANK BANJO | 15 | 92060-001 | 1 | ||
| CLAMP FUEL PIPE | 16 | 92037-010 | 4 | ||
| EMBLEM-OIL TANK | 17 | 56018-130 | 1 | ||
| EMBLEM,SIDE COVER | 17 | 56018-185 | 1 | F7D | |
| BOLT HEX HEAD 8X28 | 18 | 114G0828 | 1 | ||
| WASHER SPRING 8MM | 19 | 461F0800 | 1 | ||
| WASHER,8X26X2.3 | 20 | 92022-1564 | 1 | ||
| COLLAR | 21 | 92027-102 | 1 | D=8 | |
| DAMPER RUBBER-MUFFLER | 22 | 18063-005 | 1 | D=8 | |
| PIPE OIL TANK | 23 | 92059-008 | 1 | ||
| GROMMET PIPE | 24 | 92071-038 | 1 |
