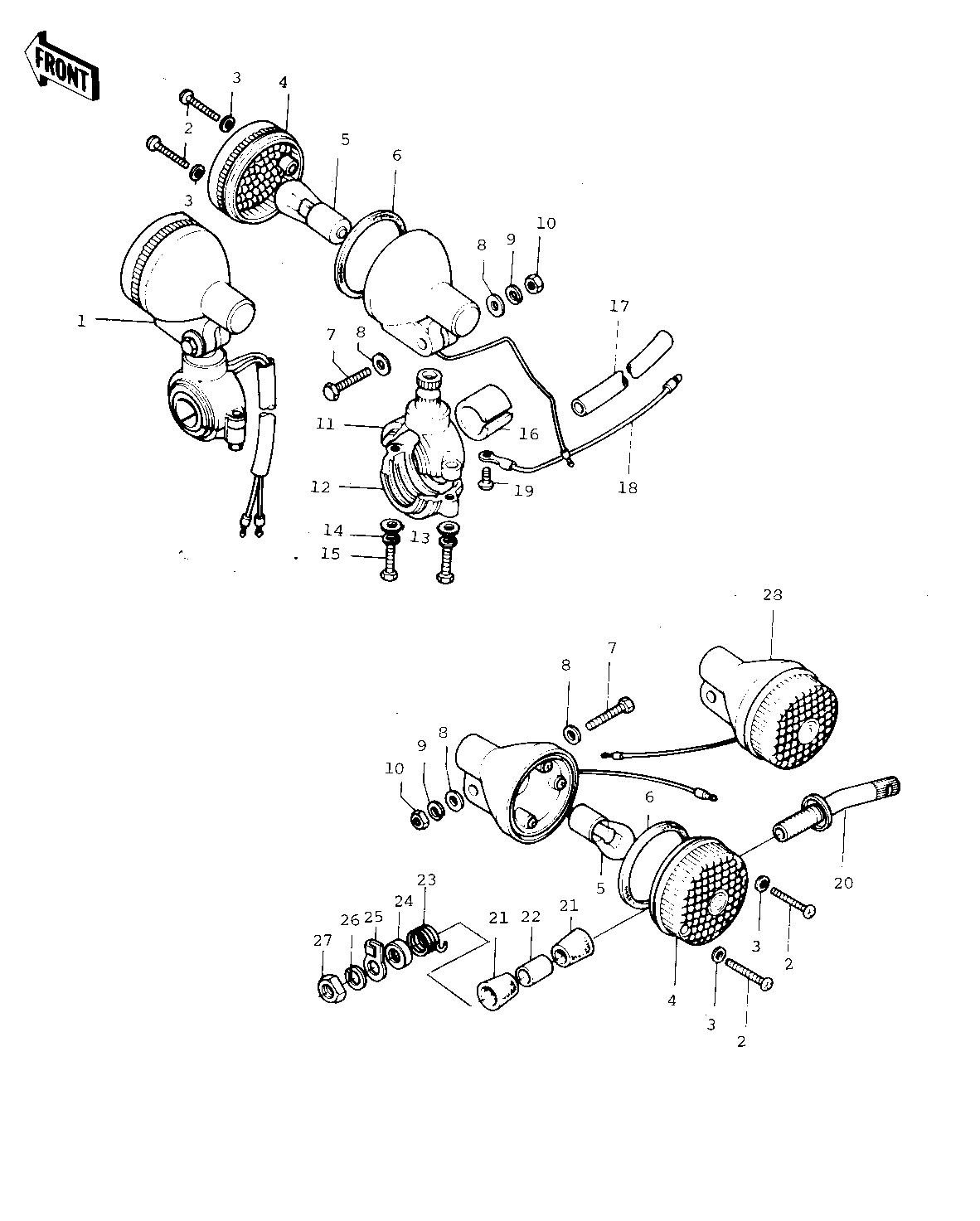

1971 F7 - TURN SIGNALS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP ASY-FR TURN SIG 1 23037-005 2
SCREW-PAN HEAD,4X20 2 220E0420A 8
WASHER-PLAIN,4MM 3 23058-002 8
LENS,TURN SIGNAL LAMP 4 23048-1001 4
BULB,6V 21CP 5 92069-056 4
GASKET-SIG LAMP LENS 6 23050-003 4
BOLT-UPSET 7 112G0630 4
WASHER-PLAIN,6MM 8 411D0600 8
WASHER SPRING 6MM 9 461F0600 4
NUT 6MM 10 311B0600 4
BRACKET,FRNT TURN SIG 11 23051-1004 2
BRACKET,SIGNAL LAMP 12 23051-1013 2
WASHER-PLAIN,5MM 13 410D0500 4
WASHER SPRING 5MM 14 461F0500 4
BOLT 15 110N0516 4
DAMPER RUBBER 16 23066-003 2
COVER-WIRING HARNESS 17 26009-004 2
WIRE-TURN SIGNAL LEAD 18 26011-061 2
SCREW PAN HEAD 3X5 19 220B0305A 2
BKT-RR SIGNAL LAMP 20 23051-037 2
DAMPER RUBBER 21 92075-148 4
COLLAR 12.7X17.3X30 22 92027-168 2
SPRING 23 92081-111 2
WASHER CUP 12.5X35X4T 24 92022-235 2
CLAMP-RR SIGNAL LAMP 25 92037-087 2
WASHER SPRING 12MM 26 461F1200 2
NUT-HEX-FINE,12MM 27 315B1200 2
LAMP-REAR TURN SIGNAL 28 23040-033 2
