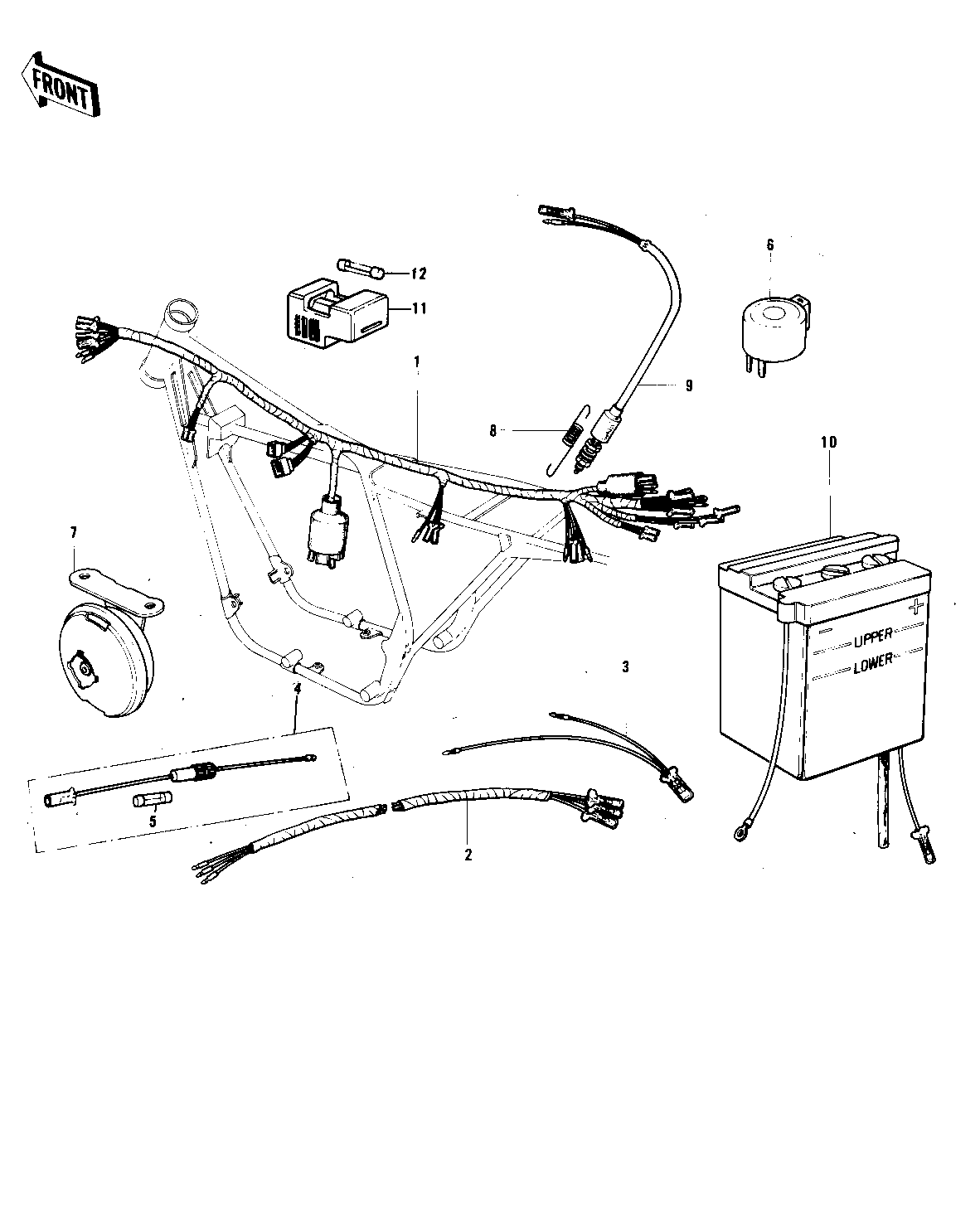

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WIRING HARNESS-MAIN 1 26001-076 1
WIRING HARNESS-REAR 2 26002-029 1
LEAD WIRE 3 26011-042 1
FUSE ASSY 4 26004-017 1
FUSE 10A 5 26006-003 2
RELAY-TURN SIGNAL 6 27002-013 1
HORN 7 27003-061 1
SPRING BRAKE LAMP SW 8 27011-004 1
SWITCH-BRAKE LAMP 9 27010-018 1
YUA BAT 6N4-2A-5 10 K26012-020 1 6N4-2A-5
HOLDER,SPARE FUSE 11 26016-003 1
FUSE 10A 12 26006-003 2
