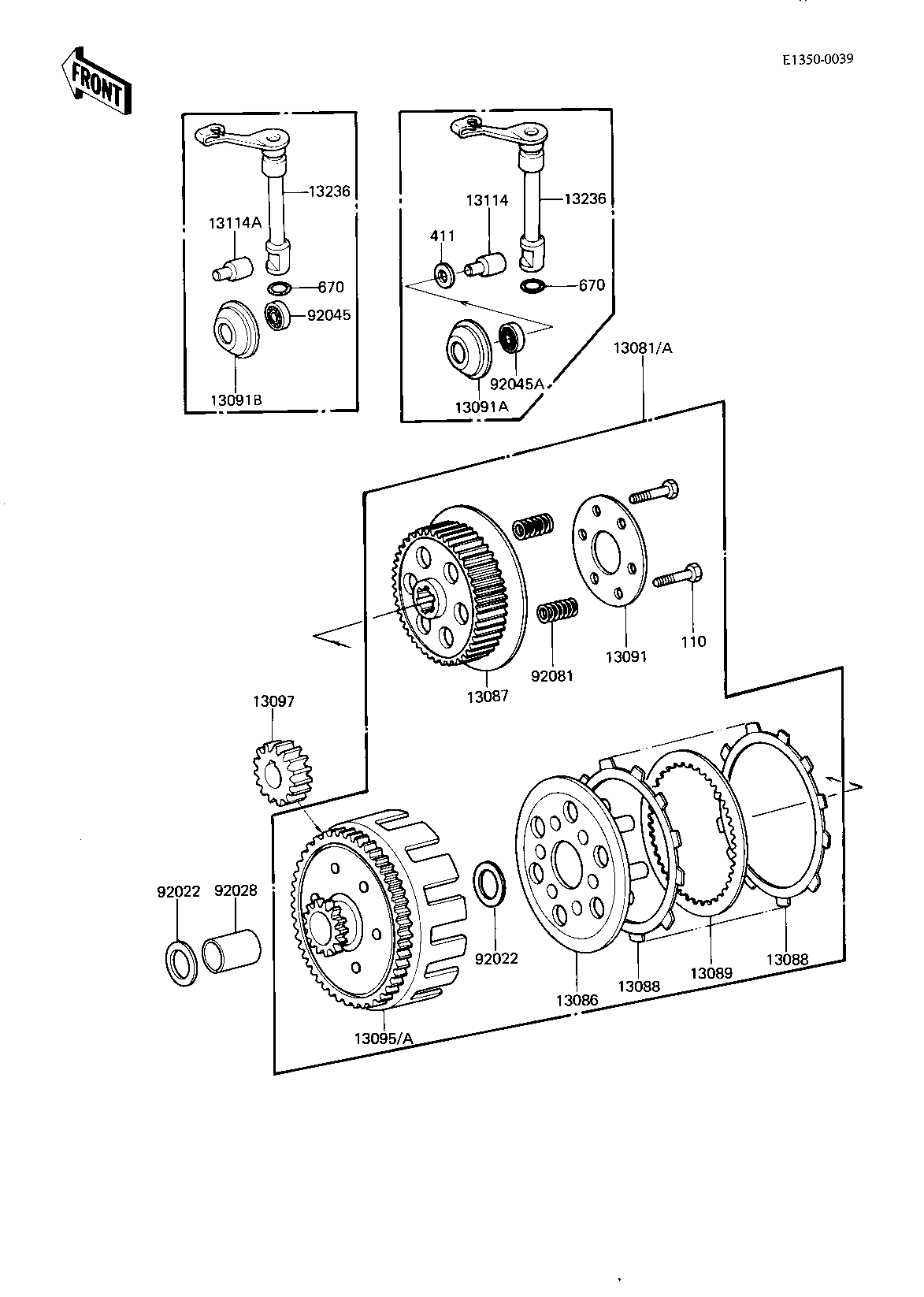

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CLUTCH-ASSY 13081A 13081-1077 1
WHEEL,CLUTCH 13086 13086-1001 1
HUB,CLUTCH 13087 13087-1014 1
PLATE-FRICTION 13088 13088-1015 6
PLATE CLUTCH STEEL 13089 13089-003 5
HOLDER,CLUTCH 13091 13091-015 1
HOLDER,CLUTCH PUSHER 13091B 13091-1134 1
HOUSING-COMP-CLUTCH 13095A 13095-1043 1
GEAR,PRIMARY,23T 13097 13097-1033 1
PUSHER,CLUTCH 13114A 13114-1008 1
LEVER ASSY,CLUTCH RL 13236 13236-1022 1
WASHER,THRUST 92022 92022-223 1
BUSHING,CLUTCH 92028 92028-1081 1
BEARING,BALL #627 92045 92045-026 1
SPRING,CLUTCH 92081 92081-123 6
BOLT 110 110G0520 6
"0" RING, 10MM 670 670B2010 1
