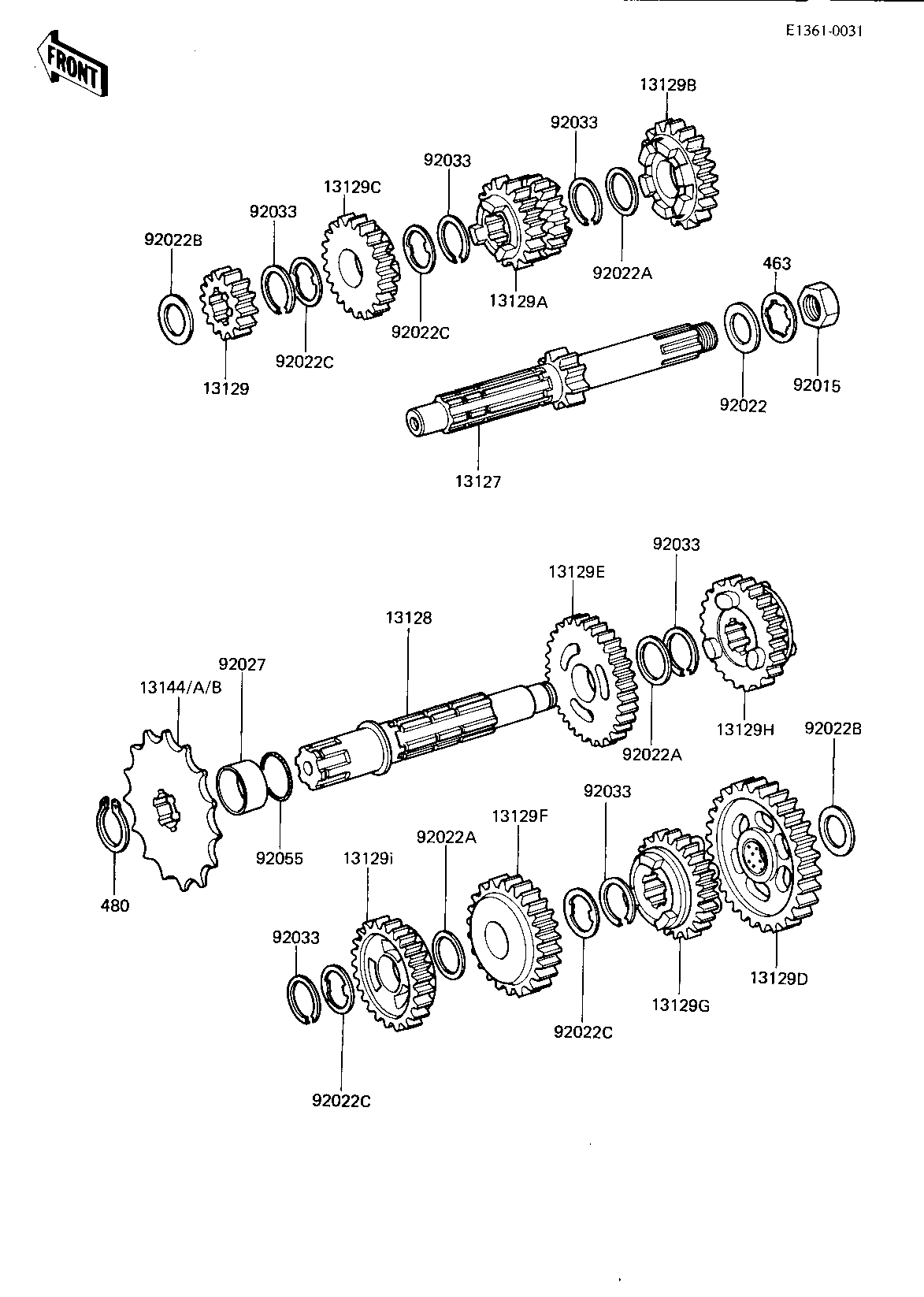

1982 KDX175 - TRANSMISSION ('81-'82 A2/A3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT,DRIVE | 13127 | 13127-1026 | 1 | ||
| SHAFT,OUTPUT | 13128 | 13128-1026 | 1 | ||
| 2ND GEAR,DRIVE SHAFT | 13129 | 13129-1181 | 1 | ||
| 3RD&4TH GEAR,DRIVE S | 13129A | 13129-1182 | 1 | ||
| 5TH GEAR,DRIVE SHAFT | 13129B | 13129-1183 | 1 | ||
| TOP GEAR,DRIVE SHAFT | 13129C | 13129-1184 | 1 | ||
| LOW GEAR,OUTPUT SHAF | 13129D | 13129-1185 | 1 | ||
| 2ND GEAR,OUTPUT SHAF | 13129E | 13129-1186 | 1 | ||
| 3RD GEAR,OUTPUT SHAF | 13129F | 13129-1187 | 1 | ||
| 5TH GEAR,OUTPUT SHAF | 13129G | 13129-1189 | 1 | ||
| TOP GEAR,OUTPUT SHAF | 13129H | 13129-1190 | 1 | ||
| GEAR-TRANSMISSION SP | 13129I | 13129-1324 | 1 | ||
| ENGINE SPROCKET,11T | 13144 | 13144-1036 | 1 | (OPTION) | |
| SPROCKET-OUTPUT,12T | 13144A | 13144-1049 | 1 | ||
| SPROCKET-OUTPUT 13T | 13144B | 13144-1050 | 1 | (OPTION) | |
| NUT 16MM | 92015 | 92016-036 | 1 | ||
| WASHER,16.8X32X1.6 | 92022 | 92022-1277 | 1 | ||
| WASHER-PLAIN | 92022A | 92022-198 | 3 | ||
| WASHER,PLAIN | 92022B | 92022-268 | 2 | ||
| WASHER-LOCK | 92022C | 92024-039 | 4 | ||
| COLLAR,ENGINE SPROCK | 92027 | 92027-1244 | 1 | ||
| CIRCLIP,25MM | 92033 | 92033-025 | 6 | ||
| "0" RING | 92055 | 92055-022 | 1 | ||
| WASHER,TOOTHED,16M/M | 463 | 463H1600 | 1 | ||
| CIRCLIP, 20MM | 480 | 480J2000 | 1 |
