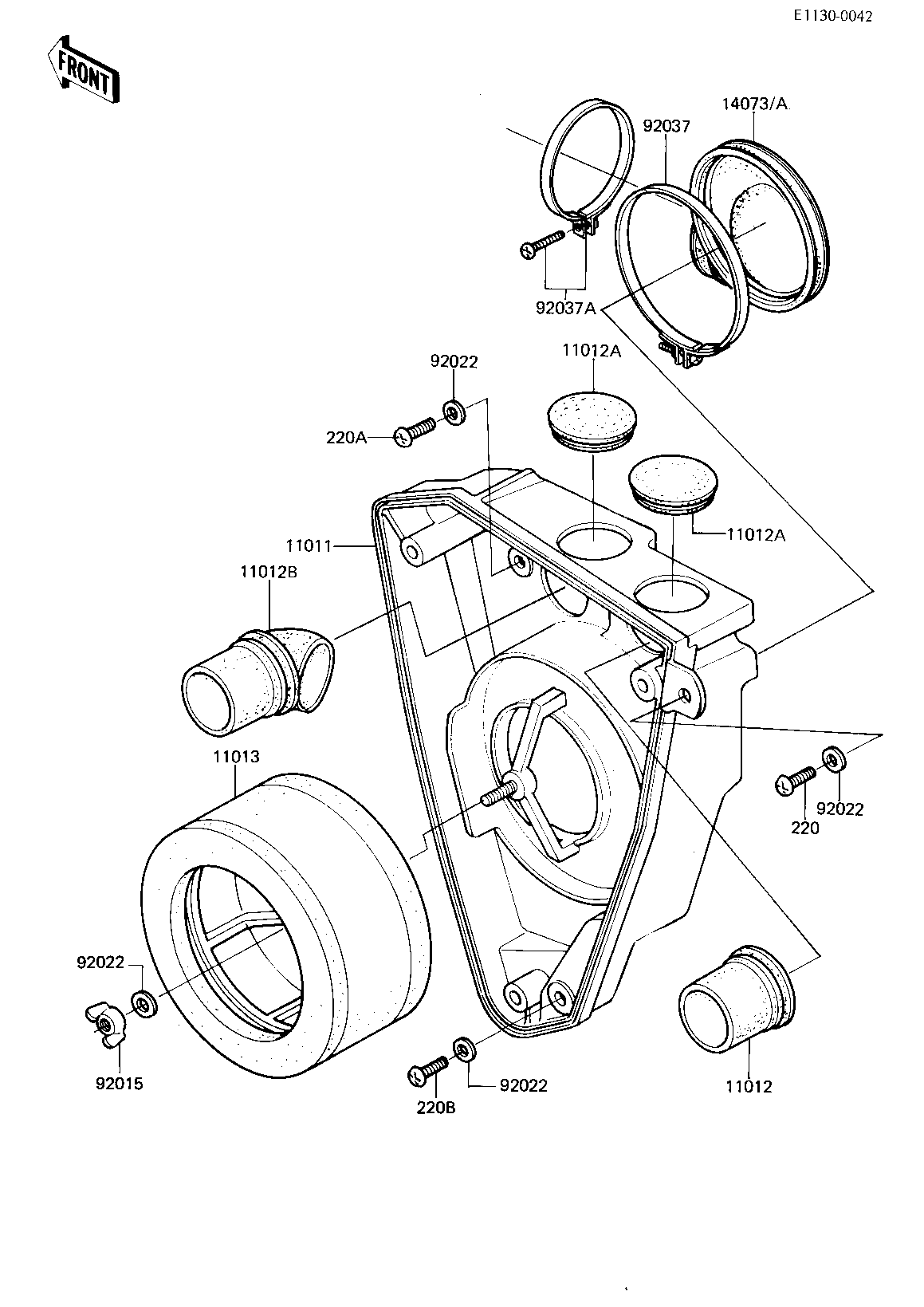

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-AIR FILTER 11011 11011-1059 1
CAP,AIR CLEANER 11012 11012-1109 1
CAP,AIR CLEANER 11012A 11012-1111 2
CAP,AIR CLEANER 11012B 11012-1123 1
ELEMENT,AIR CLNR 11013 11013-1036 1
DUCT 14073A 14073-1066 1
NUT,AIR CLEANER CAP 92015 92016-062 1
WASHER 6.5X20X1.6T 92022 92022-125 4
CLAMP,AIR CLANER DUC 92037 92037-1186 1
CLAMP 92037A 92037-171 1
SCREW PAN HEAD 6X12 220 220B0612 1
SCREW PAN HEAD 6X16 220A 220B0616 1
SCREW PAN HEAD 6X20 220B 220B0620 1
