Part Item Information

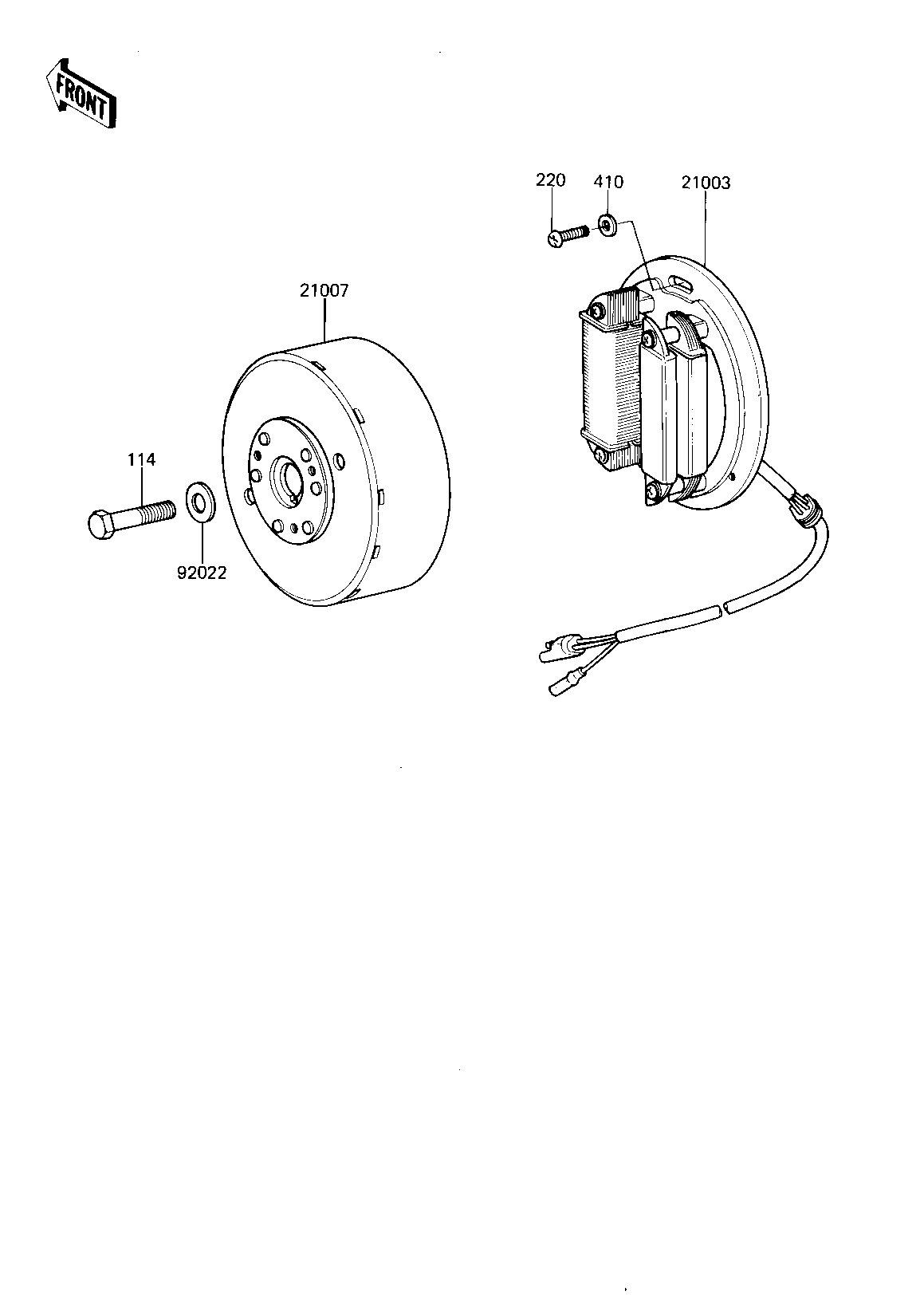

ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STATOR ASSY,MAGNETO 21003 21003-1029 1
FLYWHEEL,MAGNETO 21007 21007-1027 1
WASHER,PLAIN,8MM 92022 92022-276 1
BOLT,8X40 114 115G0840 1
SCREW PAN HEAD 6X16 220 220B0616 2
WASHER PLAIN 6MM 410 410B0600 2
