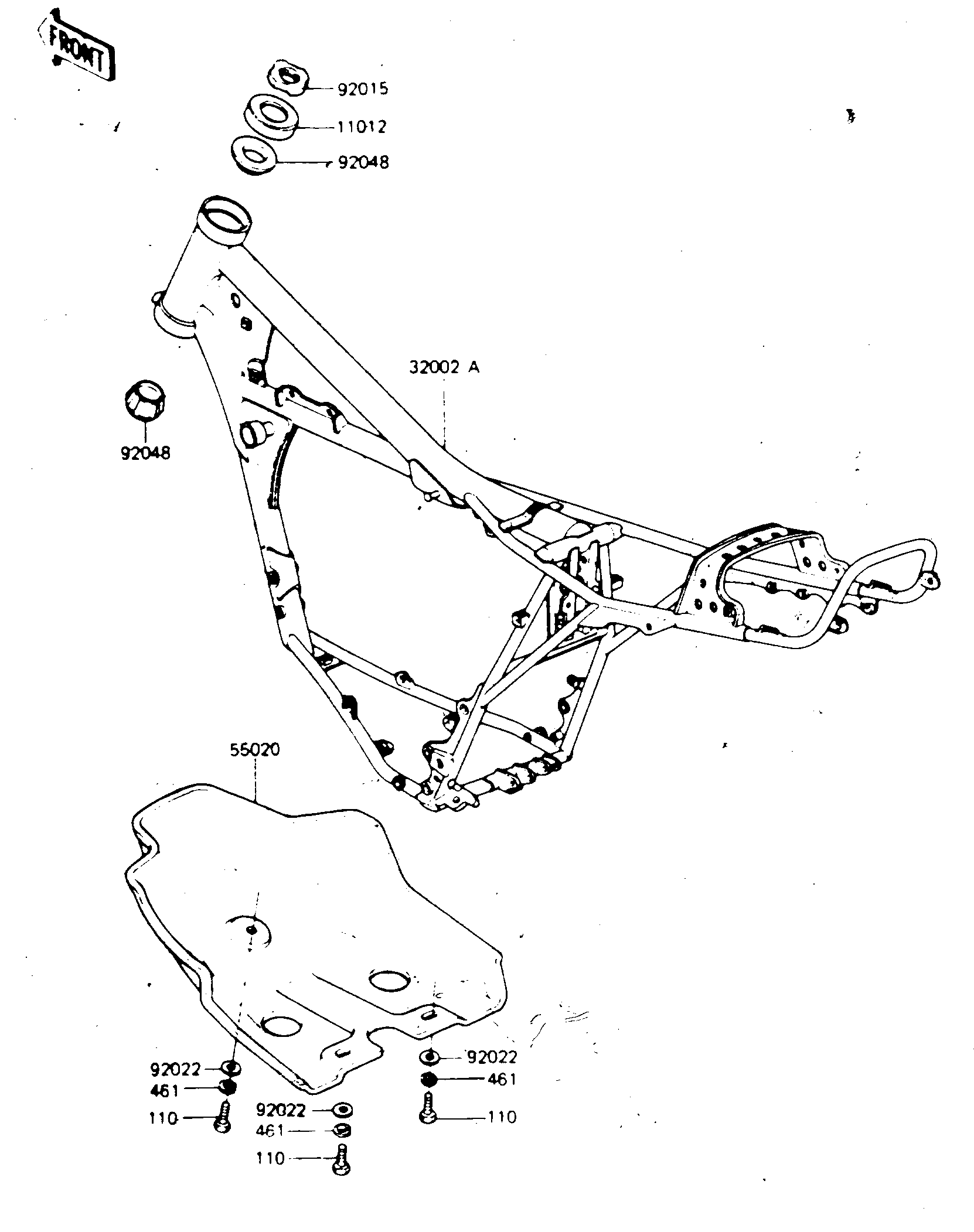

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,STEERING STEM 11012 46098-015 1
FRAME-COMP 32002A 32002-1322 1
GUARD,ENGINE 55020 55020-1040 1
NUT 92015 92015-1546 1
WASHER 6.5X20X1.6T 92022 92022-125 3
BEARING,STEERING STE 92048 92047-017 2
BOLT-UPSET,6X16 110 112G0616 3
WASHER SPRING 6MM 461 461F0600 3
