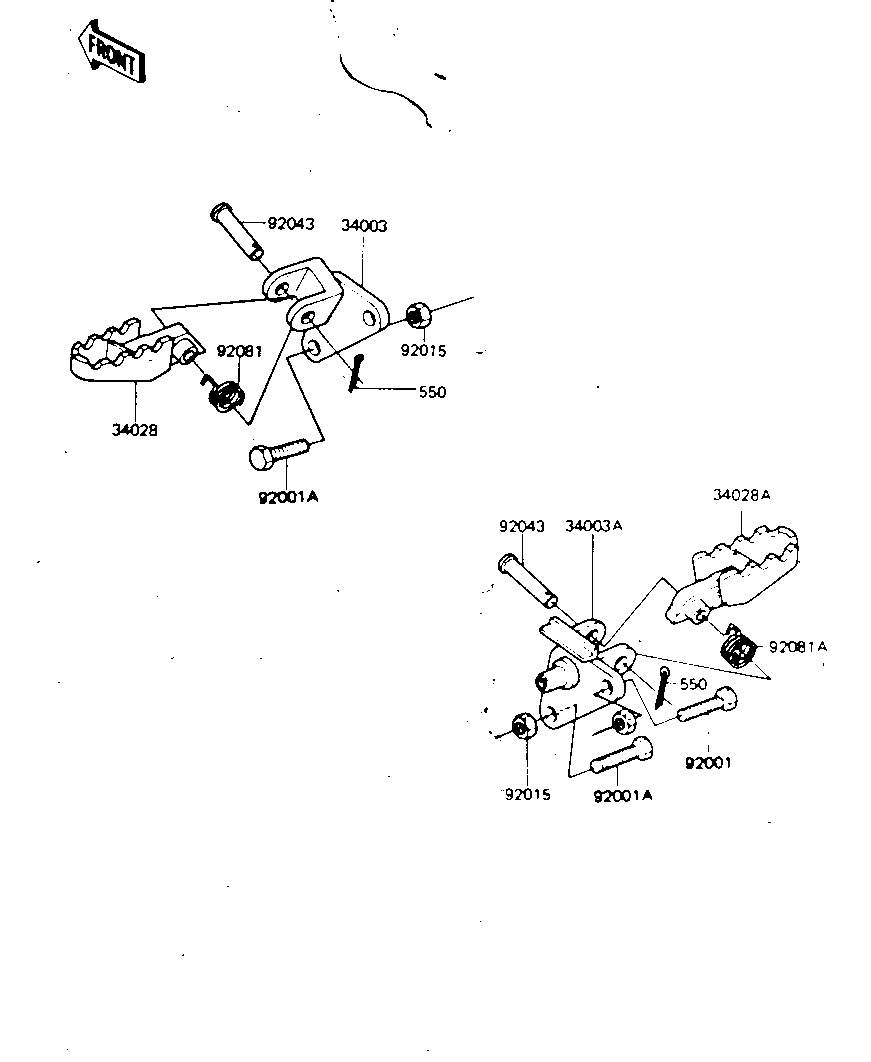

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,FOOTRST STEP, 34003 34003-1054 1
HOLDER-STEP,RH 34003A 34003-1088 1
STEP,FOOTREST,L.H 34028 34028-1026 1
STEP,FOOTREST,R.H 34028A 34028-1027 1
BOLT,8X32 92001 92001-1438 1
BOLT,8X50 92001A 92001-1439 2
NUT,8MM 92015 92015-1134 3
PIN,FOOTRST STEP FIT 92043 92043-1069 2
SPRING,L.H,FOOTREST 92081 92081-1254 1
SPRING,R.H,FOOTREST 92081A 92081-1255 1
PIN,COTTER,2.5X18 550 550D2518 2
