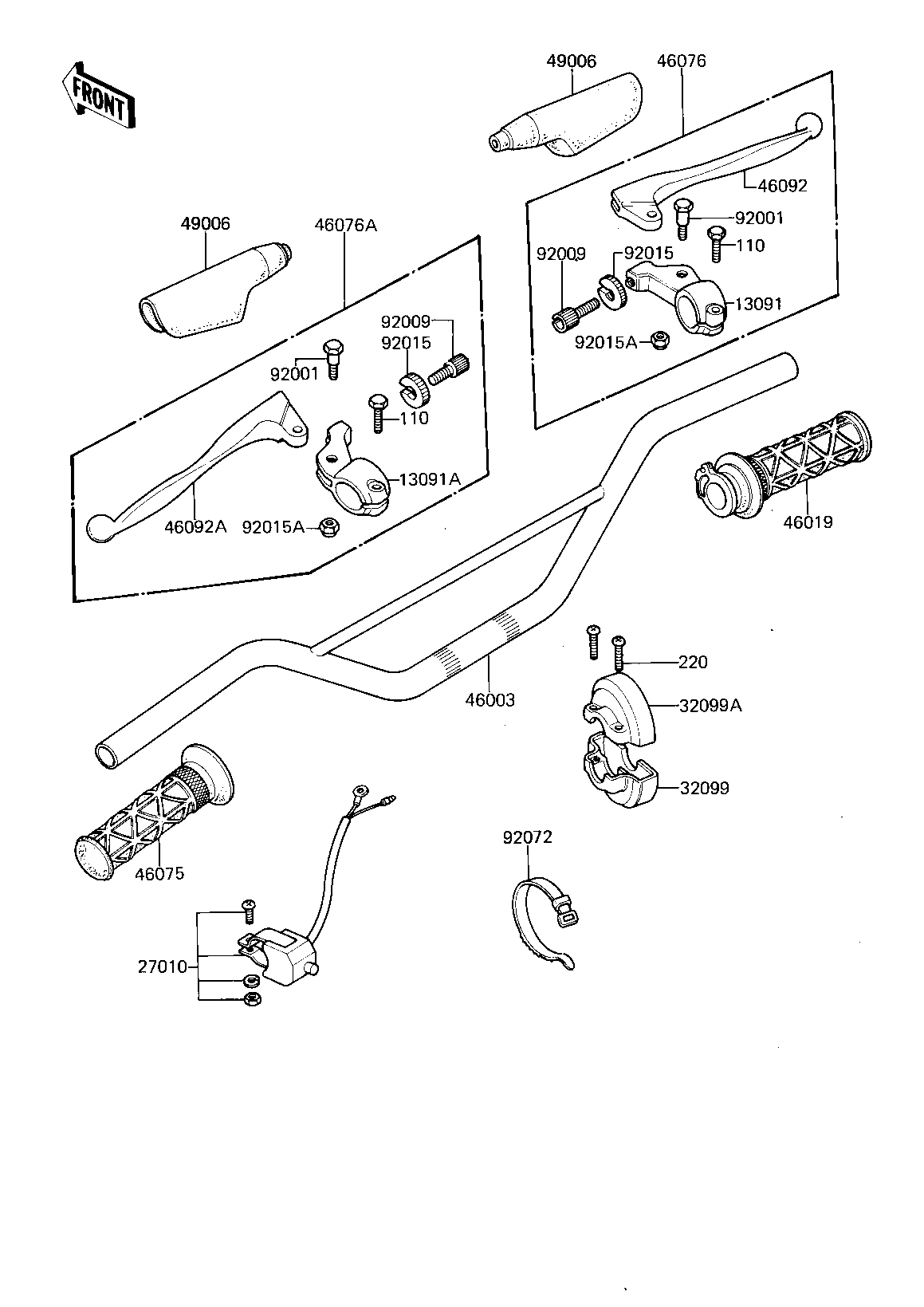

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
HOLDER,F.BRAKE LEVER | 13091 | 46060-010-21 | 1 | ||
HOLDER,CLUTCH LEVER | 13091A | 46094-014-21 | 1 | ||
SWITCH,ASSY,ENG STOP | 27010 | 27010-1018 | 1 | ||
HOUSING CONTROL,R.H. | 32099 | 32099-1011 | 1 | ||
CASE,R.H,GRIP,UPPER | 32099A | 32099-1014 | 1 | ||
HANDLEBAR | 46003 | 46003-1054 | 1 | ||
GRIP-ASSY | 46019 | 46019-1012 | 1 | ||
GRIP | 46075 | 46075-1015 | 1 | ||
LEVER ASSY,FRONT BRA | 46076 | 46076-1003 | 1 | ||
LEVER ASSY,CLUTCH | 46076A | 46076-1004 | 1 | ||
FRONT BRAKE LEVER | 46092 | 46058-018 | 1 | ||
LEVER, CLUTCH | 46092A | 46092-021 | 1 | ||
DUST COVER | 49006 | 46071-003 | 2 | ||
BOLT,HEX HEAD,6MM | 92001 | 92001-140 | 2 | ||
SCREW,CABLE ADJUST | 92009 | 46055-009 | 2 | ||
NUT,CABLE ADJUST LOC | 92015 | 46056-006 | 2 | ||
NUT | 92015A | 92019-008 | 2 | ||
BAND,SHORT | 92072 | 92072-030 | 2 | ||
BOLT-UPSET | 110 | 112N0620 | 2 | ||
SCREW PAN HEAD 5X20 | 220 | 220B0520 | 2 |
HOLDER,F.BRAKE LEVER | |
REF # | 13091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER,CLUTCH LEVER | |
REF # | 13091A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH,ASSY,ENG STOP | |
REF # | 27010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOUSING CONTROL,R.H. | |
REF # | 32099 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE,R.H,GRIP,UPPER | |
REF # | 32099A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HANDLEBAR | |
REF # | 46003 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GRIP-ASSY | |
REF # | 46019 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GRIP | |
REF # | 46075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER ASSY,FRONT BRA | |
REF # | 46076 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER ASSY,CLUTCH | |
REF # | 46076A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FRONT BRAKE LEVER | |
REF # | 46092 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER, CLUTCH | |
REF # | 46092A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DUST COVER | |
REF # | 49006 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,HEX HEAD,6MM | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,CABLE ADJUST | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,CABLE ADJUST LOC | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BAND,SHORT | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-UPSET | |
REF # | 110 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 5X20 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
