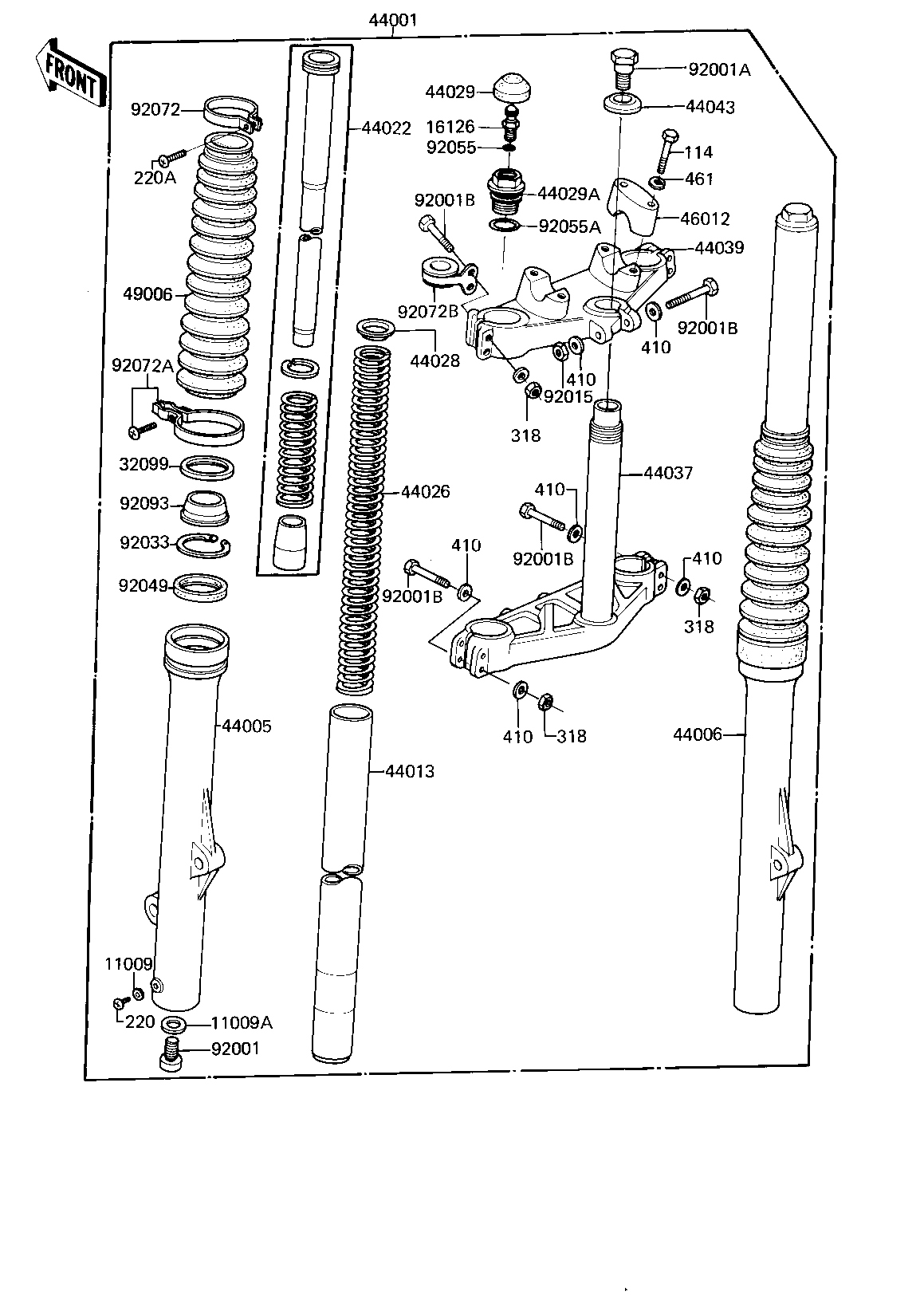

1982 KDX175 - FRONT FORK ('81-'82 A2/A3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET FORK DRAIN PL 11009 44045-002 2
GASKET,FORK CYLINDER 11009A 44045-057 2
VALVE ASSY,AIR 16126 16126-1003 2
CASE,DUST SHIELD 32099 32099-1002 2
FORK-FRONT 44001 44001-1256 1
TUBE,LH,FORK OUTER 44005 44005-1030 1
TUBE,RH,FORK OUTER 44006 44006-1030 1
TUBE,FORK INNER 44013 44013-1026 2
CYLINDER-FORK 44022 44022-1030 2
SPRING,FORK 44026 44026-1038 2
GUIDE,FORK SPRING 44028 44028-1004 2
CAP,RUBBER,FORK TOP 44029 44029-1009 2
CAP,FORK TOP 44029A 44029-1011 2
STEM,STEERING 44037 44037-1021 1
HEAD,STEERING STEM 44039 44039-1018 1
WASHER 44043 44043-052 1
HOLDER,HANDLE BAR 46012 46012-1003 2
BOOTS,FORK 49006 49006-1009 2
BOLT-FORK CYLINDER 92001 44041-040 2
BOLT,FORK TOP 92001A 44041-065 1
BOLT FLANGED 8X55 92001B 92001-1398 9
NUT,LOCK,8MM 92015 92015-1124 1
RING,SNAP,FORK OUTER 92033 92033-1005 2
OIL,SEAL,FORK OUTER 92049 92049-1009 2
"0" RING,AIR VALVE 92055 92055-1018 2
"0" RING,FORK TOP 92055A 92055-1051 2
BAND,BOOTS 92072 92072-1008 2
BAND,BOOTS L.H. 92072A 92072-1011 2
CLAMP,CABLE 92072B 92072-1040 1
DUST SHIELD,FORK 92093 92093-1007 2
BOLT,8X40 114 115G0840 4
SCREW PAN HEAD 4X8 220 220B0408 2
SCREW-PAN-CROS 220A 220B0420 1
NUT 8MM 318 318G0800 8
WASHER PLAIN 8MM 410 410B0800 16
WASHER SPRING 8MM 461 461F0800 4
