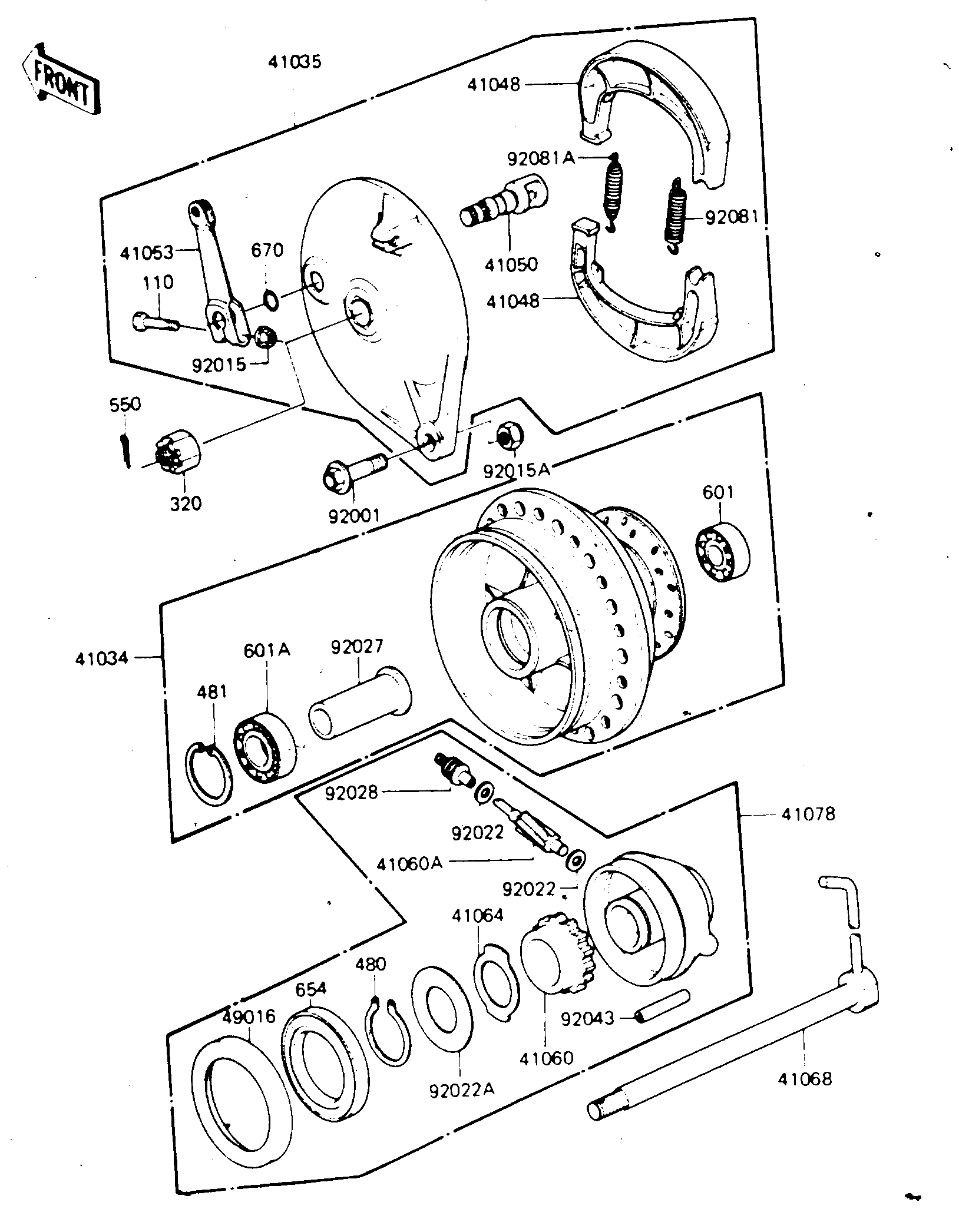

1982 KDX175 - FRONT HUB/BRAKE ('81-'82 A2/A3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM-ASSY,FR BRK 41034 41034-1016 1
PANEL-ASY,FR BRK 41035 41035-1070 1
SHOE-BRAKE 41048 41048-1015 2
CAM SHAFT,FR BRAKE 41050 41050-1016 1
LEVER,FR BRAKE CAM 41053 41053-1018 1
GEAR,SPEEDOMETER 41060 41059-024 1
PINION,SPEEDOMETER 41060A 41060-015 1
RECEIVER,SPEED GEAR 41064 41064-011 1
AXLE,FRONT 41068 41068-1042 1
CASE ASSY,SPEED GEAR 41078 41078-009 1
DUST COVER 49016 41042-013 1
BOLT,10X45 92001 92001-1182 1
NUT-6MM 92015 92015-1078 1
NUT,LOCK,10MM 92015A 92019-021 1
WASHER THRST SPD PIN 92022 41063-001 2
WASHER,THRUST 92022A 41065-004 1
COLLAR,FRONT BEARING 92027 92027-1073 1
BUSH,SPEEDMETER CABLE 92028 41062-005 1
PIN,SPRING 92043 41082-001 1
SPRING,BRAKE SHOE 92081 92081-1766 1
SPRING,BRAKE SHOE 92081A 92081-1550 1
BOLT-UPSET 110 112G0630 1
NUT-CASTLE 320 320G1200 1
CIRCLIP,19MM 480 480J1900 1
CIRCLIP.37MM 481 481J3700 1
PIN,COTTER,3.2X28 550 550D3228 1
BEARING-BALL,#6201LUC3/2A 601 601B6201U 1
BEARING-BALL,#6301U 601A 601B6301U 1
OIL SEAL 654 654A405208 1
"O" RING,12MM 670 670B2012 1
