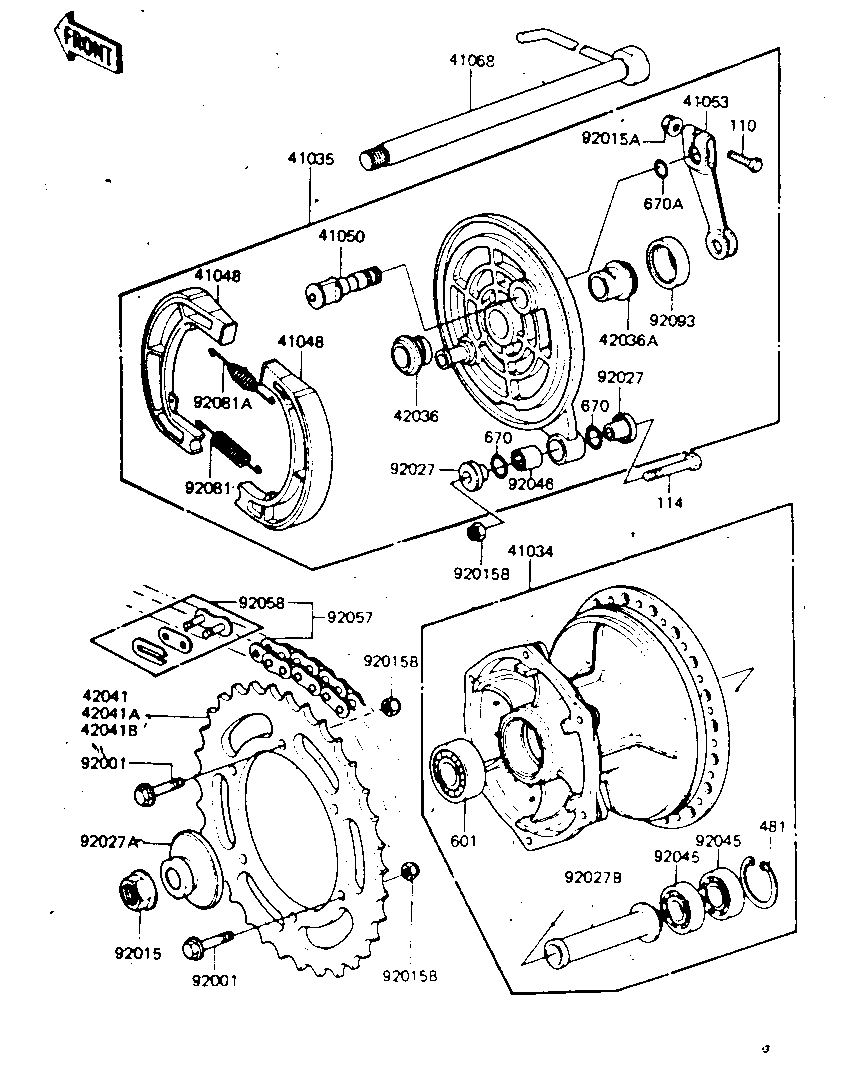

1982 KDX175 - REAR HUB/BRAKE/CHAIN ('81-'82 A2/A3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM-ASSY,RR BRK 41034 41034-1017 1
PANEL-ASY,RR BRK 41035 41035-1071 1
SHOE-BRAKE 41048 41048-1016 2
CAM SHAFT,RR BRAKE 41050 41050-1017 1
LEVER,FR BRAKE CAM 41053 41053-1019 1
AXLE,REAR 41068 41068-1043 1
SLEEVE,REAR BRAKE 42036 42036-1009 1
SLEEVE,REAR PANEL,R. 42036A 42036-1035 1
REAR SPROCKET,47T 42041 42041-1038 1 (OPTION)
REAR SPROCKET,50T 42041A 42041-1043 1 (OPTION)
REAR SPROCKET,52T 42041B 42041-1044 1
BOLT,HEX HEAD,8X32 92001 92001-1040 6
NUT,LOCK,16M/M 92015 92015-1013 1
NUT-6MM 92015A 92015-1078 1
NUT,8MM 92015B 92015-1134 7
COLLAR 92027 92027-1040 2
COLLAR,REAR AXLE 92027A 92027-1206 1
COLLAR,REAR BRAKE 92027B 92027-1207 1
BEARING-BALL,#6003UC 92045 601B6003U 2
BEARING,NEEDLE 92046 92046-1009 1
CHAIN,520X118TR 92057 92057-1051 1
JOINT-CHAIN 92058 92058-1051 1
SPRING,BRAKE SHOE 92081 92081-1766 1
SPRING,BRAKE SHOE 92081A 92081-1550 1
OIL SEAL 92093 92093-1004 1
BOLT-UPSET 110 112G0630 1
BOLT,SMALL UPSET 114 115G0835 1
CIRCLIP,35MM 481 481J3500 1
BEARING-BALL,#6004UU 601 601B6004UU 1
"O" RING 670 670B2011 2
"O" RING,12MM 670A 670B2012 1
