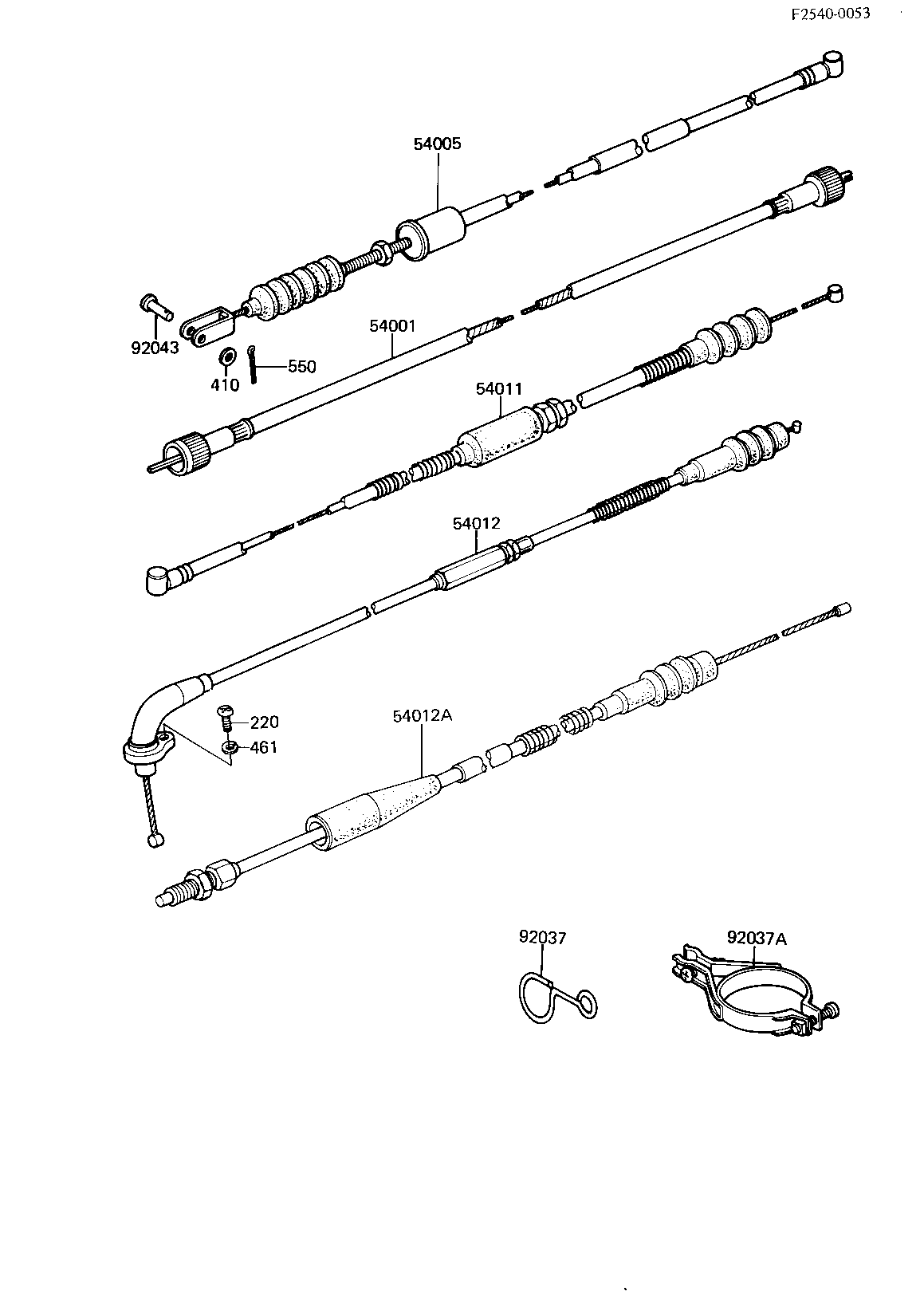

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CABLE,SPEEDOMETER 54001 54001-1020 1
CABLE,FRONT BRAKE 54005 54005-1020 1
CABLE,CLUTCH 54011 54011-1068 1
CLAM,CABLE 92037 92037-1064 1
CLAMP,CABLE 92037A 92037-1072 1
PIN-BRAKE ROD FITTIN 92043 92043-064 1
WASHER PLAIN 6MM 410 410B0600 1
PIN COTTER 2.0X15 550 550D2015 1
