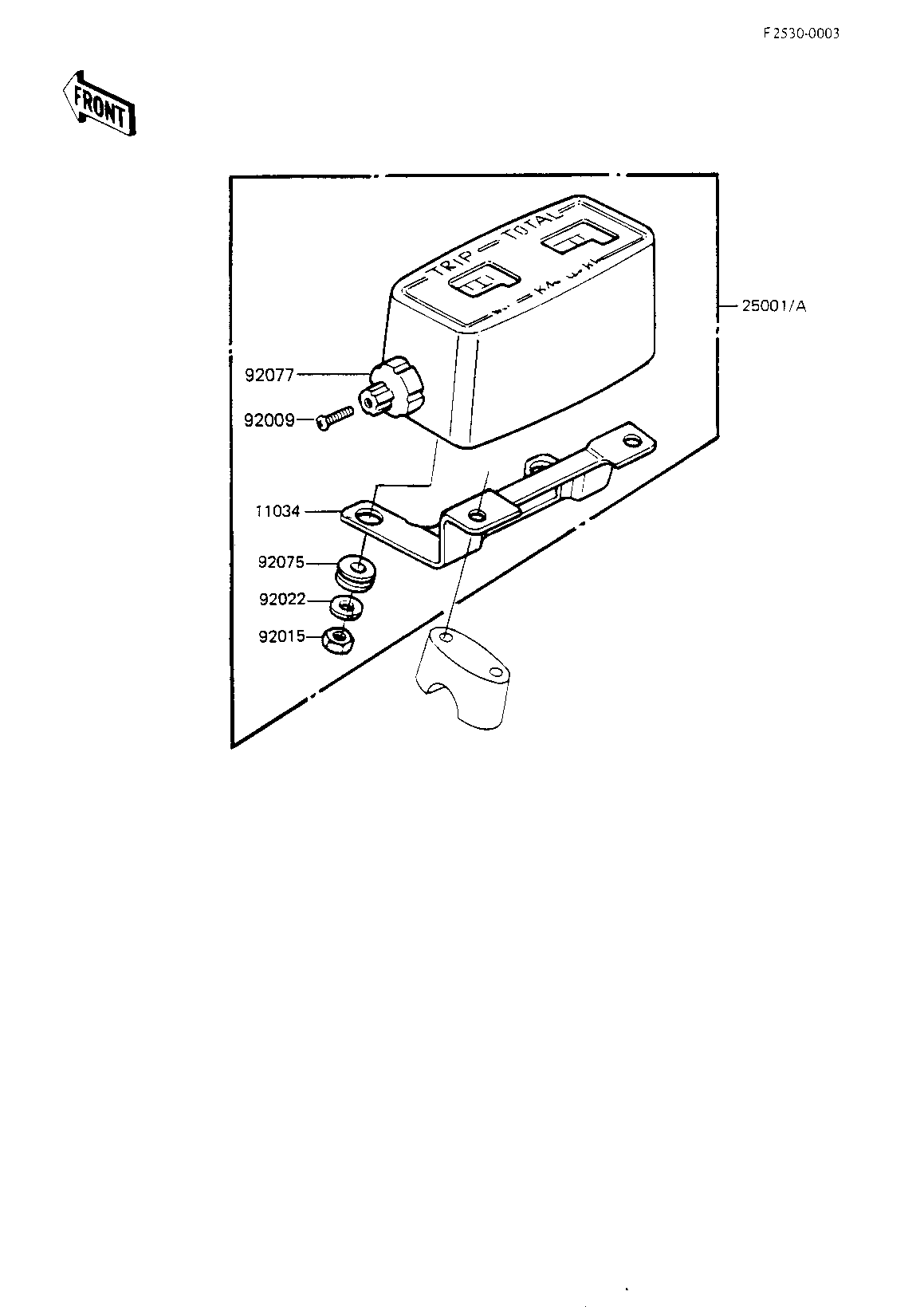

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,METER 11034 11034-1574 1
METER ASSY 25001 25001-1099 1 US
METER ASSY,KPH (Canada) 25001A 25001-1103 1 CN
SCREW-2X6 92009 92009-1159 1
NUT-CAP,5MM 92015 322C0500 2
WASHER,5.2X16X16X1.2 92022 25009-004 2
DAMPER RUBBER,METER 92075 92075-1209 2
KNOB-METER TRIP RESE 92077 92077-1013 1
