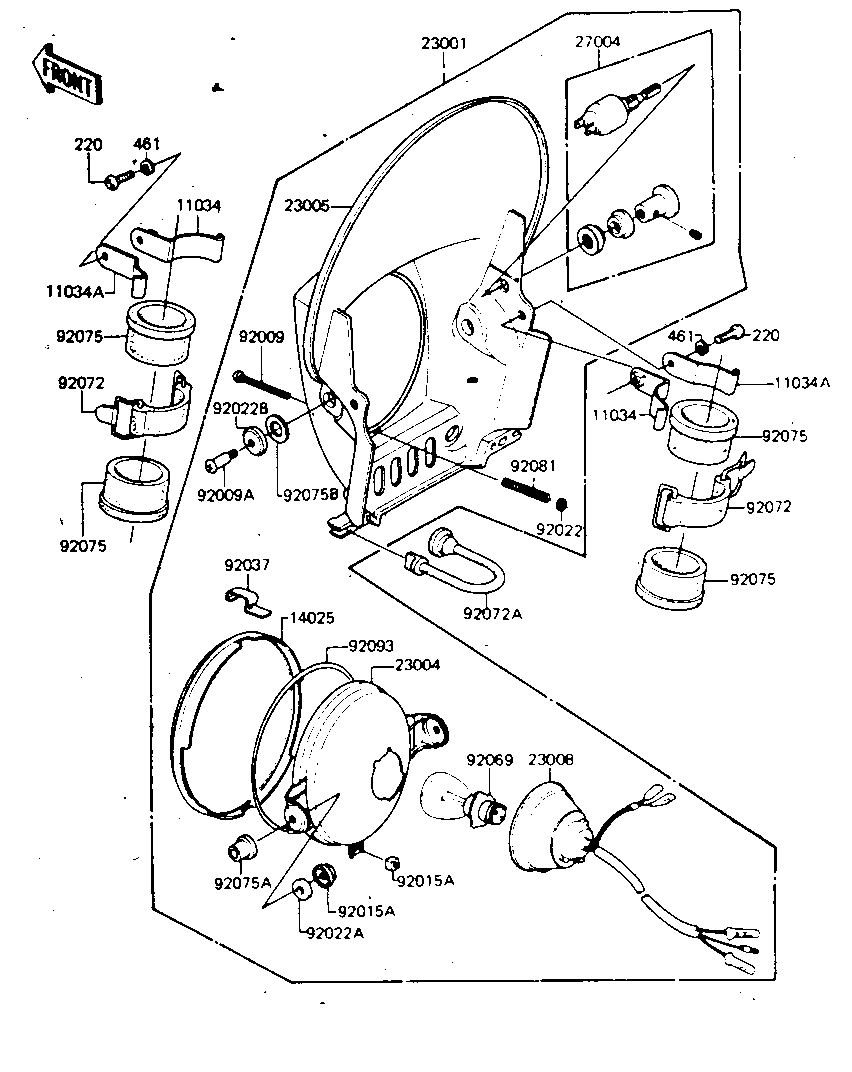

1982 KDX175 - HEADLIGHT ('81-'82 A2/A3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,HEAD LMP PFI | 11034 | 11034-1688 | 2 | ||
| BRACKET,HEAD LMP FIT | 11034A | 11034-1693 | 2 | ||
| COVER,HEAD LAMP | 14025 | 14025-4002 | 1 | ||
| HEAD LAMP ASSY | 23001 | 23001-4001 | 1 | ||
| LAMP,HEAD | 23004 | 23004-4001 | 1 | ||
| BODY-COMP-HEAD LAMP, | 23005 | 23005-5002-7F | 1 | ||
| SOCKET,HEAD LAMP | 23008 | 23008-4001 | 1 | ||
| SWITCH,HEAD LAMP | 27004 | 27004-4001 | 1 | ||
| SCREW,ADJUSTING,4X43 | 92009 | 92009-4002 | 1 | ||
| SCREW,HEAD LAMP | 92009A | 92009-4003 | 2 | ||
| NUT,4MM | 92015 | 23020-018 | 1 | ||
| NUT,HEAD LAMP RIM FI | 92015A | 23020-023 | 1 | ||
| WASHER | 92022 | 23021-004 | 1 | ||
| WASHER-PLAIN,5MM | 92022A | 23021-012 | 2 | ||
| WASHER,HEAD LAMP | 92022B | 92022-4005 | 2 | ||
| CLAMP,HEAD LAMP | 92037 | 92037-4001 | 3 | ||
| BULB,6V 35/25W | 92069 | 92069-4001 | 1 | ||
| BAND,FUEL TANK | 92072 | 92072-076 | 2 | ||
| BAND,HEAD LAMP | 92072A | 92072-077 | 2 | ||
| DAMPER,HEAD LMP FITT | 92075 | 92075-1236 | 4 | ||
| DAMPER,HEAD LAMP | 92075A | 92075-4009 | 2 | ||
| DAMPER,HEAD LAMP | 92075B | 92075-4010 | 2 | ||
| SPRING,FOCUS ADJUSTN | 92081 | 92081-4003 | 1 | ||
| SEAL,HEAD LAMP | 92093 | 92093-4001 | 1 | ||
| SCREW PAN HEAD 6X16 | 220 | 220B0616 | 2 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 2 |
