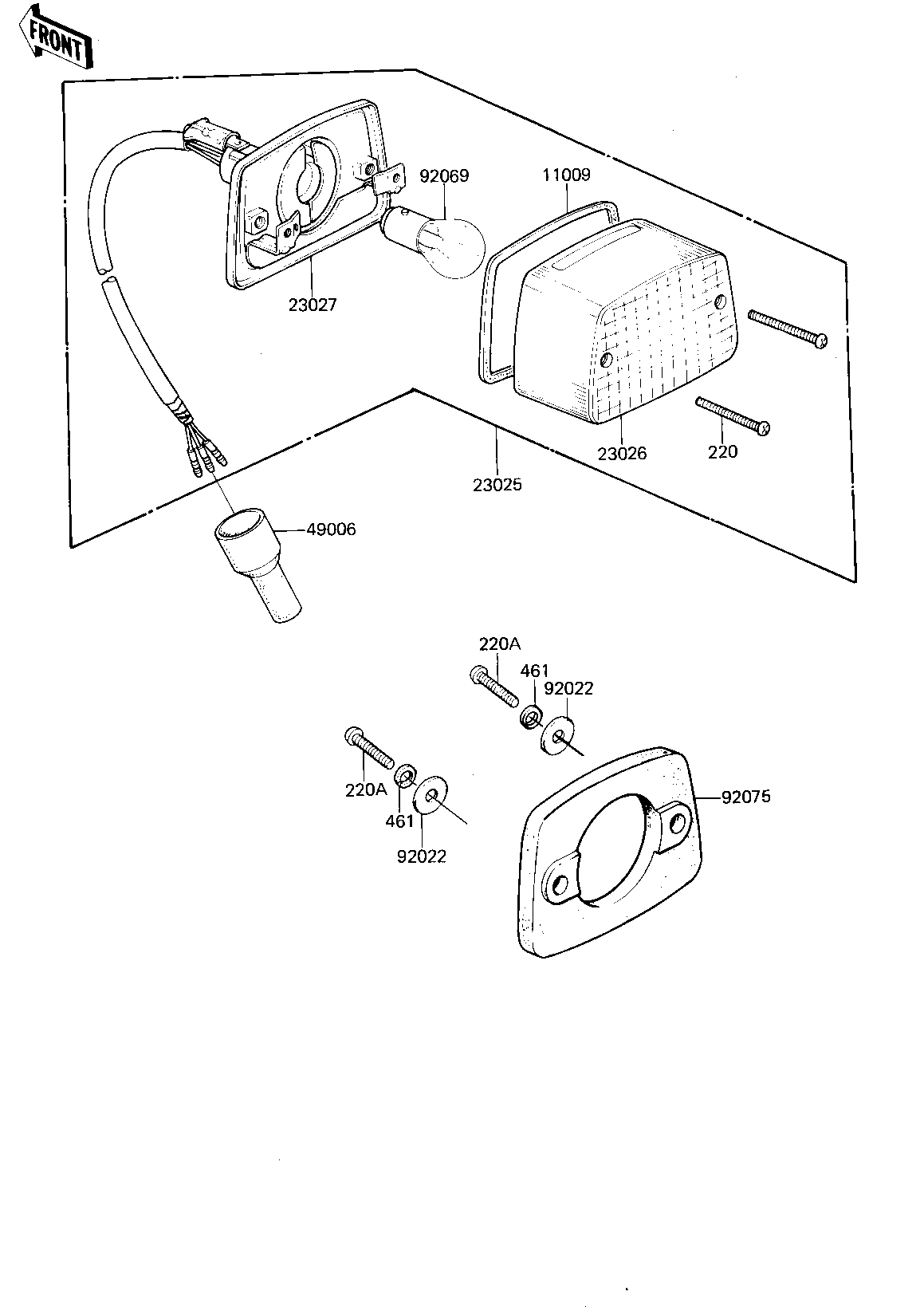

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TAIL LIGHT 11009 23028-020 1
LAMP,TAIL 23025 23025-075 1
LENS,TAIL LAMP 23026 23026-040 1
CASE,TAIL LAMP 23027 23027-044 1
BOOT,HARNESS COVER 49006 49006-1048 1
WASHER,PLAIN,6MM 92022 92022-263 2
BULB,6V 17/5.3W 92069 92069-028 1
DAMPER RUBBER 92075 92075-4014 1
SCREW-PAN-CROS 220 220B0330 2
SCREW PAN HEAD 5X20 220A 220B0520 2
WASHER SPRING 5MM 461 461F0500 2
