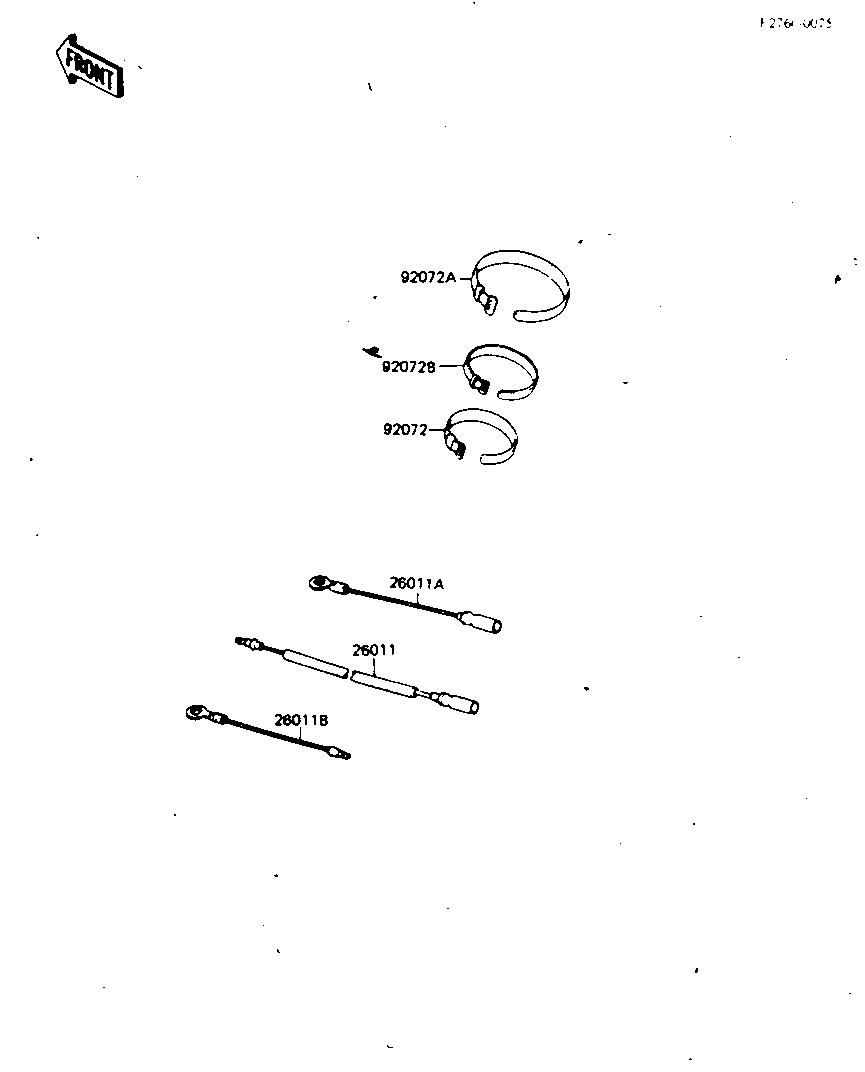

1982 KDX175 - CHASSIS ELECTRICAL EQUIPMENT ('81-'82 A2

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WIRE,LEAD 26011 26011-1067 1
WIRE,LEAD 26011A 26011-1068 1
WIRE,LEAD 26011B 26011-1069 1
BAND,SHORT 92072 92072-030 4
BAND,LONG 92072A 92072-032 2
BAND,WIRING HARNESS 92072B 92072-056 2
