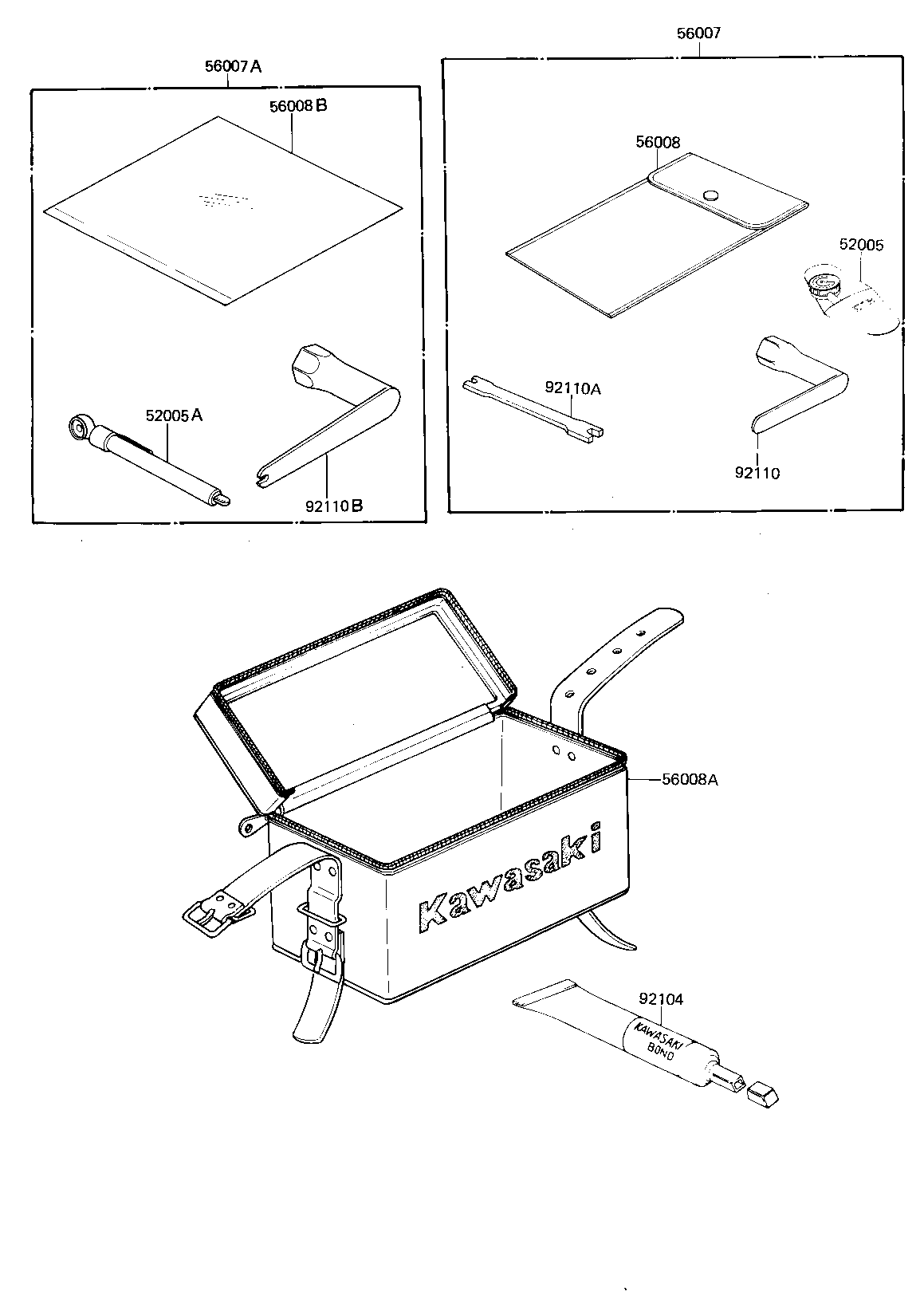

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GAUGE,AIR 52005A 52005-4002 1
TOOLKIT 56007A 56007-1142 1
BAG,TOOLKIT 56008A 56008-1013 1
BAG 56008B 56008-1018 1
LIQUID GASKET 92104 92104-002 1
TOOL-WRENCH,BOX&SPOK 92110B 92110-1041 1
