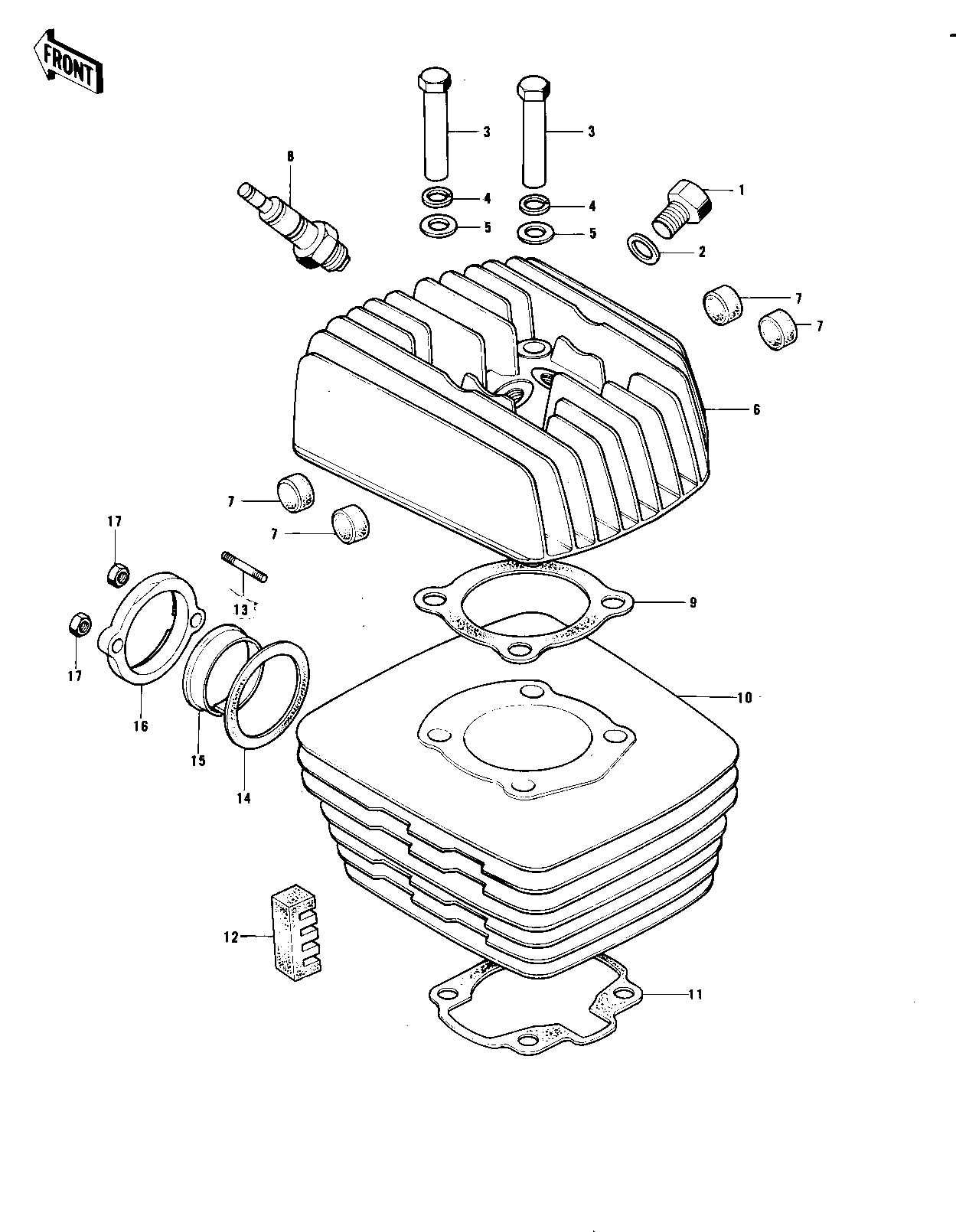

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLUG-CYLINDER HEAD 1 92067-005
GASKET-CYL HEAD PLUG 2 92065-068
NUT 8MM 3 92015-020
WASHER SPRING 12MM 4 461F1200
WASHER PLAIN 12MM 5 92022-072
CYLINDER HEAD,BLACK 6 11001-104-21 FLAT BLACK
DAMPER RUBBER 7 92075-075
SPARK PLUG B9HS1 8 B9HS1
GASKET-CYLINDER HEAD 9 11004-042
CYLINDER,F.BLACK 10 11005-1025 FLAT BLACK
GASKET,CYLINDER BASE 11 11009-041
DAMPER RUBBER-CYLNDER 12 92075-142
STUD 8X30 13 172G0830
GASKET EXHAUST PIPE 14 18067-008
INSERT,EXHAUST HOLDER 15 18070-007
HOLDER,EXHAUST PIPE 16 18069-051
HOLDER,EXHAUST 16 18069-049 KE175-B2/-B3
NUT,LOCK,8MM 17 92017-013
