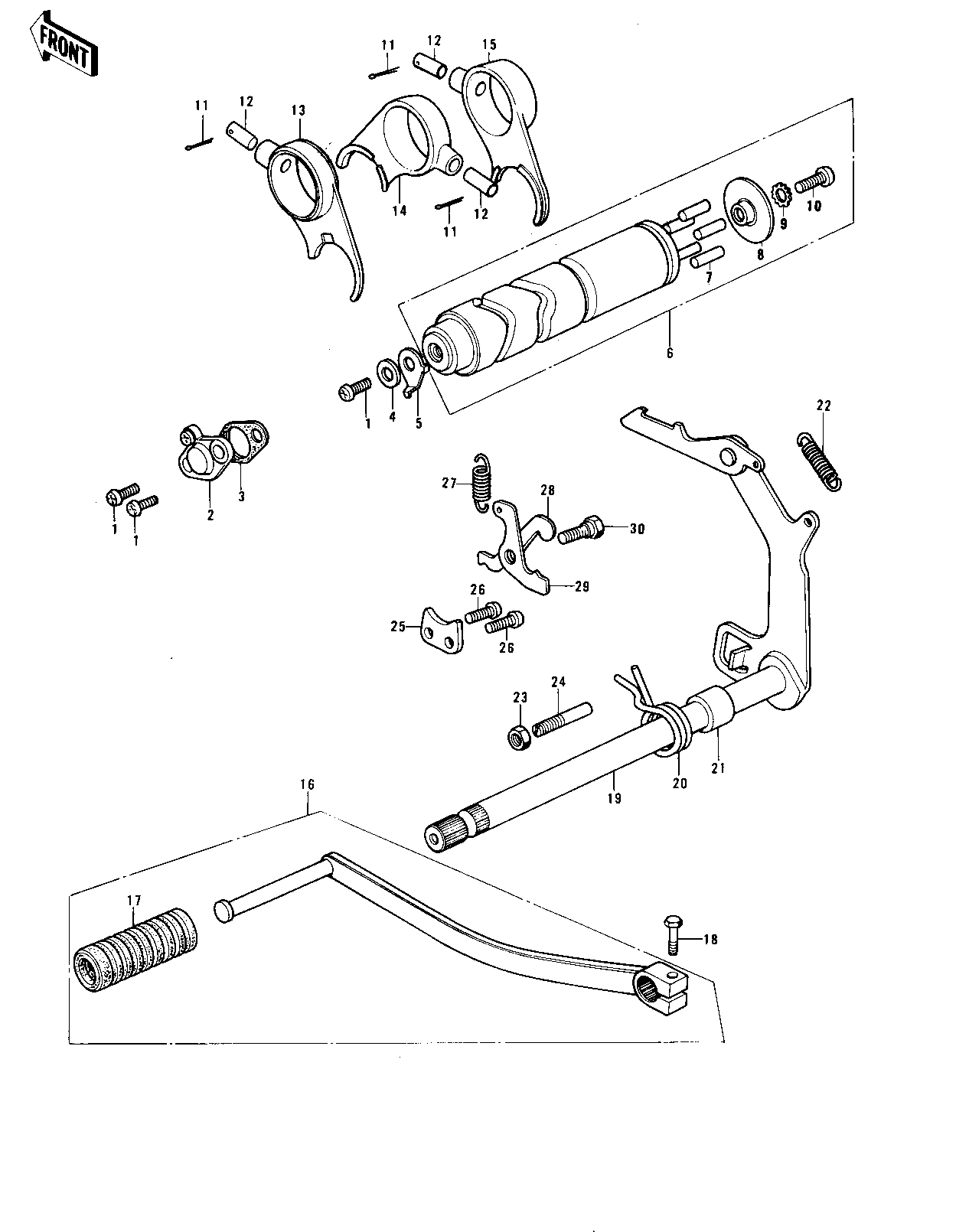

1978 KE175 - GEAR CHANGE MECHANISM

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW PAN HEAD 6X16 1 220B0616
SWITCH,NEUTRAL 2 13151-1001
SWITCH,NEUTRAL 2 13151-1001 KE175-B3
GASKET NEUTRAL SWITCH 3 13146-002
WASHER PLAIN 6MM 4 410B0600
ROTOR,NEUTRAL INDICTR 5 21007-1003
ROTOR,NEUTRAL INDICTR 5 21007-1003 KE175-B3
DRUM ASSY-GEAR CHANGE 6 13239-002
PIN GEAR CHANGE DRUM 7 92042-014
PLATE-CHANGE DRUM PIN 8 13142-009
WASHER LOCK 6MM 9 464H0600
SCREW PAN HEAD 6X14 10 220B0614
PIN COTTER 3.0X20 11 550D3020
PIN SELECT FORK GUIDE 12 92043-005
FORK-SELECTOR 13 13140-030
FORK-SELECTOR,TOP 14 13140-049
FORK-SELECTOR,LOW 15 13140-050
PEDAL,GEAR CHANGE 16 13156-064
RUBBER CHANGE PEDAL 17 13157-004
BOLT-UPSET,6X20 18 112G0620
LEVER ASSY GEAR CHNG 19 13161-019
SPRING,TENTION 20 92081-1129
SPRING,TENTION 20 92081-1129 KE175-B2/-B3
COLLAR 21 92027-121
SPRING,CHANGE LEVER 22 92144-1720
NUT 8MM 23 312B0800
BOLT,RETURN SPRING 24 92001-1401
PLATE CHNG DRUM PSTN 25 13169-002
SCREW PAN HEAD 6X14 26 220B0614
SPRING-COIL 27 92081-091
LEVER-CHANGE DRUM,B 28 13168-017
LEVER-GEAR CHNG DRUM 29 13168-021
SCREW-PAN HEAD 30 92011-023
