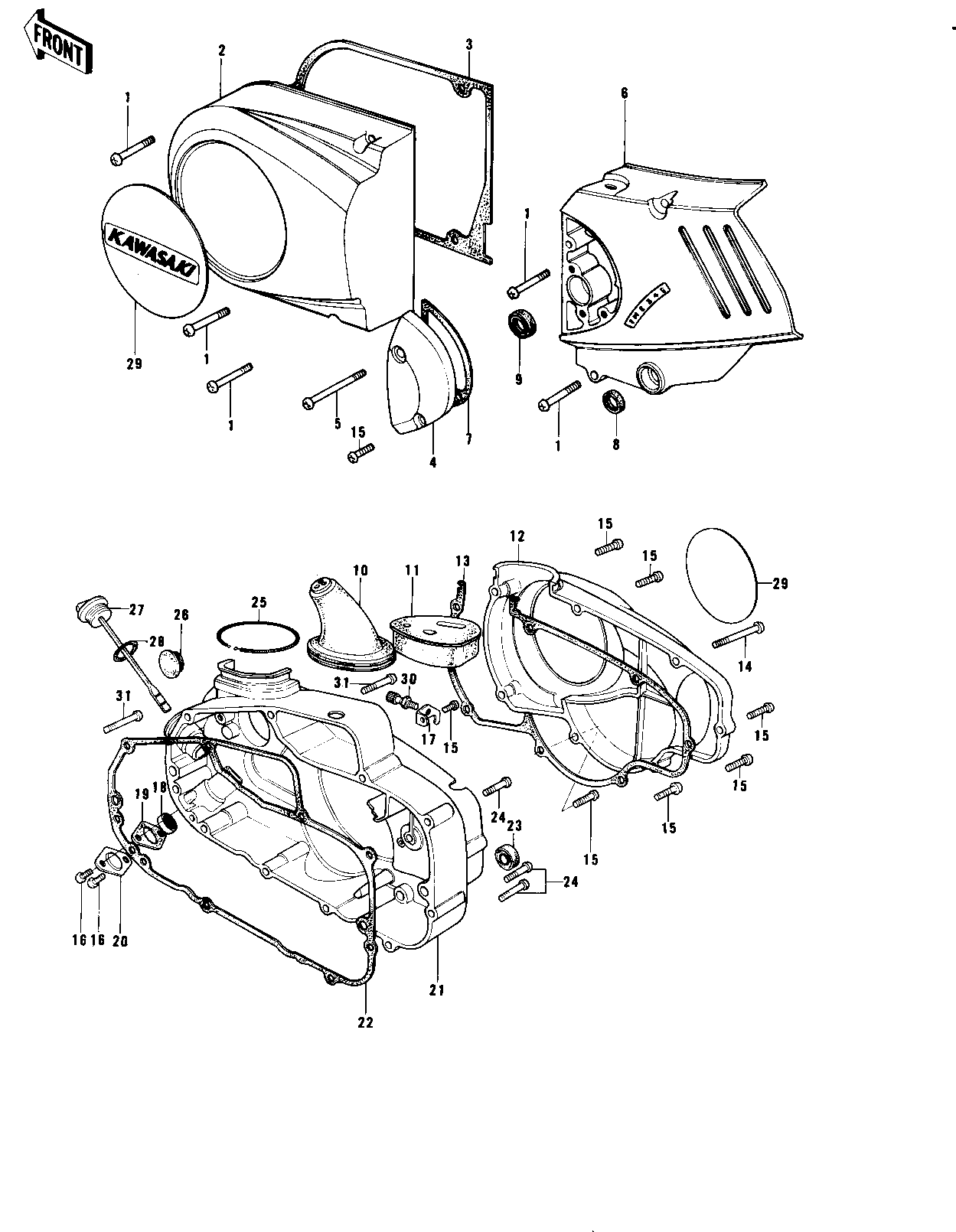

1978 KE175 - ENGINE COVERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW PAN HEAD 6X45 1 220B0645
COVER,L.H ENGINE,BARE 2 14031-091-2H BARREL
GASKET,L.H ENGINE COV 3 14045-024
COVER,CLUTCH RELESE 4 14030-065-2H BARREL
SCREW PAN HEAD 6X80 5 220B0680
COVER,FRONT CHAIN,BAR 6 14026-031-2H BARREL
GASKET,CLUTCH REL COV 7 14049-005
SEAL-OIL 8 92049-1249
OIL SEAL,VC7205 9 92052-013
CAP,CARBURETOR 10 14038-043
CAP,CARBURETOR 11 14038-044
CAP,CLUTCH RELEASE,BL 12 14030-1004 BARREL
GASKET,CARBURETOR COV 13 14048-006
SCREW PAN HEAD 6X85 14 220B0685
SCREW PAN HEAD 6X20 15 220B0620
SCREW PAN HEAD 6X12 16 220B0612
HOLDER,OIL PUMP CABL 17 14044-011
DRAIN,FUEL 18 16116-006
GASKET,FUEL DRAIN 19 14049-006
CAP,FUEL DRAIN 20 14028-007
COVER,R.H ENGINE,BARE 21 14032-110-2H BARREL
GASKET,R.H ENGINE COV 22 14046-032
OIL SEAL TB16267 23 92051-003
SCREW PAN HEAD 6X35 24 220B0635
SPRING COIL 25 92081-047
CAP CARB MOUNT HOLE 26 14039-001
PLUG,OIL FILLER 27 16115-023
"0" RING,20MM 28 670B2020
EMBLEM,ENGINE COVER 29 56018-205
ADJUSTER,CABLE 30 16002-012
SCREW PAN HEAD 6X50 31 220B0650
