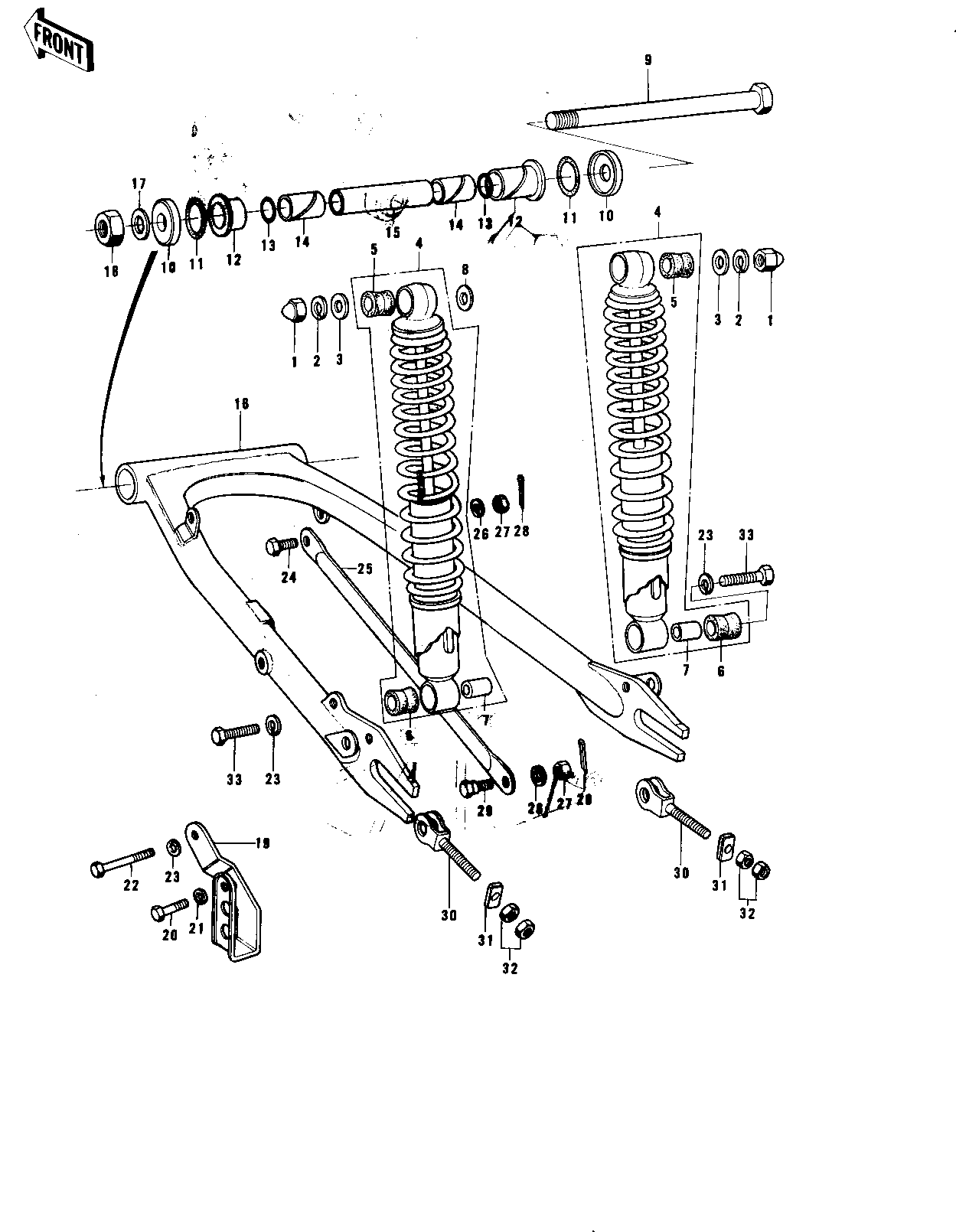

1978 KE175 - SWING ARM/SHOCK ABSORBERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT SHOCK ABSORBER 1 92020-003
WASHER SPRING 10MM 2 461F1000
WASHER-PL-10.5X26X2.3 3 92022-044
SHOCK ABSBR RR 4 45014-113
SHOCK ABSBR RR 4 45014-1017 KE175-B3
BUSH A-SHCK ABS RUBER 5 45017-010
BUSHING,RUBBER 6 92075-1020
BUSHING,RUBBER 6 92075-1020 KE175-B3
BUSH SHCK ABS PVT SFT 7 45016-003
WASHER PLAIN 12MM 8 410B1200
SHAFT-SWING ARM PIVOT 9 33032-034
CAP-SWINGING ARM 10 33035-005
"0" RING,30MM 11 671B2530
BUSHING-SWING ARM 12 33033-009
"0" RING,16MM 13 670B2016
"0" RING,16MM 13 92055-001 KE175-B2/-B3
SLEEVE-SWINGING ARM 14 33034-016
COLLAR,SWING ARM,LONG 15 33036-007
SWING ARM 16 33001-080
WASHER PLAIN 12MM 17 410B1200
NUT-LOCK,12MM 18 92019-009
GUARD,CHAIN 19 55020-016
BOLT-SMALL-UPSET,8X16 20 115G0816
WASHER SPRING 8MM 21 461F0800
BOLT,HEX HEAD,10X50 22 92001-1254 N/R KE175-B1/-B2
WASHER SPRING 10MM 23 461F1000
BOLT,HEX HEAD,AX24 24 92003-143
TORQUE LINK,REAR BRK 25 43007-039
WASHER SPRING 8MM 26 461F0800
NUT,8MM 27 320B0800
PIN COTTER 2.0X20 28 550D2020
BOLT,RR TORQUE LINK 29 92003-144
ADJUSTER,CHAIN 30 33040-073
PLATE,CHAIN ADJUSTER 31 33041-005
NUT,8MM 32 311B0800
BOLT HEX HEAD 10X35 33 113N1035
