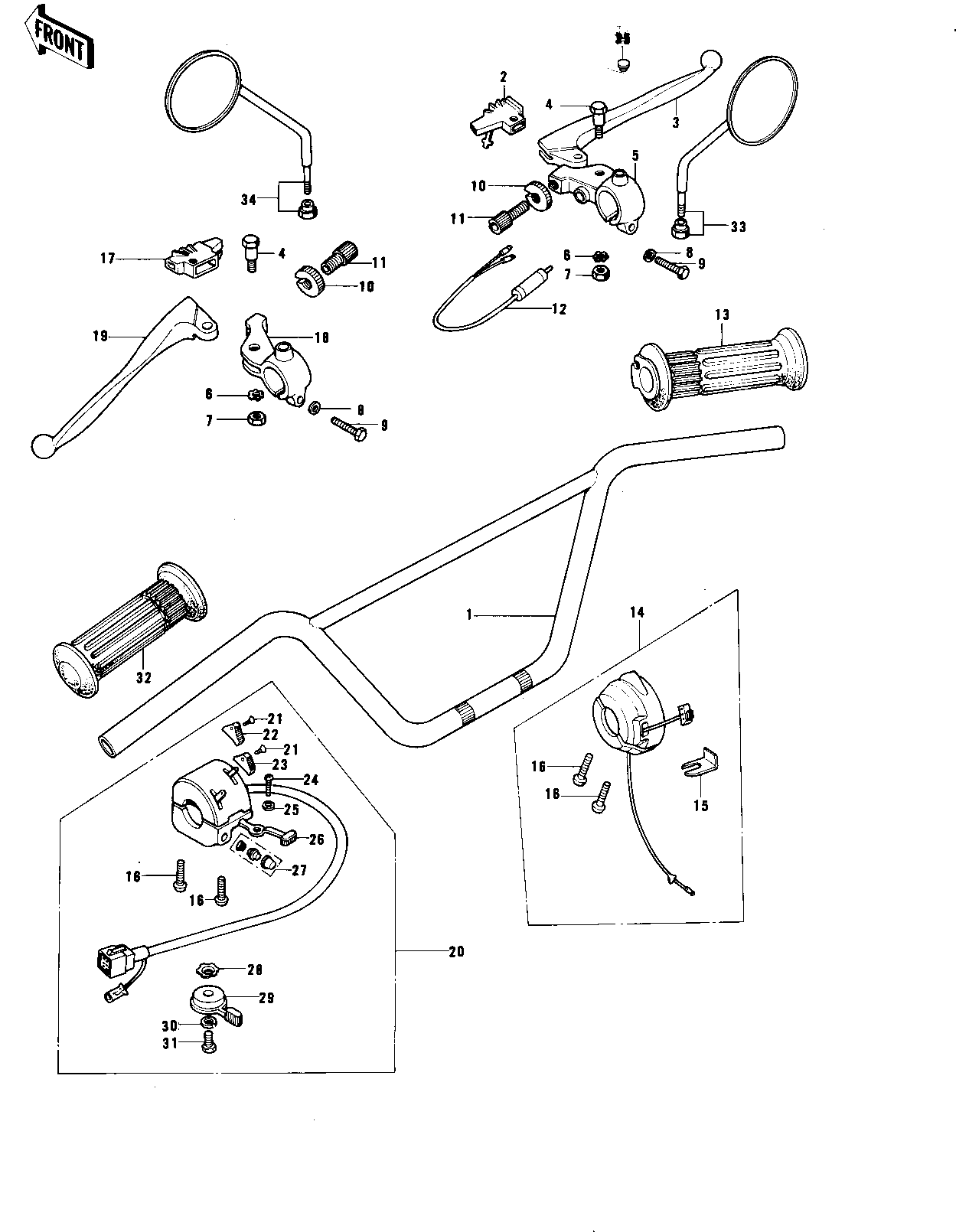

1978 KE175 - HANDLEBAR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HANDLEBAR 1 46004-033
BOOTS,LEVER HOLDER 2 49006-1017
LEVER FRONT BRAKE 3 46058-004
BOLT,HEX HEAD,5X22 4 92007-046
HOLDER-FR BRK LEV,BLK 5 46060-009-21
WASHER LOCK 5MM 6 464H0500 N/R KE175-B2/-B3
NUT-LOCK,5MM 7 92019-014
WASHER PLAIN 6MM 8 411B0600
BOLT HEX HEAD 6X25 9 110N0625
NUT-LOCK 10 46056-005
SCREW CABLE ADJUST 11 46055-003
SWITCH-FR. BRAKE LAMP 12 27021-004
GRIP ASSY,THROTTLE 13 46019-039
CASE ASSY,R.H 14 46018-047
HOLDER,CONTROL CABLE 15 46037-023
SCREW-PAN-CROS,5X25 16 220B0525
BOOTS,LEVER HOLDER 17 49006-1017
HOLDER-CLUTCH LEV,BLK 18 46094-011-21
LEVER-CLUTCH 19 46092-015
CASE ASSY,L.H 20 46091-050 USE FOR U.S.A. MARKET
CASE ASSY,L.H 20 46091-052 USE FOR CANADIAN MARKET
SCREW CNTSNK HD 3X8 21 221B0308A
KNOB-L.H SWITCH,B 22 46044-008
KNOB-L.H SWITCH 23 46044-011
SCREW PAN HEAD 3X5 24 220B0305A
WASHER 25 92095-010
KNOB-SWITCH 26 46044-007
SWITCH ASSY LH BUTTON 27 46078-003
WASHER LOCK 28 92095-012
LEVER,STARTER,BLACK 29 46096-008-10 BLACK
WASHER SPRING 6MM 30 461F0600
BOLT,6X10 31 112G0610
RUBBER,L.H GRIP 32 46075-029
REAR VIEW MIRROR,R.H 33 56002-020 OPTION
REAR VIEW MIRROR,L.H 34 56003-009
REAR VIEW MIRROR,L.H 34 56003-009 KE175-B2/-B3
CAP-RR VIEW MIRROR 35 92102-009 NOT REQUIRED FOR 56003-009
