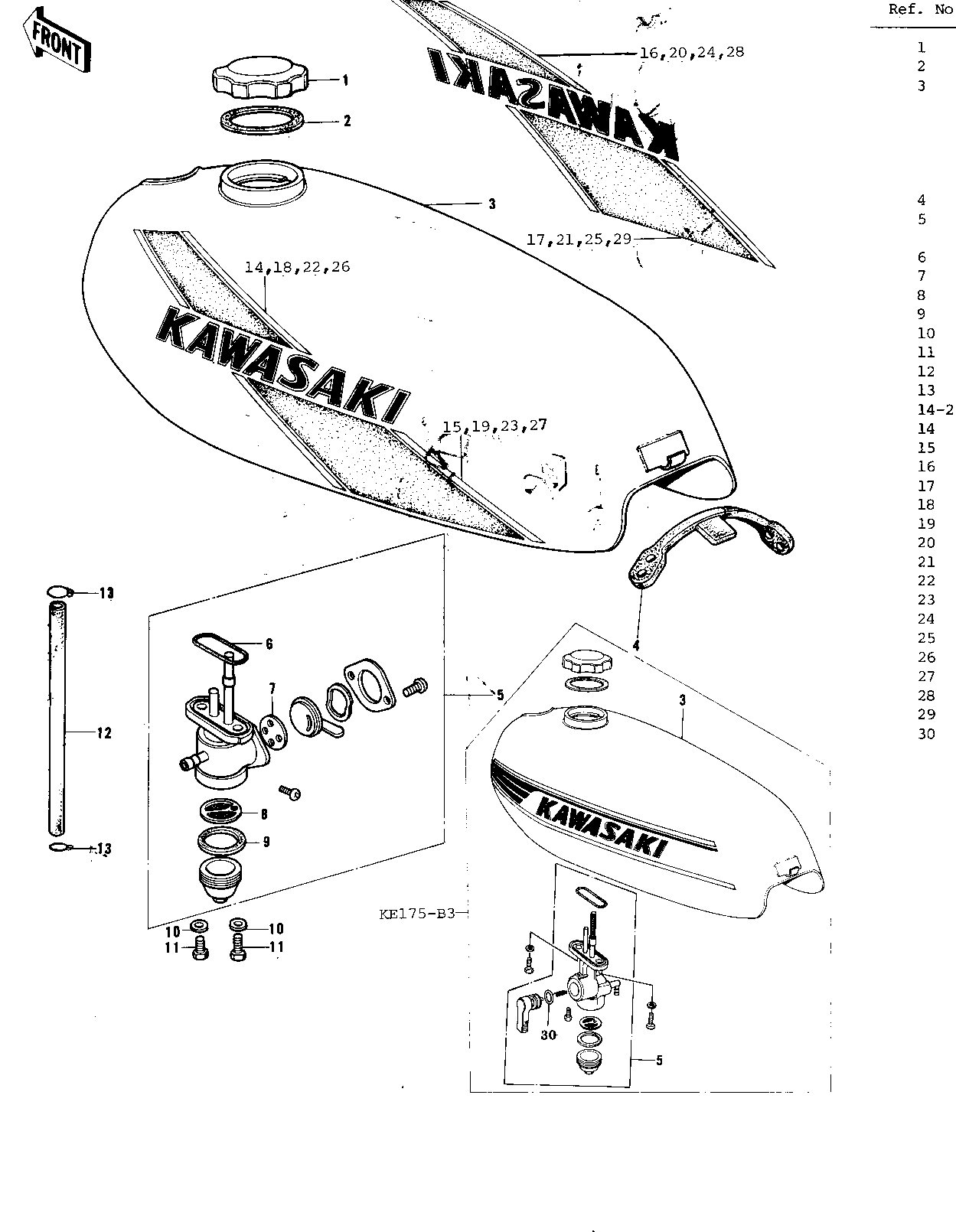

1978 KE175 - FUEL TANK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,FUEL TANK 1 51048-1013
GASKET,FUEL TANK CAP 2 51059-011
TANK-FUEL,C.GREEN 3 51001-101-3Z
TANK-FUEL,C.ORANGE 3 51001-101-4A
TANK-FUEL,PRUSSIAN BL 3 51001-101-4T KE175-B2
TANK-FUEL,C.LIGHT RED 3 51001-101-4R KE175-B2
TANK-FUEL,C.E.GREEN 3 51001-101-4U KE175-B3
TANK-FUEL,C.C.BLUE 3 51001-101-A4 KE175-B3
BAND,FUEL TANK 4 92072-075
TAP ASSY,FUEL 5 51023-1001
TAP ASSY,FUEL 5 51023-1001 KE175-B2/-B3
"O" RING 6 51039-003
GASKET-FUEL COCK LEV 7 92065-094
STRAINER,FUEL 8 51038-008
GASKET FUEL COCK CUP 9 51037-011
WASHER-PLAIN 10 92022-183
BOLT-HEX HEAD,6X16 11 92001-114
PIPE,FUEL 12 92059-108 L=460 M/M
CLAMP FUEL PIPE 13 92037-010
DECAL,L.H FL TK,UPP 14 56027-374-SP FOR CANDYTONE GREEN
DECAL,L.H FL TK,LOW 14 56027-375-SP FOR CANDYTONE GREEN
DECAL,R.H FL TK,UPP 16 56027-376-SP FOR CANDYTONE GREEN
DECAL,R.H FL TK,LOW 17 56027-377-SP FOR CANDYTONE GREEN
DECAL,L.H FL TK,UPP 18 56027-378-SP FOR CANDYTONE ORANGE
DECAL,L.H FL TK,LOW 19 56027-379-SP FOR CANDYTONE ORANGE
*** N.L.A.*** (Canada) 20 56027-380-SP FOR CANDYTONE ORANGE
DECAL,R.H FL TK,LOW 21 56027-381-SP FOR CANDYTONE ORANGE
DECAL,FUEL TANK,L.H.U 22 56029-058-SP FOR PRUSSIAN BLUE COLOR
DECAL,FUEL TANK,L.H.L 23 56029-059-SP FOR PRUSSIAN BLUE COLOR
DECAL,FUEL TANK,R.H.U 24 56029-060-SP FOR PRUSSIAN BLUE COLOR
DECAL,FUEL TANK,R.H.L 25 56029-061-SP FOR PRUSSIAN BLUE COLOR
DECAL,L.H FL TK,UPPER 26 56029-050-SP FOR CANDY LIGHT RED
DECAL,L.H FL TK,LOWER 27 56029-051-SP FOR CANDY LIGHT RED
DECAL,R.H FL TK,UPPER 28 56029-052-SP FOR CANDY LIGHT RED
DECAL,R.H FL TK,LOWER 29 56029-053-SP FOR CANDY LIGHT RED
"0" RING, 10MM 30 670B2010 FOR P/N 51023-052
