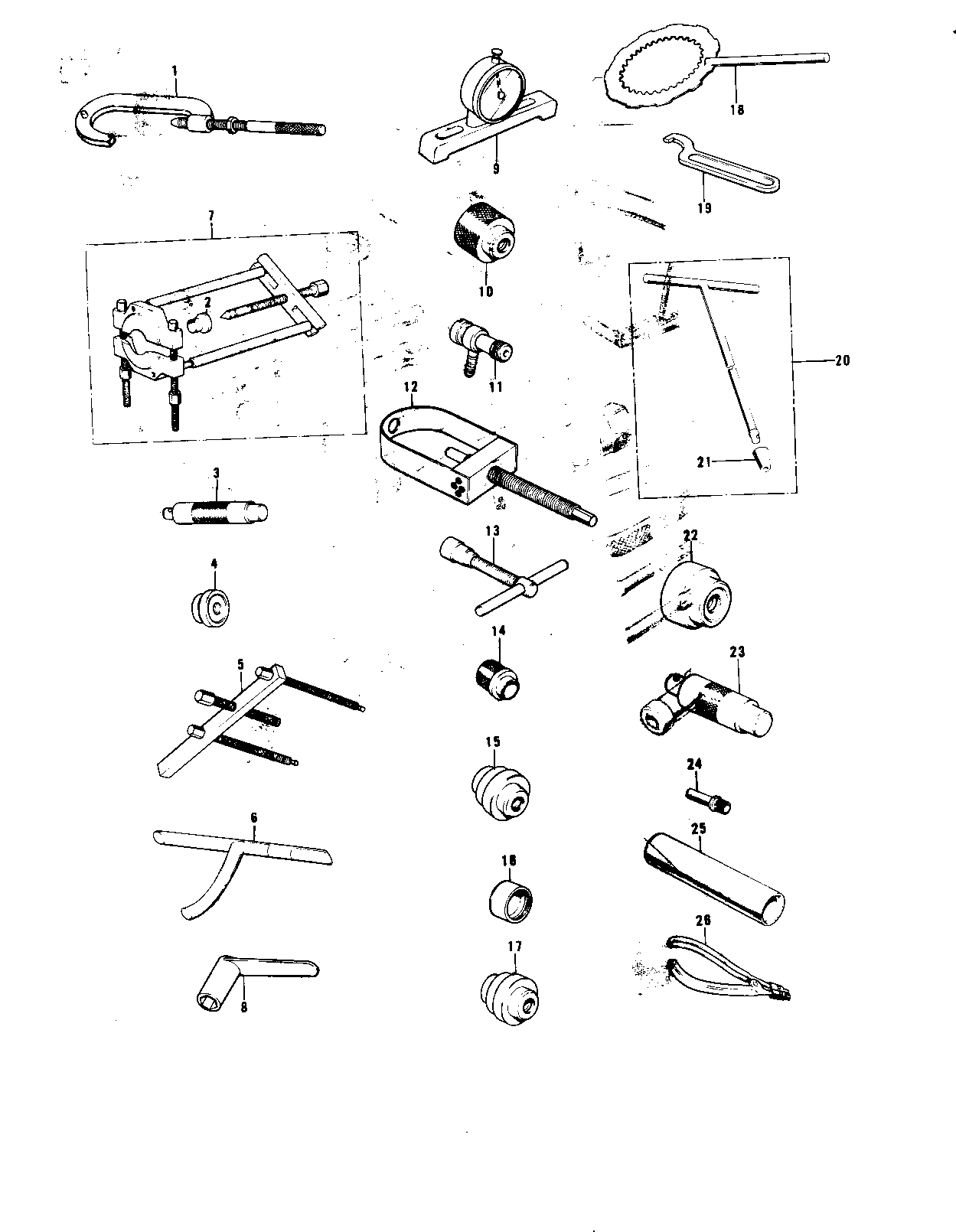

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
57001-1243 (Canada) 1 56019-040
*** N.L.A.*** (Canada) 2 57001-166
*** N.L.A.*** (Canada) 3 57001-139
57001-1129 (Canada) 4 57001-140
57001-1098 (Canada) 5 57001-153
57001-1243 (Canada) 6 57001-155
PULLER,STEM BEARING 7 57001-158
ADJUSTER,CLTCH RELESE 8 57001-159
FINDER-TDC 9 57001-160
*** N.L.A.*** (Canada) 10 57001-195
*** N.L.A.*** (Canada) 11 57001-206
57001-910 (Canada) 12 57001-233
PULLER,FLYWHEL MAGNET 13 57001-252
GUIDE,OIL SEAL 14 57001-263
57001-1129 (Canada) 15 57001-284
DRIVER,STEM BEARING 16 57001-292
*** N.L.A.*** (Canada) 17 57001-293
57001-1243 (Canada) 18 57001-303
57001-1100 (Canada) 19 57001-320
57001-1011 (Canada) 20 57001-179
57001-1011 (Canada) 21 57001-181
57001-1129 (Canada) 22 57001-282
57001-1129 (Canada) 23 57001-286
*** N.L.A.*** (Canada) 24 57001-130
DRIVER,STEM BEARING 25 57001-137
PLIERS-PISTON RING 26 57001-115
