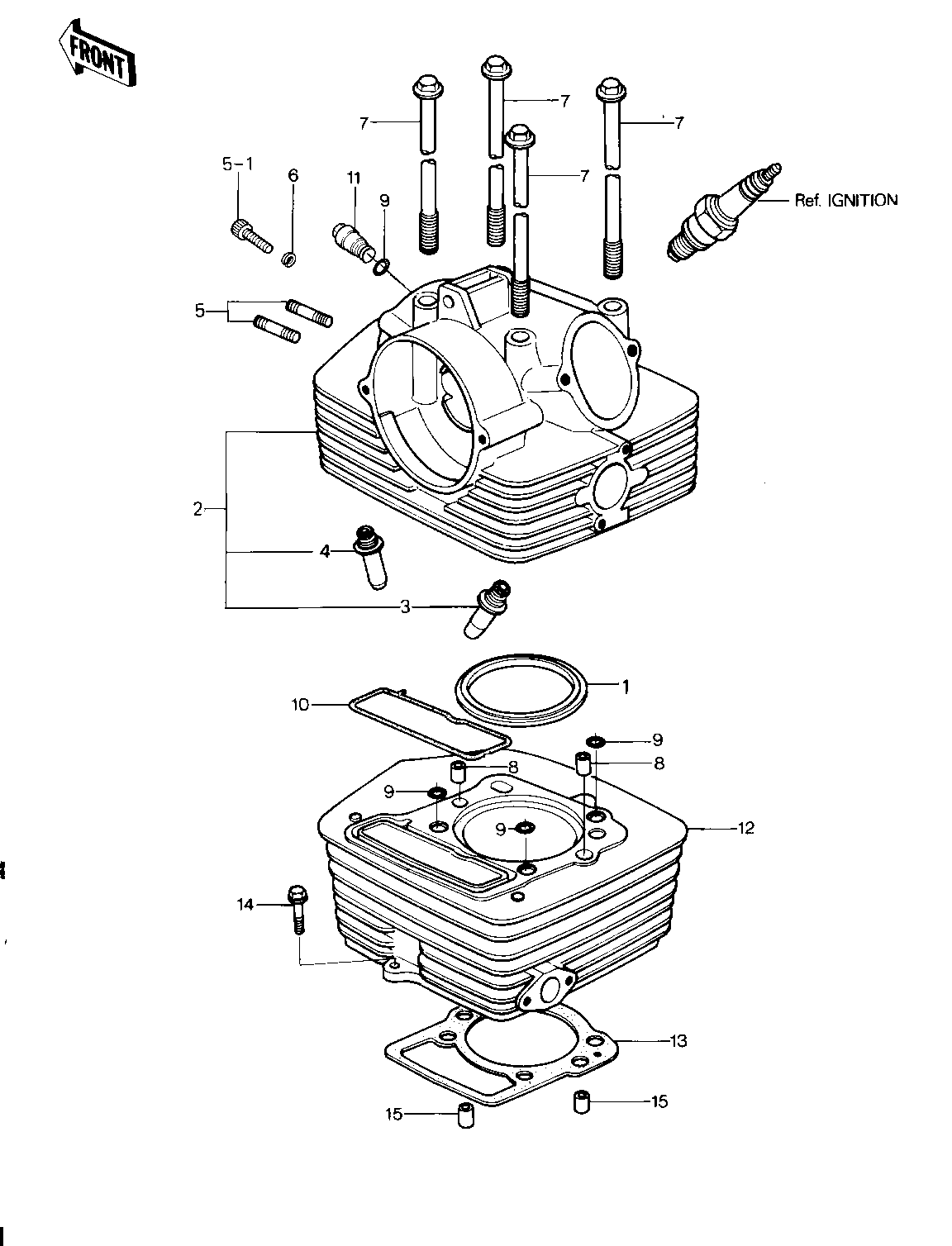

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CYLINDER HEAD 1 11004-1004 1
CYLINDER HEAD 2 11002-5023 1
GUIDE,INLET VALVE 3 12013-003 1
GUIDE,EXHAUST VALVE 4 49002-1010 1
STUD,8X30 5 92004-1069 2 USE FOR 11002-5021
BOLT,8X233 7 92003-220 4
PIN,DOWEL,10X8.2X14 8 92043-1037 2
RING-O,10MM 9 92055-1149 4
"0" RING 10 92055-105 1
PLUG,TACHOMETER GEAR 11 92066-060 1
CYLINDER-ENGINE 12 11006-1011 1
GASKET,CYLINDER BASE 13 11009-043 1
BOLT 14 92003-202 1
PIN,DOWEL,10X8.2X14 15 92043-1037 2
