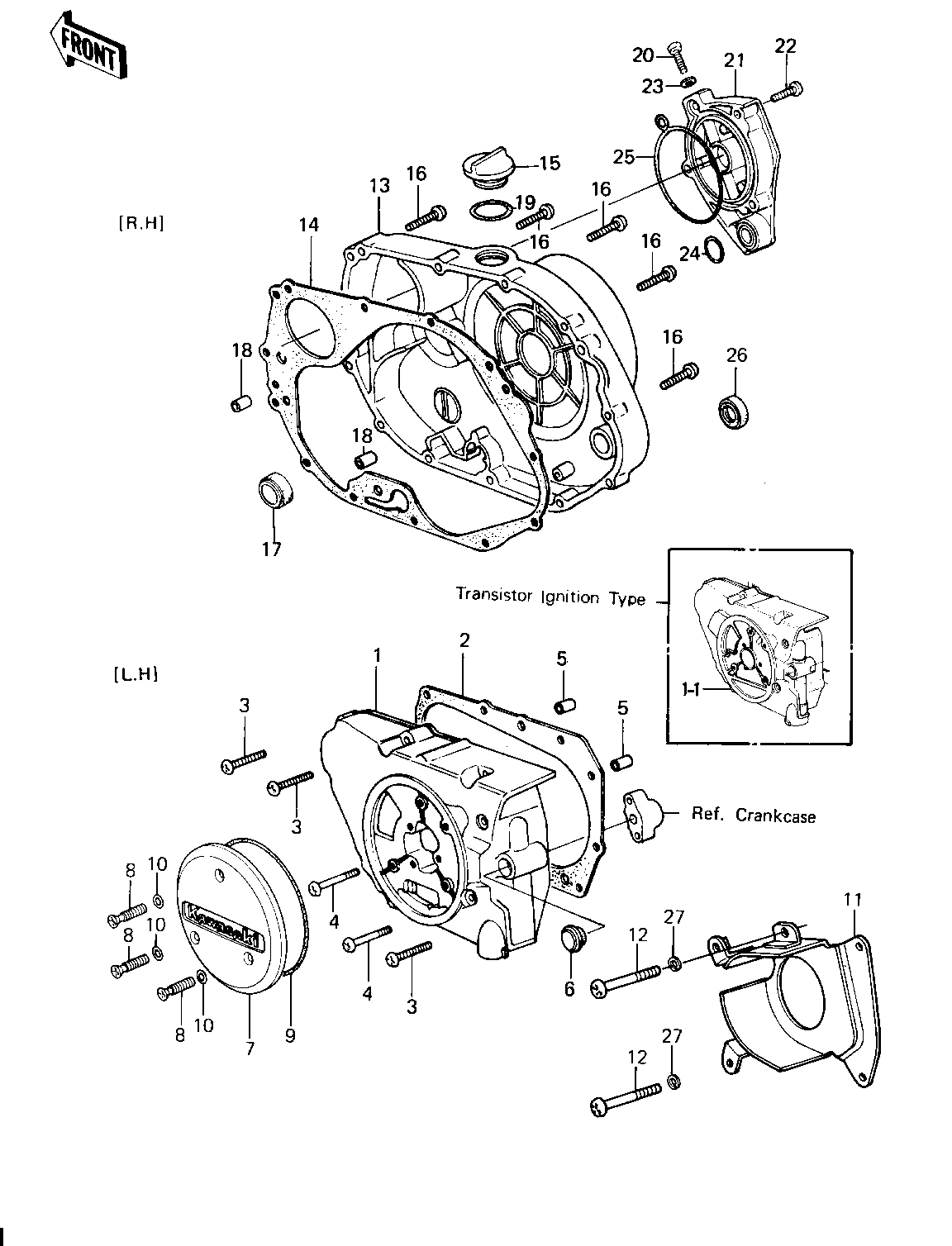

1981 KLT200 - ENGINE COVERS ('81-'82 KLT200-A1/A2/A3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER-GENERATOR | 1 | 14031-1054 | 1 | ||
| GASKET,L.H ENGINE COV | 2 | 14045-031 | 1 | ||
| SCREW PAN HEAD 6X30 | 3 | 220B0630 | 7 | ||
| SCREW PAN HEAD 6X55 | 4 | 220B0655 | 2 | ||
| PIN-DOWEL | 5 | 92042-007 | 2 | ||
| PLUG | 6 | 92066-065 | 1 | ||
| COVER,DYNAMO | 7 | 14025-1239 | 1 | ||
| SCREW OVL CNTSK 6X25 | 8 | 222E0625 | 3 | ||
| "O" RING,DYNAMO COVER | 9 | 92055-108 | 1 | ||
| "O" RING,DYNAMO COVER | 10 | 92055-109 | 3 | ||
| COVER-CHAIN | 11 | 14026-1033 | 1 | ||
| SCREW PAN HEAD 6X10 | 12 | 220B0610 | 2 | ||
| COVER,R.H.ENG,F.BLACK | 13 | 14032-1036 | 1 | ||
| GASKET,ENGINE COV,RH | 14 | 11009-1235 | 1 | ||
| PLUG,OIL FILLER | 15 | 16115-013 | 1 | ||
| SCREW PAN HEAD 6X30 | 16 | 220B0630 | 12 | ||
| GAUGE,OIL LEVEL | 17 | 52005-1009 | 1 | ||
| PIN-DOWEL | 18 | 92042-007 | 2 | ||
| "0" RING,31MM | 19 | 92055-049 | 1 | ||
| BOLT HEX HEAD 6X8 | 20 | 110B0608 | 1 | ||
| COVER,FILTER,F.BLACK | 21 | 14025-1102 | 1 | ||
| SCREW PAN HEAD 6X25 | 22 | 220B0625 | 3 | ||
| WASHER,PLAIN | 23 | 92022-304 | 1 | ||
| "O" RING | 24 | 92055-098 | 1 | ||
| "0" RING,FILTER COVER | 25 | 92055-1048 | 1 | ||
| OIL SEAL | 26 | 92050-078 | 1 | ||
| WASHER SPRING 6MM | 27 | 461F0600 | 2 |
| COVER-GENERATOR | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,L.H ENGINE COV | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X30 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X55 | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN-DOWEL | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLUG | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,DYNAMO | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW OVL CNTSK 6X25 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| "O" RING,DYNAMO COVER | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING,DYNAMO COVER | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| COVER-CHAIN | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X10 | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER,R.H.ENG,F.BLACK | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,ENGINE COV,RH | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG,OIL FILLER | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X30 | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| GAUGE,OIL LEVEL | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-DOWEL | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| "0" RING,31MM | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT HEX HEAD 6X8 | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FILTER,F.BLACK | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X25 | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING,FILTER COVER | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL | |
| REF # | 26 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 27 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
