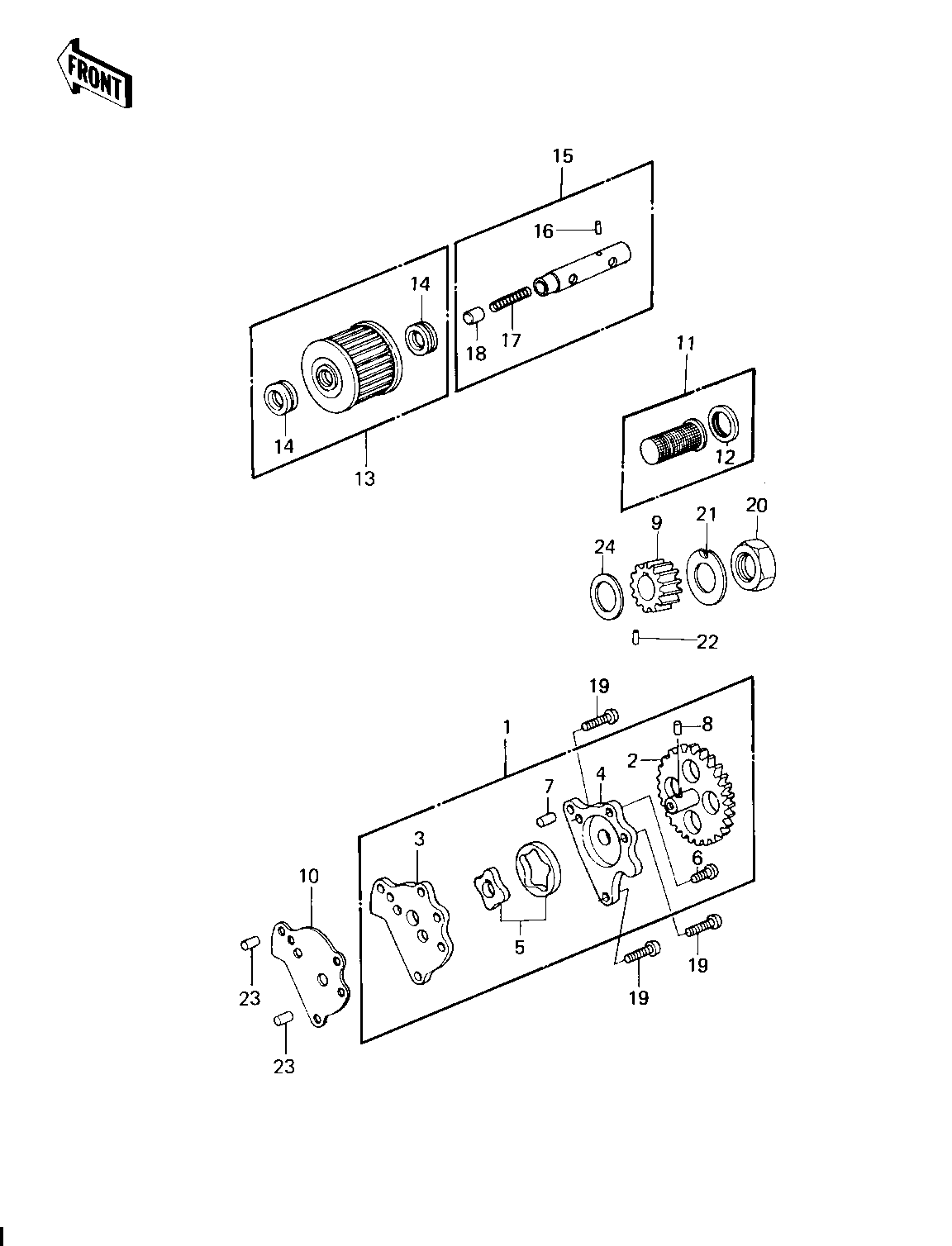

1981 KLT200 - OIL PUMP/OIL FILTER ('81-'82 KLT200-A1/A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| OIL PUMP ASSY | 1 | 16082-066 | 1 | -E/NO. 046625 | |
| PUMP ASSY OIL | 1 | 16082-1015 | 1 | E/NO. 046626 | |
| GEAR,OIL PUMP | 2 | 16085-026 | 1 | ||
| BODY,OIL PUMP | 3 | 16141-006 | 1 | ||
| COVER,OIL PUMP | 4 | 16142-006 | 1 | USE FOR 16082-066 | |
| COVER OIL PUMP | 4 | 16142-1006 | 1 | USE FOR 16082-1015 | |
| ROTOR,OIL PUMP | 5 | 16154-5001 | 1 | USE FOR 16082-066 | |
| ROTOR OIL PUMP | 5 | 16154-1008 | 1 | USE FOR 16082-1015 | |
| SCREW PAN HEAD 6X16 | 6 | 220B0616 | 1 | ||
| PIN,DOWEL,6X8 | 7 | 551A0608 | 1 | ||
| PIN,DOWEL | 8 | 92042-041 | 1 | ||
| GEAR,OIL PUMP | 9 | 16084-018 | 1 | ||
| GASKET,OIL PUMP | 10 | 11060-1115 | 1 | ||
| STRAINER ASSY,OIL | 11 | 16097-1001 | 1 | ||
| GROMMET,OIL STRAINER | 12 | 92071-100 | 1 | ||
| FILTER,OIL | 13 | 16099-004 | 1 | ||
| GROMMET,OIL FILTER | 14 | 92071-101 | 2 | ||
| BOLT ASSY,OIL FILTER | 15 | 16156-002 | 1 | ||
| SPRING PIN | 16 | 92043-123 | 1 | ||
| SPRING,PISTON | 17 | 92081-043 | 1 | ||
| PISTON | 18 | 92136-002 | 1 | ||
| SCREW PAN HEAD 6X25 | 19 | 220B0625 | 3 | ||
| NUT 16MM | 20 | 315B1600 | 1 | ||
| WASHER,LOCK,16M/M | 21 | 420B1611 | 1 | ||
| PIN DOWEL 3X12 | 22 | 551A0312 | 1 | ||
| PIN,DOWEL,6X8 | 23 | 551A0608 | 2 | ||
| WASHER-THRUST | 24 | 92022-170 | 1 |
