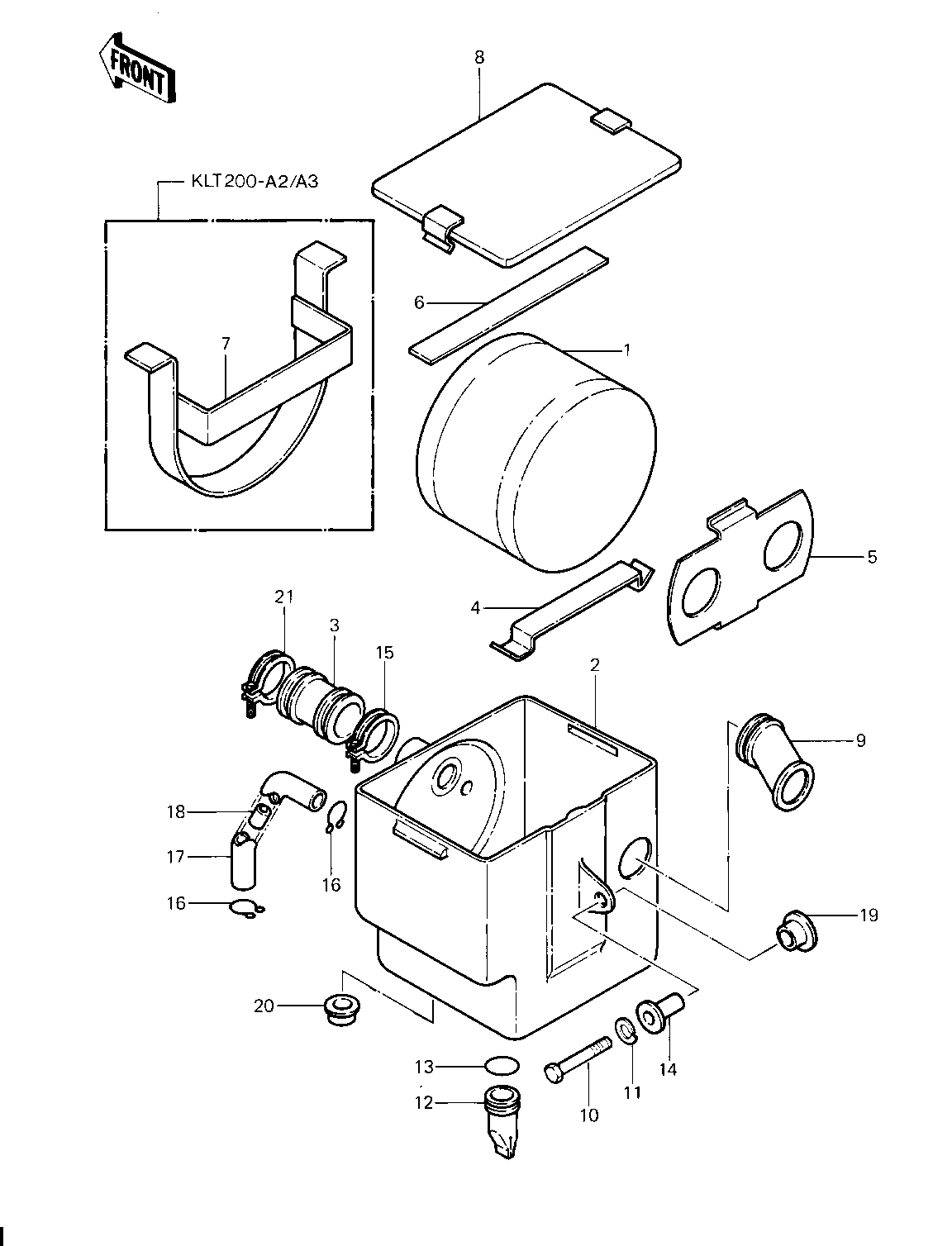

1981 KLT200 - AIR CLEANER ('81-'82 KLT200-A1/A2/A3)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
AIR FILTER | 1 | 11010-4003 | 1 | ||
CASE,AIR FILTER | 2 | 11011-4003 | 1 | ||
PIPE,INLET | 3 | 11015-065 | 1 | - F/NO. 52292 | |
HOLDER,AIR BOX | 4 | 13091-4005 | 1 | - F/NO. 510553 | |
HOLDER | 5 | 13091-4004 | 1 | - F/NO. 510553 | |
PLATE,AIR BOX | 6 | 32021-4029 | 1 | - F/NO. 510553 | |
COVER | 8 | 14025-4006 | 1 | ||
DUCT,AIR FILTER | 9 | 14073-1013 | 1 | ||
BOLT 6X22 | 10 | 112B0622 | 1 | ||
WASHER SPRING 6MM | 11 | 461F0600 | 1 | ||
BOOT | 12 | 49006-1012 | 1 | ||
"0" RING,20MM | 13 | 670B2020 | 1 | ||
COLLAR | 14 | 92027-194 | 1 | ||
CLAMP,MUFFLER | 15 | 92037-177 | 1 | ||
CLAMP,BREATHER TUBE | 16 | 92037-213 | 2 | ||
TUBE,BREATHER | 17 | 92059-1154 | 1 | ||
BREATHER VALVE | 18 | 92062-1002 | 1 | ||
DAMPER RUBBER | 19 | 92075-112 | 1 | ||
DAMPER RUBBER,SIG LM | 20 | 92075-158 | 1 | ||
CLAMP,MUFFLER | 21 | 92037-177 | 1 | - F/NO. 522924 |
AIR FILTER | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE,AIR FILTER | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE,INLET | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | - F/NO. 52292 |
HOLDER,AIR BOX | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | - F/NO. 510553 |
HOLDER | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | - F/NO. 510553 |
PLATE,AIR BOX | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | - F/NO. 510553 |
COVER | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DUCT,AIR FILTER | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT 6X22 | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER SPRING 6MM | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOOT | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
"0" RING,20MM | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,MUFFLER | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,BREATHER TUBE | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TUBE,BREATHER | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BREATHER VALVE | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER RUBBER | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER RUBBER,SIG LM | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,MUFFLER | |
REF # | 21 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | - F/NO. 522924 |
