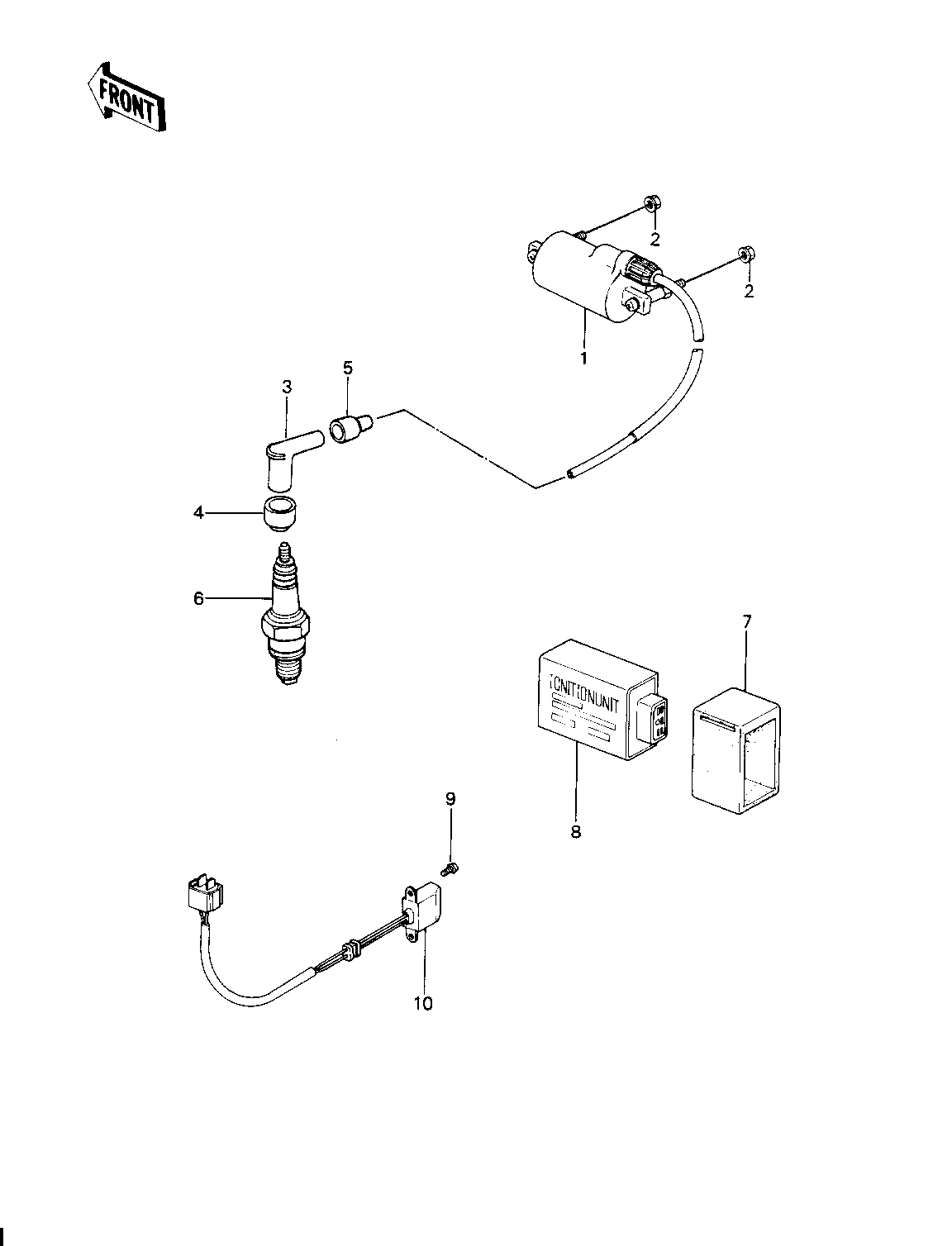

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COIL IGNITION 1 21121-1049 1
NUT-6MM 2 92015-1078 2
CAP-SPARK PLUG,RTFM20 3 21130-1007 1
GROMMET-PLUG CAP,A 4 21131-004 1
GROMMET,SPARK PLG CAP 5 21132-005 1
SPARK PLUG B7ES 6 B7ES 1
SPARK PLUG BR7ES (Canada) 6 92070-1035 1 CANADA
HOLDER 7 13091-1095 1
IGNITER 8 21119-1025 1
SCREW PAN HEAD 5X8 9 220B0508 2
COIL-PULSING 10 59026-1013 1
