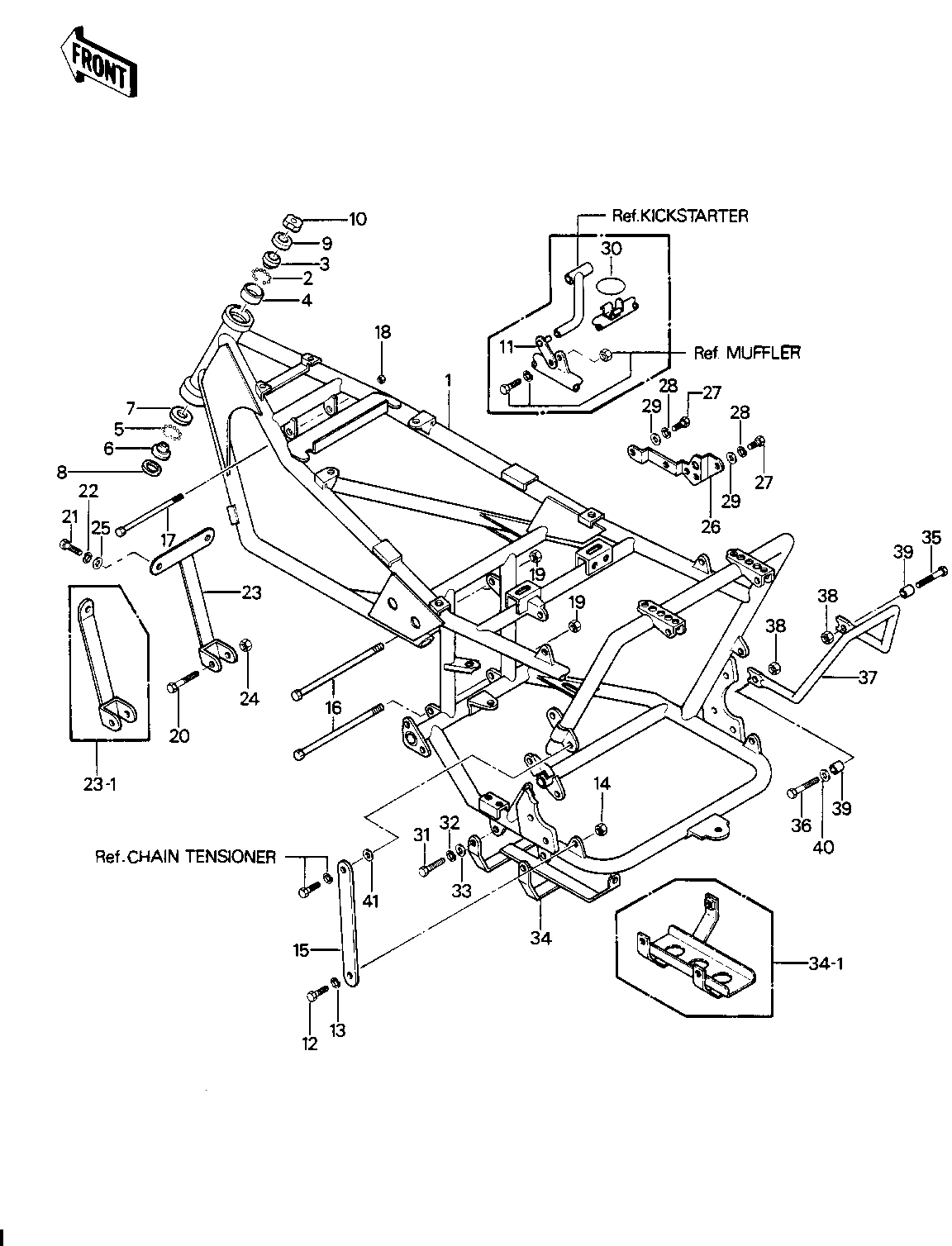

1982 KLT200 - FRAME/FRAME FITTINGS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FRAME 1 32002-4008 1
BALL STEEL 3/16' 2 600A0600 23
CONE,STRG STM BRG,UP 3 92047-014 1
RACE,STRG STM BEARING 4 92048-009 1
BALL STEEL 1/4' 5 600A0800 19
CONE STERNG BERG LOW 6 92047-010 1
RACE STEERING BEARING 7 92048-005 1
SEAL,STEERING STEM 8 44010-027 1
CAP,STEERING STEM 9 46098-012 1
NUT,STEERING STEM 10 92015-4007 1
HOLDER,KICK STARTER 11 13091-4009 1
BOLT-SMALL-UPSET,8X18 12 115G0818 1
WASHER SPRING 8MM 13 461F0800 1
NUT,8M/M 14 317B0800 1
BRACKET,FRAME 15 32021-4030 1
BOLT, FLANGED, 10X110 16 92001-1602 2
BOLT-FLANGE 17 92001-1582 1
NUT,LOCK,8MM 18 92015-1124 1
NUT,LOCK,10MM 19 92019-021 2
BOLT-SMALL-UPSET 20 115B0865 1
BOLT,8X20 21 115G0820 1
WASHER SPRING 8MM 22 461F0800 1
BRACKET,ENGINE 23-1 32029-4018 1
NUT,LOCK,8MM 24 92015-1124 1
WASHER,8X26X2.3 25 92022-1564 1
BRACKET BASE 26 11034-4050 1
BOLT-UPSET,6X12 27 112G0612 2
WASHER SPRING 6MM 28 461F0600 2
WASHER PLAIN 6MM 29 411B0600 2
"0" RING,65MM 30 671B2565 1
BOLT,8X20 31 115G0820 4 - F/NO. 522924
BOLT,8X20 31 115G0820 3 F/NO. 522925 -
WASHER SPRING 8MM 32 461F0800 4 - F/NO. 522924
WASHER SPRING 8MM 32 461F0800 3 F/NO. 522925 -
92022-101 (Canada) 33 92022-092 4 - F/NO. 522924
92022-101 (Canada) 33 92022-092 3 F/NO. 522925 -
GUARD-CHAIN CASE 34 55020-4011 1 - F/NO. 522924
GUARD 34-1 55020-4016 1 F/NO. 522925 -
BOLT-SMALL-UPSET 35 115B0865 1
BOLT-SMALL-UPSET,8X55 36 115G0855 1
GUARD,REAR STAY 37 55020-4014 1
NUT,LOCK,8MM 38 92015-1124 2
COLLAR,REAR STAY 39 92027-4014 2
WASHER SEAL PLATE 40 92022-101 1
WASHER,12.4X28X4.5 41 92022-1196 1
