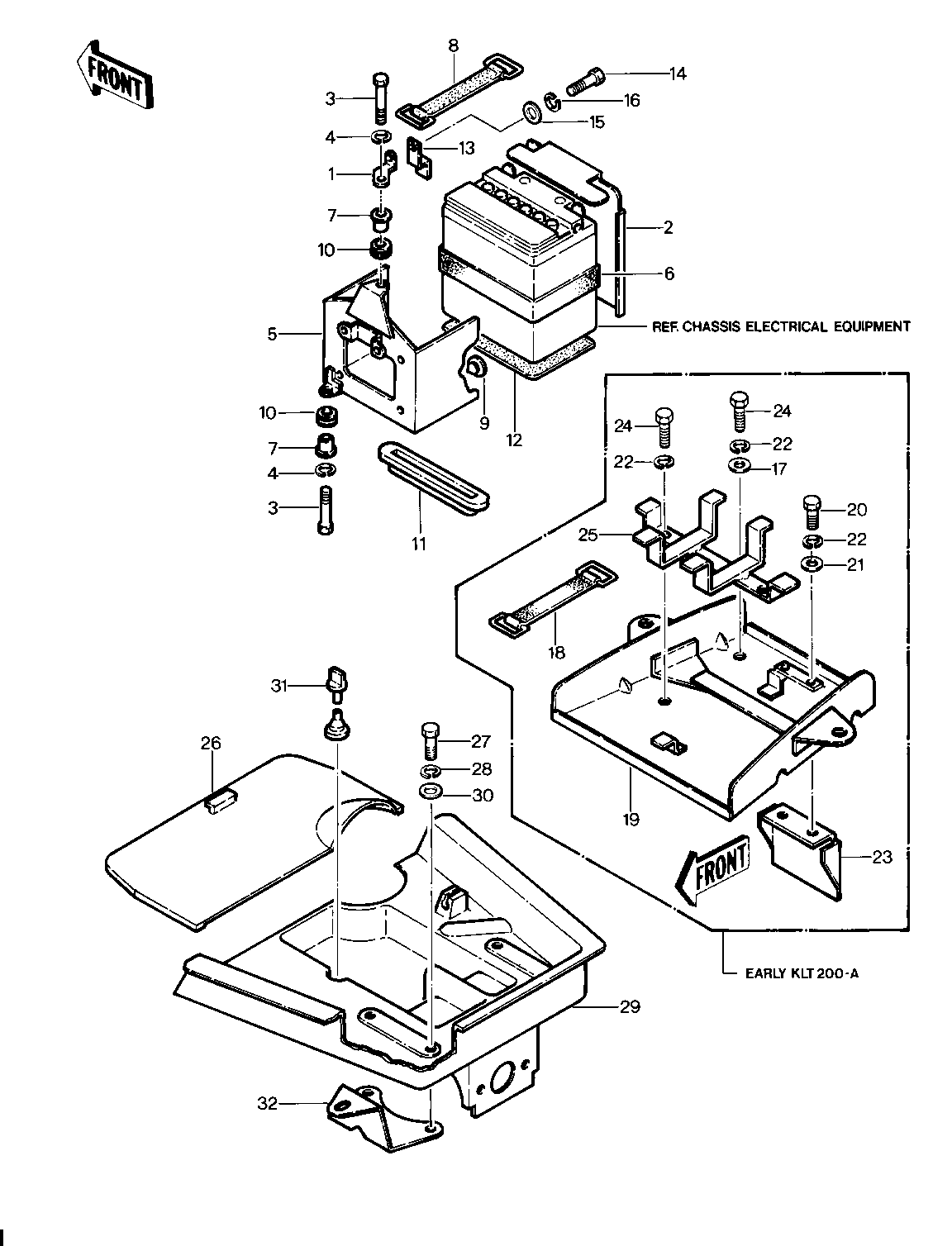

1981 KLT200 - BATTERY CASE/TOOL CASE ('81-'82 KLT200-A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRAKET | 1 | 11034-4051 | 1 | ||
| COVER | 2 | 14025-4007 | 1 | ||
| BOLT-UPSET,6X20 | 3 | 112G0620 | 2 | ||
| WASHER SPRING 6MM | 4 | 461F0600 | 2 | ||
| CASE-BATTERY | 5 | 32097-4002 | 1 | ||
| MAT-BATTERY SIDE | 6 | 32103-023 | 1 | ||
| COLLAR | 7 | 92027-1045 | 2 | ||
| BAND BATTERY | 8 | 92072-006 | 1 | ||
| DAMPER RUBBER | 9 | 92075-078 | 4 | ||
| DAMPER RUBBER | 10 | 92075-277 | 2 | ||
| DAMPER RUBBER | 11 | 92075-280 | 1 | ||
| DAMPER,BATTRY CASE | 12 | 92075-4019 | 1 | ||
| HOLDER-BATTERY | 13 | 13091-4006 | 1 | ||
| SCREW PAN HEAD 6X16 | 14 | 220B0616 | 1 | ||
| WASHER PLAIN 6MM | 15 | 411B0600 | 1 | ||
| WASHER SPRING 6MM | 16 | 461F0600 | 1 | ||
| WASHER 6.5X20X1.6T | 17 | 92022-125 | 2 | - F/NO. 510553 | |
| BAND BATTERY | 18 | 92072-006 | 1 | - F/NO. 510553 | |
| CASE-TOOL | 19 | 32098-4001 | 1 | - F/NO. 510553 | |
| BOLT-UPSET,6X12 | 20 | 112G0612 | 2 | - F/NO. 510553 | |
| WASHER PLAIN 6MM | 21 | 410B0600 | 2 | - F/NO. 510553 | |
| WASHER SPRING 6MM | 22 | 461F0600 | 6 | - F/NO. 510553 | |
| BRKT,TAIL LAMP | 23 | 23036-4002 | 1 | - F/NO. 510553 | |
| BOLT-UPSET 6X14 | 24 | 112B0614 | 4 | - F/NO. 510553 | |
| HOLDER, | 25 | 13091-4008 | 1 |
| BRAKET | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X20 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CASE-BATTERY | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MAT-BATTERY SIDE | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND BATTERY | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,BATTRY CASE | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-BATTERY | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X16 | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER 6.5X20X1.6T | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | - F/NO. 510553 |
| BAND BATTERY | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | - F/NO. 510553 |
| CASE-TOOL | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | - F/NO. 510553 |
| BOLT-UPSET,6X12 | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | - F/NO. 510553 |
| WASHER PLAIN 6MM | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | - F/NO. 510553 |
| WASHER SPRING 6MM | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | - F/NO. 510553 |
| BRKT,TAIL LAMP | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | - F/NO. 510553 |
| BOLT-UPSET 6X14 | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | - F/NO. 510553 |
| HOLDER, | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
