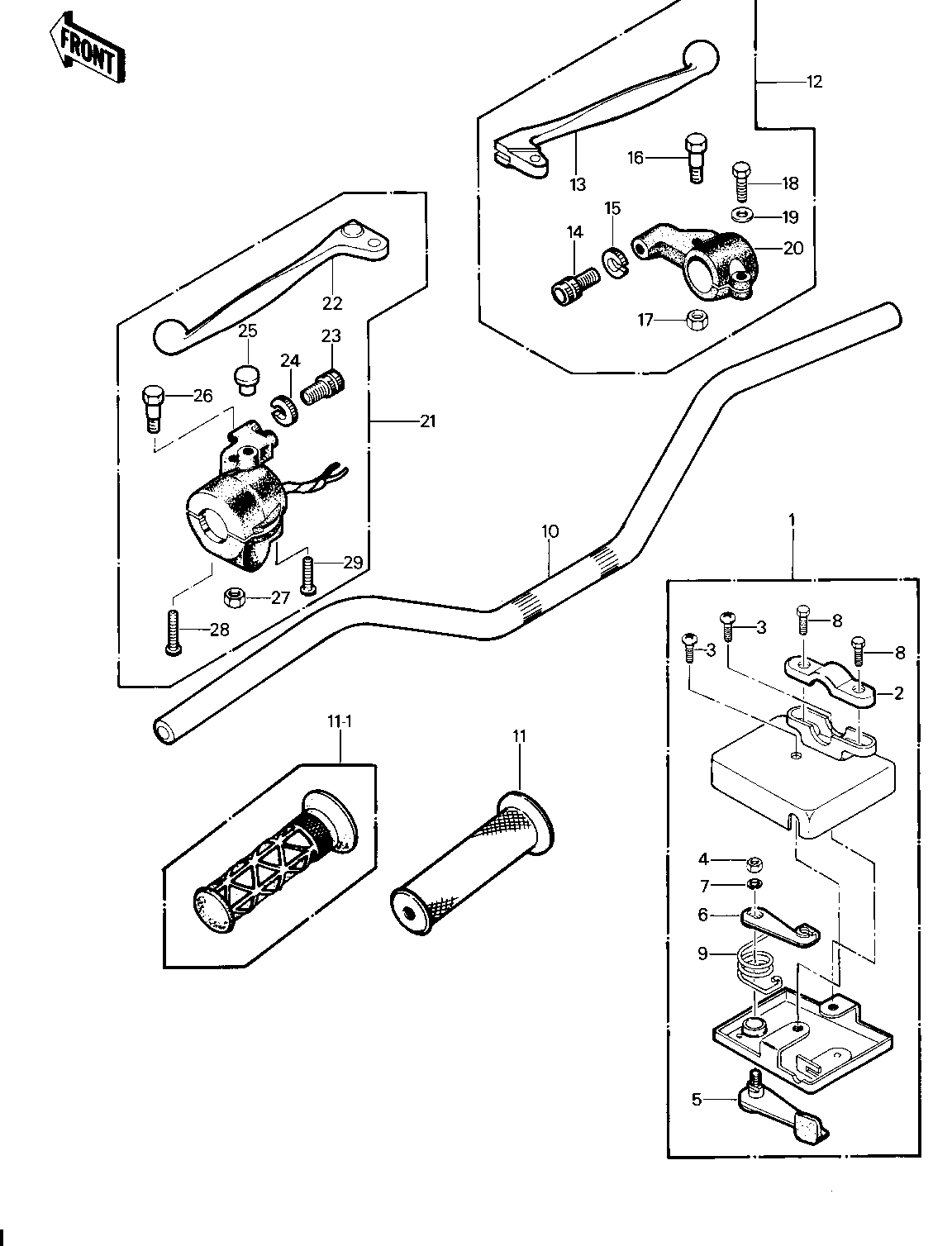

1981 KLT200 - HANDLEBAR ('81-'82 KLT200-A1/A2/A3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LEVER-ASSY-THROTTLE | 1 | 39074-4001 | 1 | ||
| HOLDER,THROTTLE LEVER | 2 | 13091-4002 | 1 | ||
| SCREW PAN HEAD 6X10 | 3 | 220B0610 | 2 | ||
| NUT 6MM | 4 | 311B0600 | 1 | ||
| LEVER THROTTLE OUTER | 5 | 39075-4001 | 1 | ||
| LEVER THROTTLE INNER | 6 | 39075-4002 | 1 | ||
| WASHER SPRING 6MM | 7 | 461F0600 | 1 | ||
| BOLT HEX HEAD | 8 | 92001-4011 | 2 | ||
| SPRING RETURN | 9 | 92081-4007 | 1 | ||
| HANDLEBAR | 10 | 46003-4003 | 1 | ||
| RUBBER,L.H GRIP | 11 | 46075-020 | 2 | ||
| LEVER FRONT BRAKE | 13 | 46058-004 | 1 | ||
| SCREW,CABLE ADJUST | 14 | 46055-010 | 1 | ||
| NUT-LOCK | 15 | 46056-005 | 1 | ||
| BOLT,HEX HEAD,5X22 | 16 | 92007-046 | 1 | ||
| NUT-LOCK,5MM | 17 | 92019-014 | 1 | ||
| BOLT HEX HEAD 6X25 | 18 | 110N0625 | 1 | ||
| WASHER,PLAIN,6MM | 19 | 410D0600 | 1 | ||
| HOLDER,FR LEVER,F.BLK | 20 | 46060-011-21 | 1 | ||
| HOUSING-ASSY-CONTROL | 21 | 46091-4001 | 1 | ||
| LEVER,CLUTCH | 22 | 46092-024 | 1 | ||
| SCREW CABLE ADJUST | 23 | 46055-003 | 1 | ||
| NUT-LOCK | 24 | 46056-005 | 1 | ||
| PLUG,9.5X8 | 25 | 92066-1077 | 1 | ||
| BOLT,HEX HEAD,5X22 | 26 | 92007-046 | 1 | ||
| NUT-LOCK,5MM | 27 | 92019-014 | 1 | ||
| SCREW,PAN HEAD,5X38 | 28 | 92009-1018 | 1 | ||
| SCREW-PAN-CROS,5X25 | 29 | 220B0525 | 1 |
